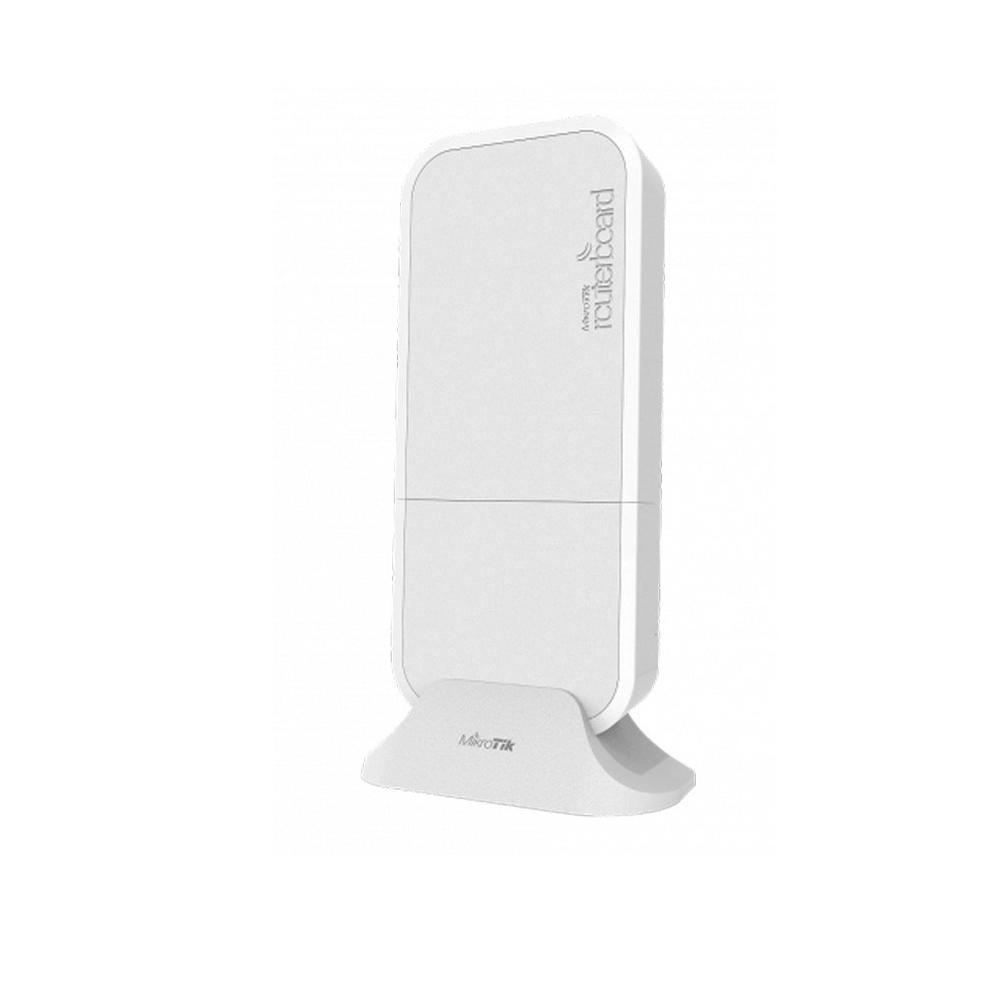

wAP LTE Kit (International Version)
The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.
RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions 185 x 85 x 30 mm
- License level 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -40°C .. +60°C tested
- Max Power consumption 8W
- PoE in Passive PoE
- PoE in input Voltage 9-30 V
- Number of DC inputs 3 (Automotive, DC jack, PoE-IN)
- DC jack input Voltage 9-30 V
- Automotive input Voltage 9-30 V
- 2G Category Class12
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model QCA9531
- 10/100 Ethernet ports 1
- Number of SIM slots 1 Modem (Mini SIM)
- MiniPCI-e slots 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Package contents:
- 1x 24V 0.8A power adapter
- 1x PoE injector
- 1x Plastic zip tie
- 1x 0.35m 4pin Automotive adapter cable
- 1x wAP mount bracket
- 1x wAP desktop stand
