wAP LTE Kit-US

Mikrotik


Mikrotik wireless access point wAP LTE Kit 802.11b/g/n 3G and 4G connectivity US Version



Product Highlights
  • The wAP LTE Kit-US is a small weatherproof wireless access point with a built in cellular modem that supports 3G and 4G (LTE) connectivity
  • Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device
  • LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage
  • Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train
  • RBwAPR-2nD&R11e-LTE-US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in United States, Canada and Latin America
  • Model#: wAP LTE Kit-US

    Sku: IT2566



    MSRP: $119.99


    Out of stock

    Model: wAP LTE Kit-US

    Mikrotik wireless access point wAP LTE Kit weatherproof 802.11b/g/n supports 3G and 4G connectivity with United States LTE modem

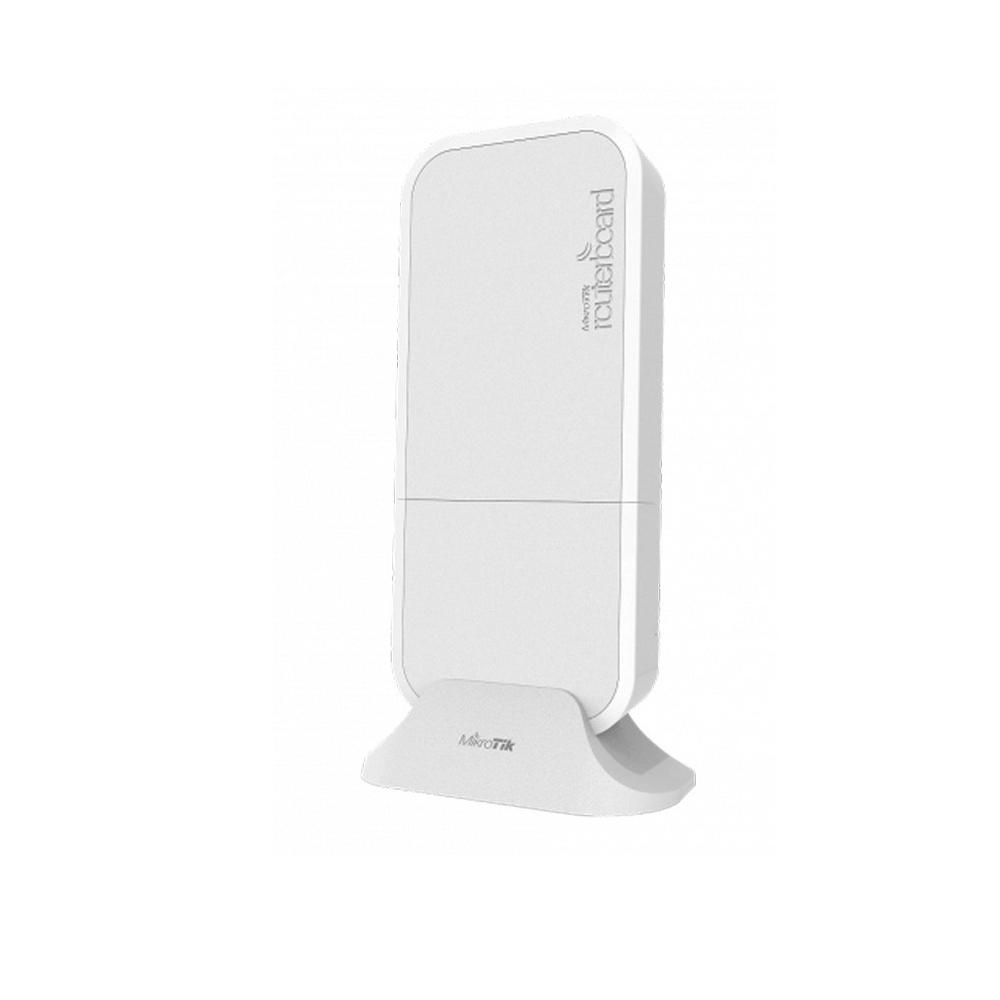

    The wAP LTE Kit US is a small weatherproof wireless access point with a built in cellular modem that supports 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

    LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.

    The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

    RBwAPR-2nD&R11e-LTE US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in United States, Canada and Latin America.

    • Architecture MIPSBE
    • CPU  QCA9531
    • CPU core count  1
    • CPU nominal frequency 650 MHz
    • Dimensions  185 x 85 x 30 mm
    • License level  4
    • Operating System  RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C .. +60°C tested
    • Max Power consumption    8W
    • PoE in    Passive PoE
    • PoE in input Voltage    9-30 V
    • Number of DC inputs    3 (Automotive, DC jack, PoE-IN)
    • DC jack input Voltage    9-30 V
    • Automotive input Voltage    9-30 V
    • 3G Category    R8 (42.2Mbps Downlink, 5.76Mbps Uplink) / R7 (21Mbps Downlinks, 5.76Mbps Uplink)
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz)
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    2
    • Wireless 2.4 GHz chip model    QCA9531
    • 10/100 Ethernet ports    1
    • Number of SIM slots    1 Modem (Mini SIM)
    • MiniPCI-e slots    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Package contents:
    • 1x 24V 0.8A power adapter
    • 1x PoE injector
    • 1x Plastic zip tie
    • 1x 0.35m 4pin Automotive adapter cable
    • 1x wAP mount bracket
    • 1x wAP desktop stand
