MikroTik RB921GS-5HPacD-19S-US 5GHz 19dBi Sector 11ac 2x2 US VERSION
Product Highlights
Model#: RB921GS-5HPacD-19S-US
Sku: IT2568
Out of stock
Your Price: N/A
MODEL: RB921GS-5HPacD-19S-US
US Version

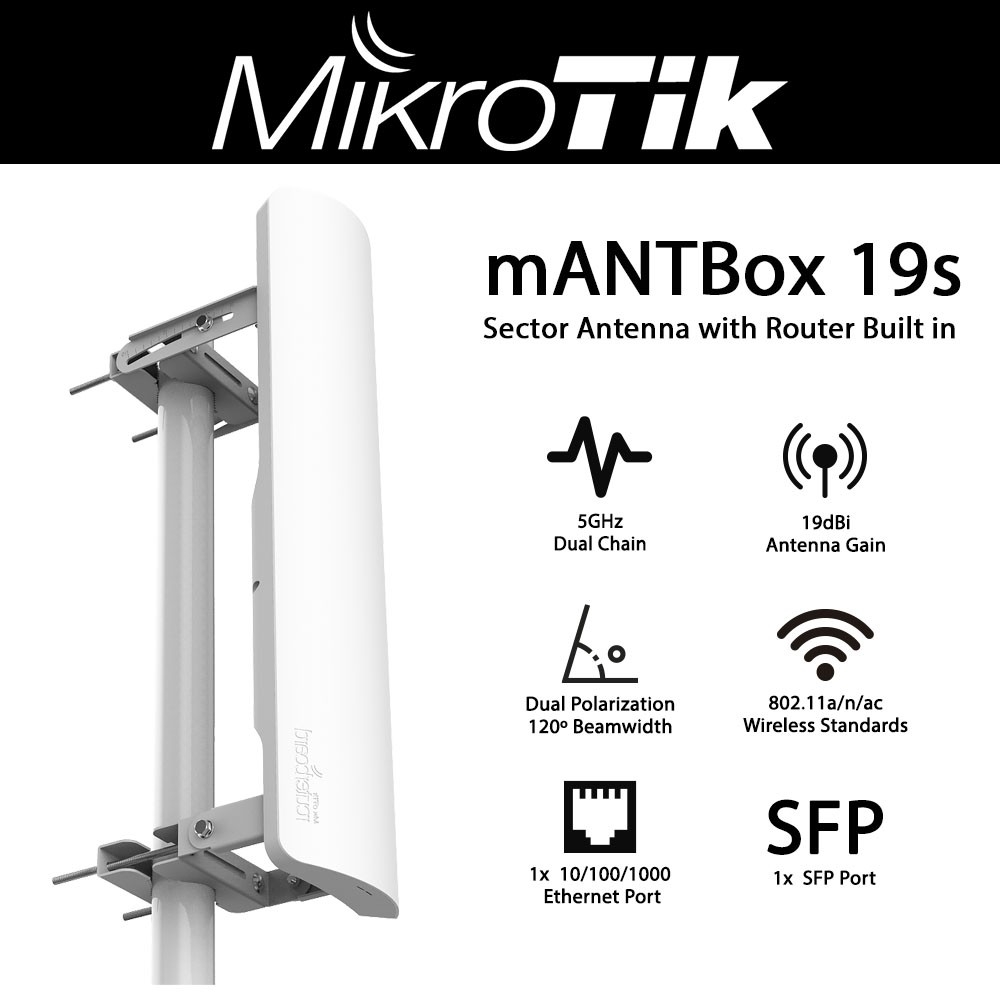

The mANTBox (RB921GS-5HPacD-19S) is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720 MHz CPU and has a built in 802.11ac/a/n wireless device with up to 31 dBm output power.
The mANTBox19s comes with metallic U bolt type mounts.
- 5.17 - 5.825 GHz
- 19 dBi
- Vertical and horizontal polarization
- (1) 10/100/1000 Ethernet ports
- (1) SFP cage
- RouterOS
- L4
- 28V 0.8A Power adapter
- quickMOUNT PRO
- CPU QCA9557
- CPU core count 1
- CPU nominal frequency 720 MHz
- Dimensions 152 x 598 x 78 mm
- License level 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 128 MB
- Storage type NAND
- Tested ambient temperature -40°C to 70°C
- PoE in Passive PoE
- PoE in input Voltage 12-28 V
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 8-30 V
- Max power consumption 13 W
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 19
- Wireless 5 GHz chip model QCA9892
- Wireless 5 GHz generation Wi-Fi 5
- 10/100/1000 Ethernet ports 1
- SFP ports 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
