RB760iGS

Mikrotik


MikroTik RB760iGS hEX 880MHz Dual Core 256MB 5xGb PoE L4


Product Highlights
  • 880 MHz CPU, 256 MB RAM
  • (5) Gigabit, (1) SFP
  • RouterOS L4

    • Model#: RB760iGS

    Sku: IT2570



    MSRP: $89.99

    In Stock

    Your Price: $89.99






    MODEL: RB760iGS

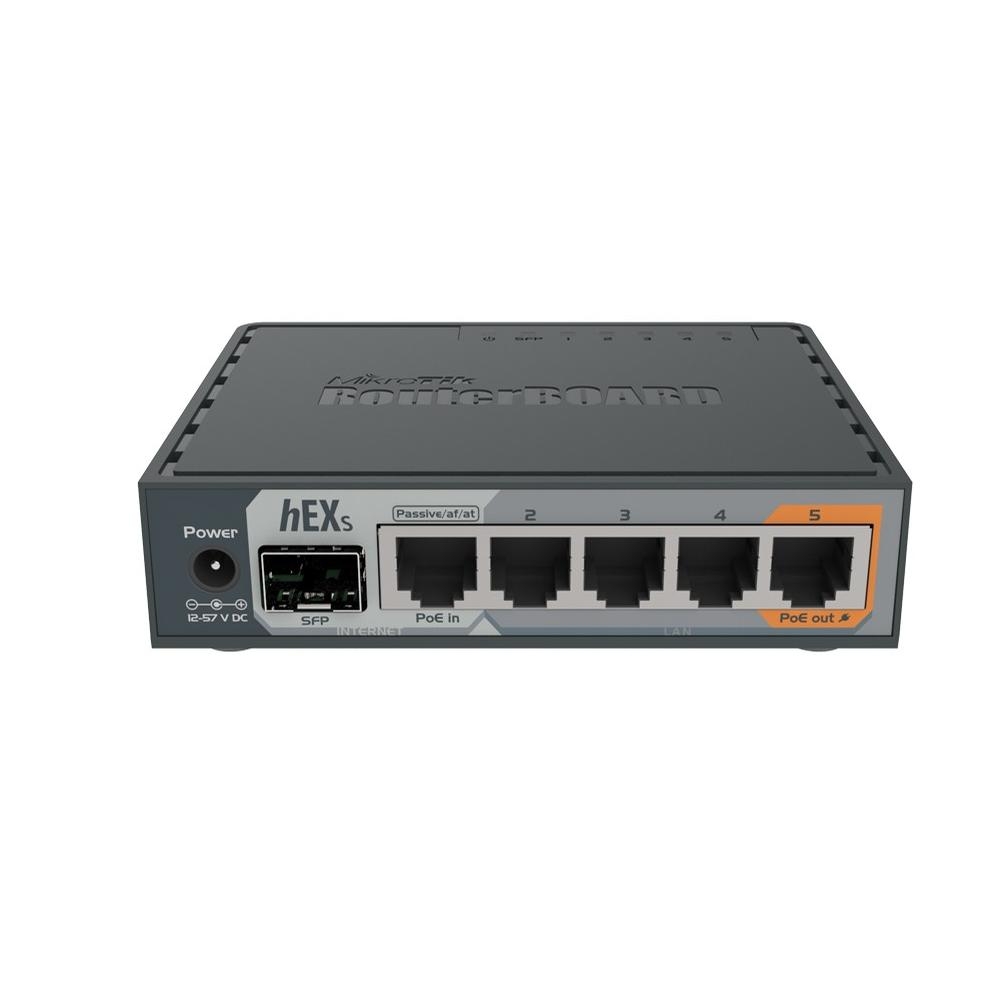

    hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
    It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
    IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

    Specifications

    • Architecture    MMIPS
    • CPU    MT7621A
    • CPU core count    2
    • CPU nominal frequency    880 MHz
    • CPU Threads count    4
    • Dimensions    113 x 89 x 28 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    256 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C .. +70°C

    Powering

    • Max Power consumption    11W
    • PoE in    802.3af/at
    • PoE out    Passive PoE up to 57V
    • PoE in input Voltage    12-57 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    12-57 V

    Ethernet

    • 10/100/1000 Ethernet ports    5

    Fiber

    • SFP ports    1

    Peripherals

    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes

    Datasheet

    PDF File MikroTik RB760iGS hEX 880MHz Dual Core 256MB 5xGb PoE L4
