CRS328-4C-20S-4S+RM

Mikrotik

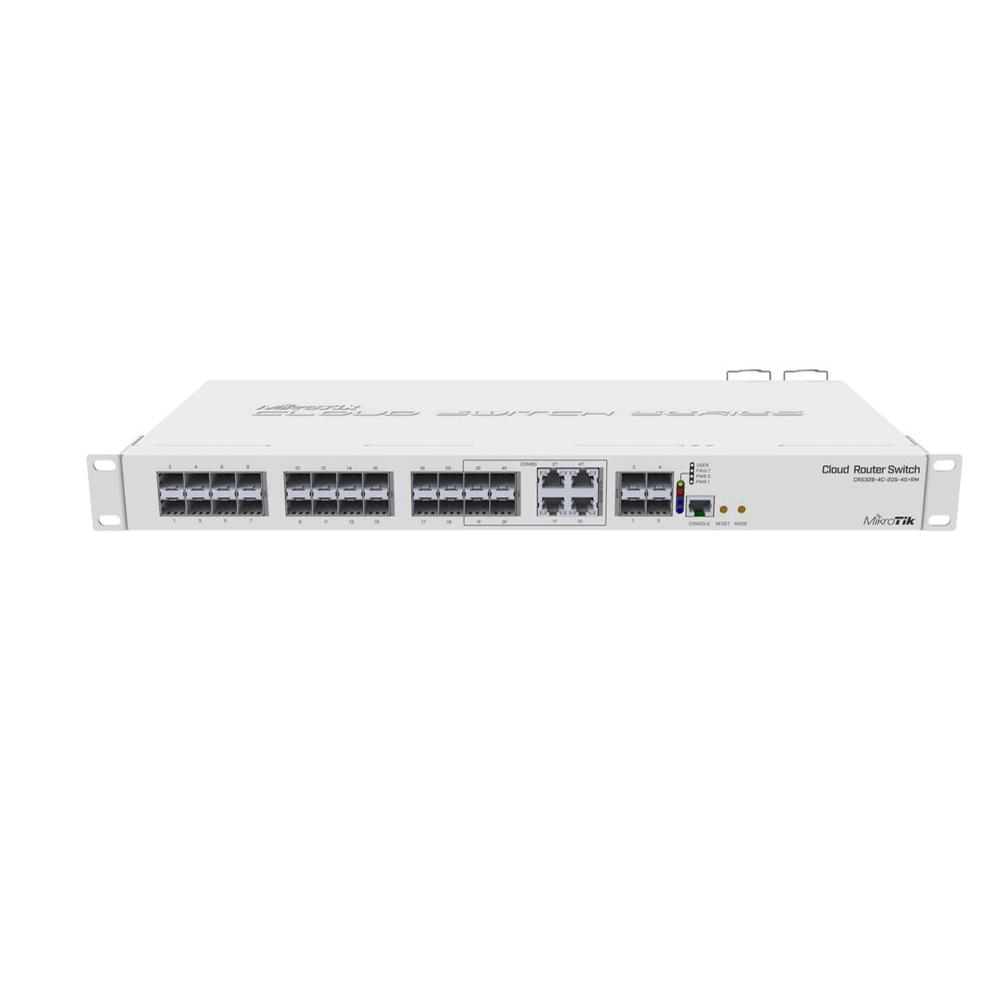

Mikrotik CRS328-4C-20S-4S+RM Smart Switch, 20 x SFP cages, 4 x SFP+ cages, 4 x Combo ports


Product Highlights
  • The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group
  • It has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group
  • These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active
  • The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands
  • CRS328-4C-20S-4S+RM has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS

    • Model#: CRS328-4C-20S-4S+RM

    Sku: IT2571



    MSRP: $419.99


    Out of stock

    The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

    The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

    The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

    Specifications

    • Architecture    ARM 32bit
    • CPU    98DX3236
    • CPU core count    1
    • CPU nominal frequency    800 MHz
    • Dimensions    443 x 200 x 44 mm
    • License level    5
    • Operating System    RouterOS / SwitchOS
    • Size of RAM    512 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -20 + 60 degrees C

    Powering

    • Max Power consumption    43W
    • Number of AC inputs    2
    • AC input range    100-240

    Ethernet

    • Ethernet Combo ports    4

    Fiber

    • SFP ports    20
    • SFP+ ports    4

    Peripherals

    • Serial port    RJ45

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
