RB260GSP-BD6

Mikrotik

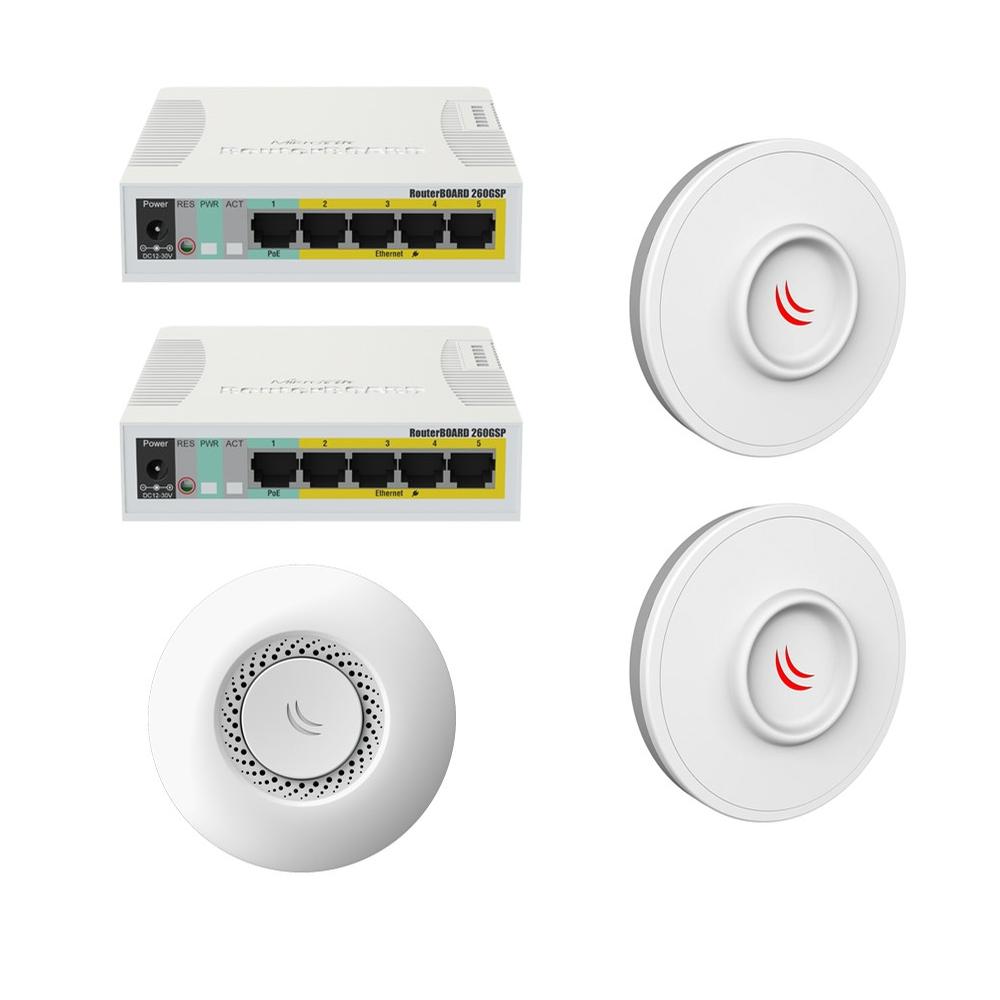

Mikrotik RB260GSP CSS106-1G-4P-1S PoE switch x2 w/ cAP-2nD ceiling AP x2 DISC Lite5 ac 21dBi x2


Model#: RB260GSP-BD6

Sku: IT2573

Out of stock

RB260GSP (CSS106-1G-4P-1S)
The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

cAP-2nD
RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine. Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

DISC Lite5 ac
The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series. The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.

RB260GSP (CSS106-1G-4P-1S)

Specifications

  • Architecture    RISC
  • Dimensions    113x139x28mm
  • Operating System    MikroTik SwOS
  • Storage size    128 KB
  • Storage type    FLASH
  • Tested ambient temperature    -25? to +65?

Powering

  • Max Power consumption    5W
  • PoE in    Passive PoE
  • PoE out    Passive PoE
  • PoE in input Voltage    11-30 V
  • Number of DC inputs    2 (DC jack, PoE-IN)
  • DC jack input Voltage    11-30 V

Ethernet

  • 10/100/1000 Ethernet ports    5

Fiber

  • SFP DDMI    Yes
  • SFP ports    1

Other

  • PCB temperature monitor    Yes
  • Voltage Monitor    Yes


cAP-2nD

Specifications

  • Architecture    MIPSBE
  • CPU    QCA9533
  • CPU core count    1
  • CPU nominal frequency    650 MHz
  • Dimensions    185mm diameter, 31mm height
  • License level    4
  • Operating System    RouterOS
  • Size of RAM    64 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • Tested ambient temperature    -40C to +70C

Powering

  • Max Power consumption    4W
  • PoE in    802.3af/at
  • PoE in input Voltage    11-57 V
  • Number of DC inputs    1 (PoE-IN)

Wireless

  • Wireless 2.4 GHz number of chains    2
  • Wireless 2.4 GHz standards    802.11b/g/n
  • Antenna gain dBi for 2.4 GHz    2
  • Wireless 2.4 GHz chip model    QCA9533

Ethernet

  • 10/100 Ethernet ports    1

DISC Lite5 ac

Specifications

  • Architecture    ARM 32bit
  • CPU    IPQ-4018
  • CPU core count    4
  • CPU nominal frequency    716 MHz
  • Dimensions     265mm, height: 80mm
  • License level    3
  • Operating System    RouterOS
  • Size of RAM    256 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • Tested ambient temperature    -40°C .. +70°C

Powering

  • Max Power consumption    7W
  • PoE in    Passive PoE
  • PoE in input Voltage    10-30 V
  • Number of DC inputs    1 (PoE-IN)

Wireless

  • Wireless 5 GHz number of chains    2
  • Wireless 5 GHz standards    802.11a/n/ac
  • Antenna gain dBi for 5 GHz    21
  • Wireless 5 GHz chip model    IPQ-4018

Ethernet

  • 10/100/1000 Ethernet ports    1
