SXTsq Lite5 2PK

Mikrotik

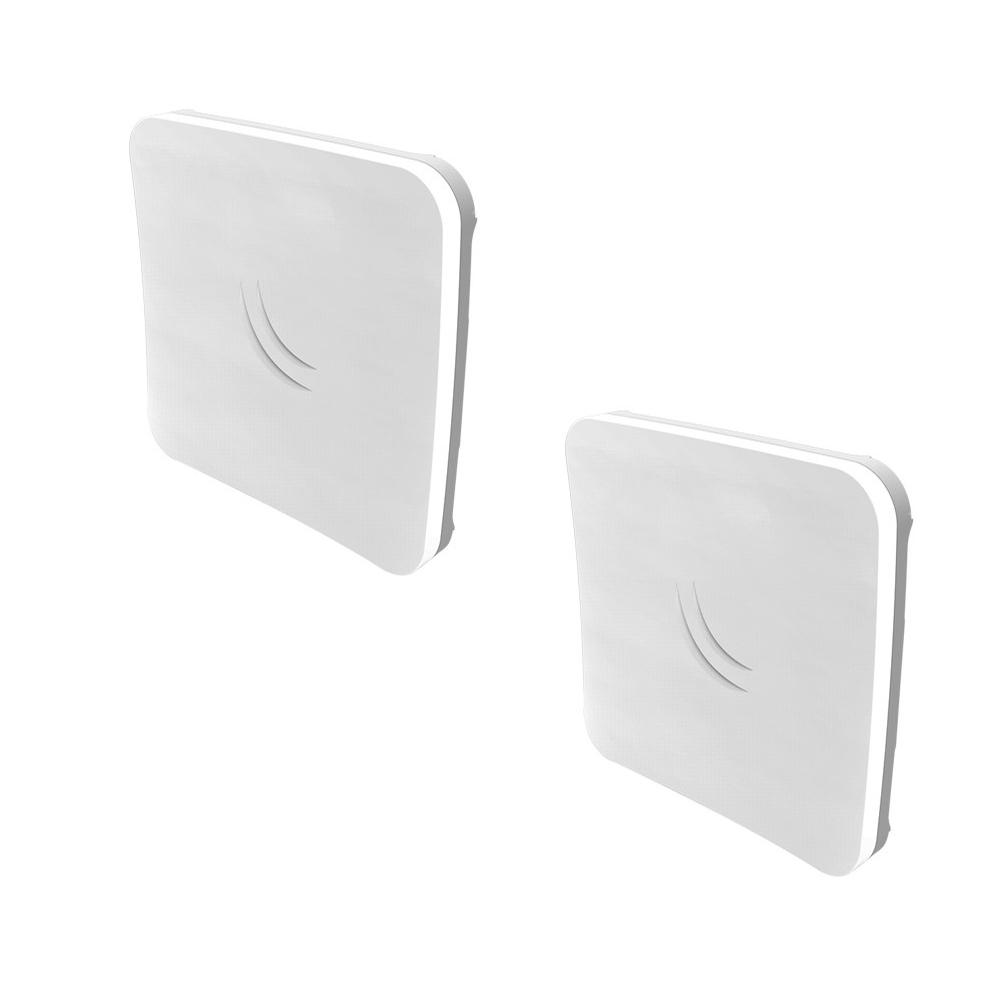

Mikrotik 2-pack SXTsq Lite5 5GHz Dual Chain CPE/Backbone PtP w/ Integrated 16dBi Antenna RBSXTsq5nD


Product Highlights
  • The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna
  • Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount
  • The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner
  • The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle
  • The device includes one 10/100 Mbit ethernet port. There is also an easily accessilble grounding connection to protect it against lightning

    • Model#: SXTsq Lite5 2PK

    Sku: IT2582

    Out of stock

    The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).

    The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).

    Specifications

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    129x129x34mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C .. +70°C

    Powering

    • Max Power consumption    6W
    • PoE in    Passive PoE
    • PoE in input Voltage    10-30 V
    • Number of DC inputs    1 (PoE-IN)

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    16
    • Wireless 5 GHz chip model    AR9344

    Ethernet

    • 10/100 Ethernet ports    1
