OmniTik 5 PoE ac 2PK

Mikrotik

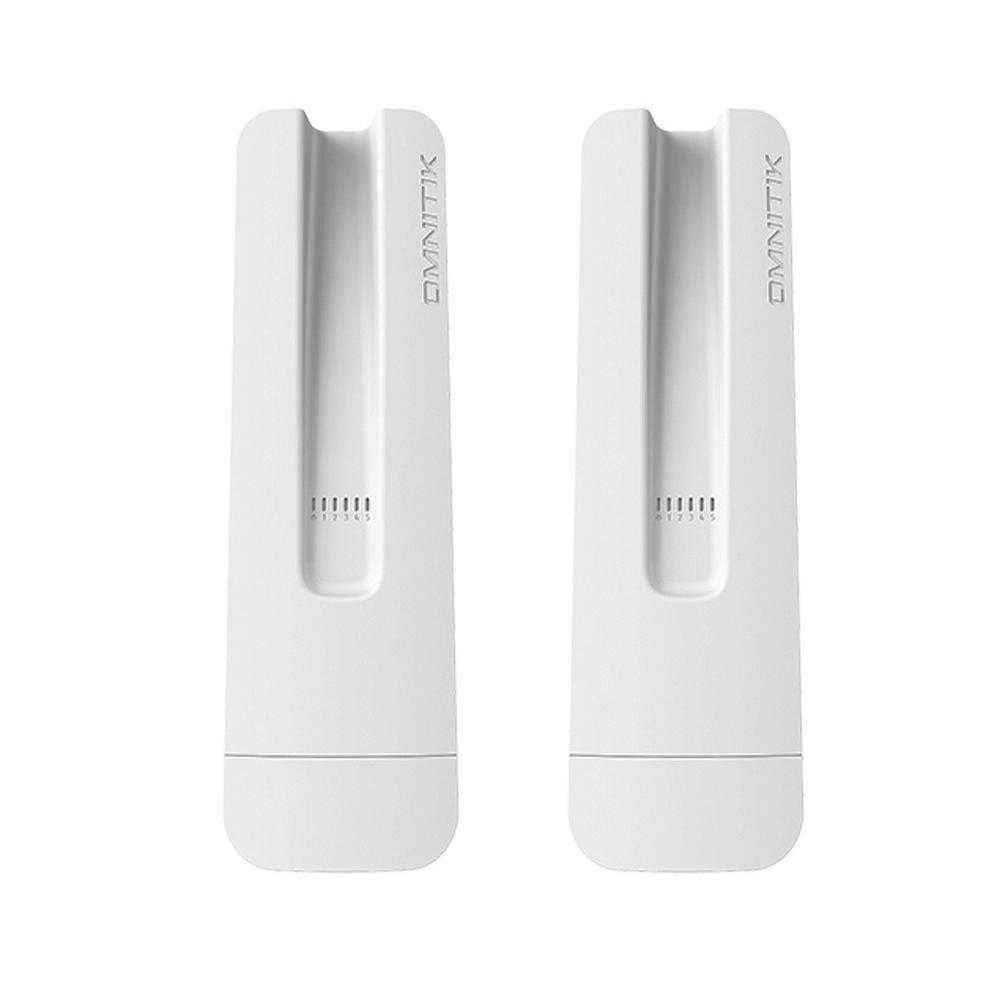

Mikrotik OmniTIK 5 PoE ac 7.5dBi Integrated Access Point 802.11ac 5-Ports Gigabit 2-UNITS



Product Highlights
  • OmniTIK 5 PoE ac access point Integrated 7.5dBi 5GHz omni antenna
  • OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac
  • It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE)

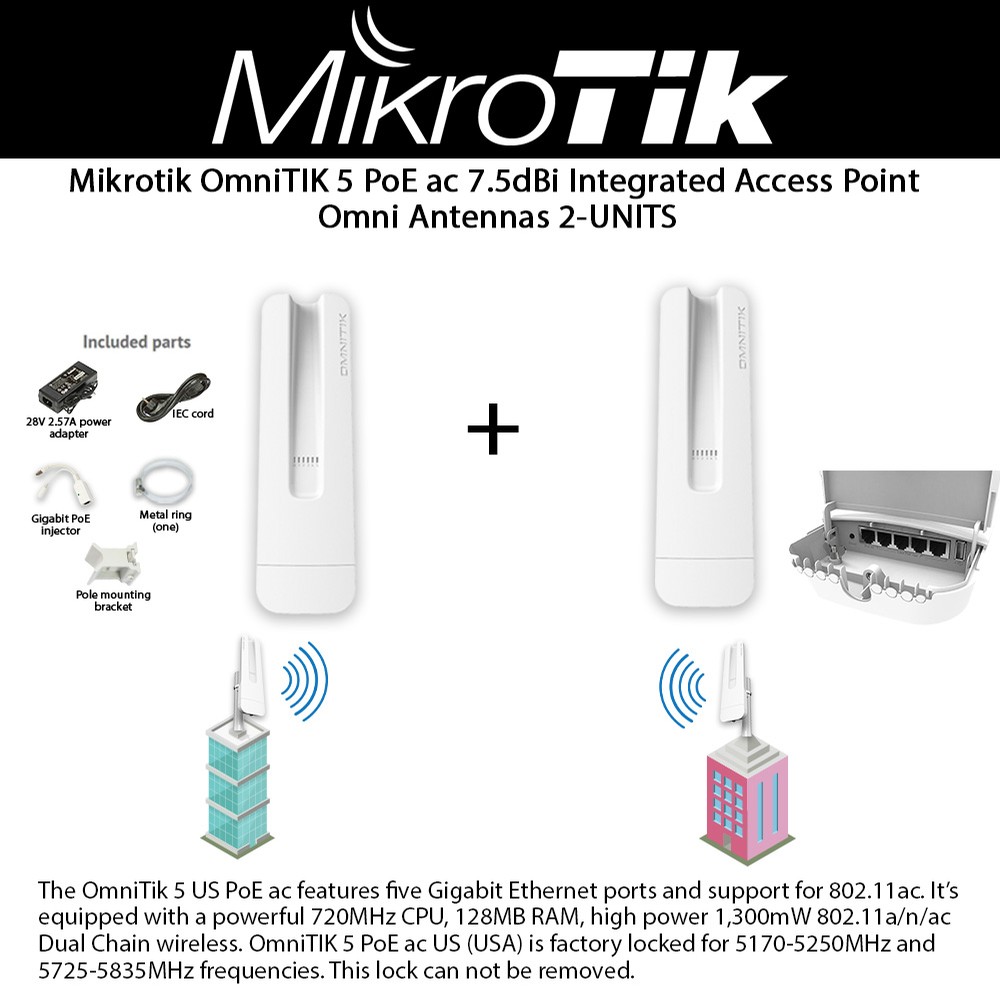

  • Comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit
  • It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit
  • Model#: OmniTik 5 PoE ac 2PK

    Sku: IT2584



    MSRP: $288.95


    Out of stock

    OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

    It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

    OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    Specifications

    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    416 x 129 x 58 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    16 MB
    • Storage type    FLASH

    Powering

    • Max Power consumption    18W
    • PoE in    Passive PoE
    • PoE out    802.3af/at
    • PoE in input Voltage    12-57 V
    • Number of DC inputs    1 (PoE-IN)

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    7.5
    • Wireless 5 GHz chip model    QCA9892

    Ethernet

    • 10/100/1000 Ethernet ports    5

    Peripherals

    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
