FiberBox BD1

Mikrotik

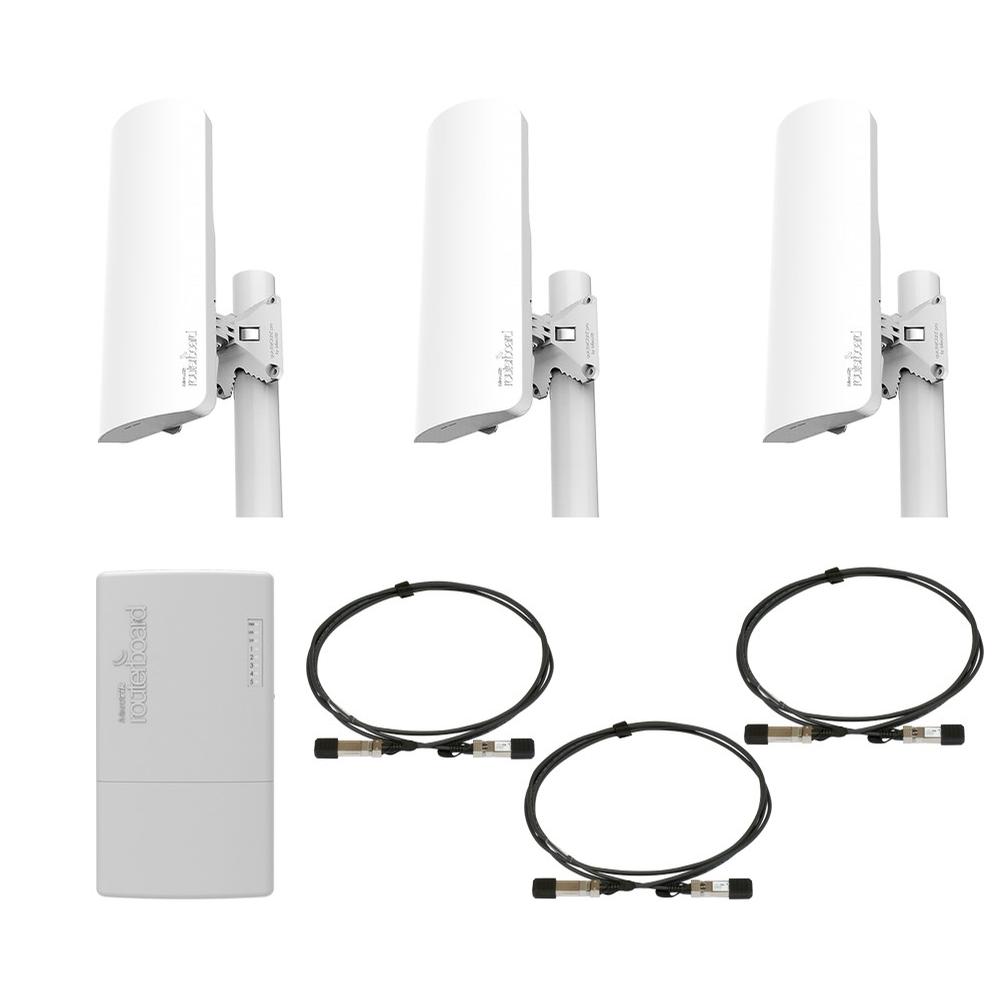

Mikrotik Fiberbox switch + mANTBox 15s antenna 15dBi 3-UNITS + S+DA0001 SFP cable 3-UNITS



Product Highlights
  • The Fiberbox is a weatherproof outdoor switch with five SFP ports, ideal for locations where distance is restricting the use of regular ethernet cables
  • Fiberbox comes with one RJ45 SFP (S-RJ01) copper module already pre-installed in the first port
  • The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in
  • Each unit of mANTBox 15s provides you 120º coverage. By getting three of them you will be able to have 360º coverage
  • S+DA0001 is a highly cost-effective way to connect two SFP/SFP+ devices for very short distances, within racks and across adjacent racks
  • Model#: FiberBox BD1

    Sku: IT2587



    MSRP: $599.95


    Out of stock

    Fiberbox (CRS105-5S-FB)
    • The Fiberbox is an outdoor switch with five SFP ports, ideal for locations where distance is restricting the use of regular ethernet cables. The device is weatherproof and comes with a hose clamp and zip ties, ready to be installed on high masts and towers. It comes with one RJ45 SFP (S-RJ01) copper module already pre-installed in the first port, so you can use ethernet in one of the ports already out of the box. If not needed, remove it to have access to all five SFP ports for using with 1.25 Gbit fiber modules. Dinrail mounting bracket set (K-27) and 24V 0.8A power adapter are also included.

    mANTBox 15s (RB921GS-5HPacD-15S-US)
    • The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power. It comes with 15dBi 120 degree sector antenna.
    The mANTBox 15s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.

    Each unit of mANTBox 15s provides you 120º coverage. By getting three of them you will be able to have 360º coverage.

    S+DA0001
    • This is highly cost-effective way to connect two SFP/SFP+ devices for very short distances, within racks and across adjacent racks. They provide a low power and low latency interconnect solution for 10-Gigabit Ethernet, Fiber Channel and other industry standards, and are direct attached compliant and fully conform to the SFP+ MSA specifications.

     Fiberbox (CRS105-5S-FB)

    • Architecture MIPSBE
    • CPU    QCA8511
    • CPU core count    1
    • CPU nominal frequency    400 MHz
    • Dimensions    125 x 178 x 48 mm
    • License level    5
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -20 to 70° C
    • Max Power consumption    11W
    • Number of DC inputs    1 (DC jack)
    • DC jack input Voltage    9-30 V
    • SFP ports    5

    mANTBox 15s (RB921GS-5HPacD-15S-US)

    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    140 x 348 x 82 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -30 + 70 C
    • Max Power consumption    13W
    • PoE in    Passive PoE
    • PoE in input Voltage    12-28 V
    • Number of DC inputs    2 (PoE-IN, DC jack)
    • DC jack input Voltage    9-30 V
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    15
    • Wireless 5 GHz chip model    QCA9892
    • 10/100/1000 Ethernet ports    1
    • SFP ports    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes

    S+DA0001

    • SFP+ direct attach cable
    • 1m
