RBwsAP-5Hac2nD-US

Mikrotik


Mikrotik wsAP ac lite RBwsAP-5Hac2nD 2.4GHz/5GHz wireless access point 802.11ac US Version


Product Highlights
  • The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.)

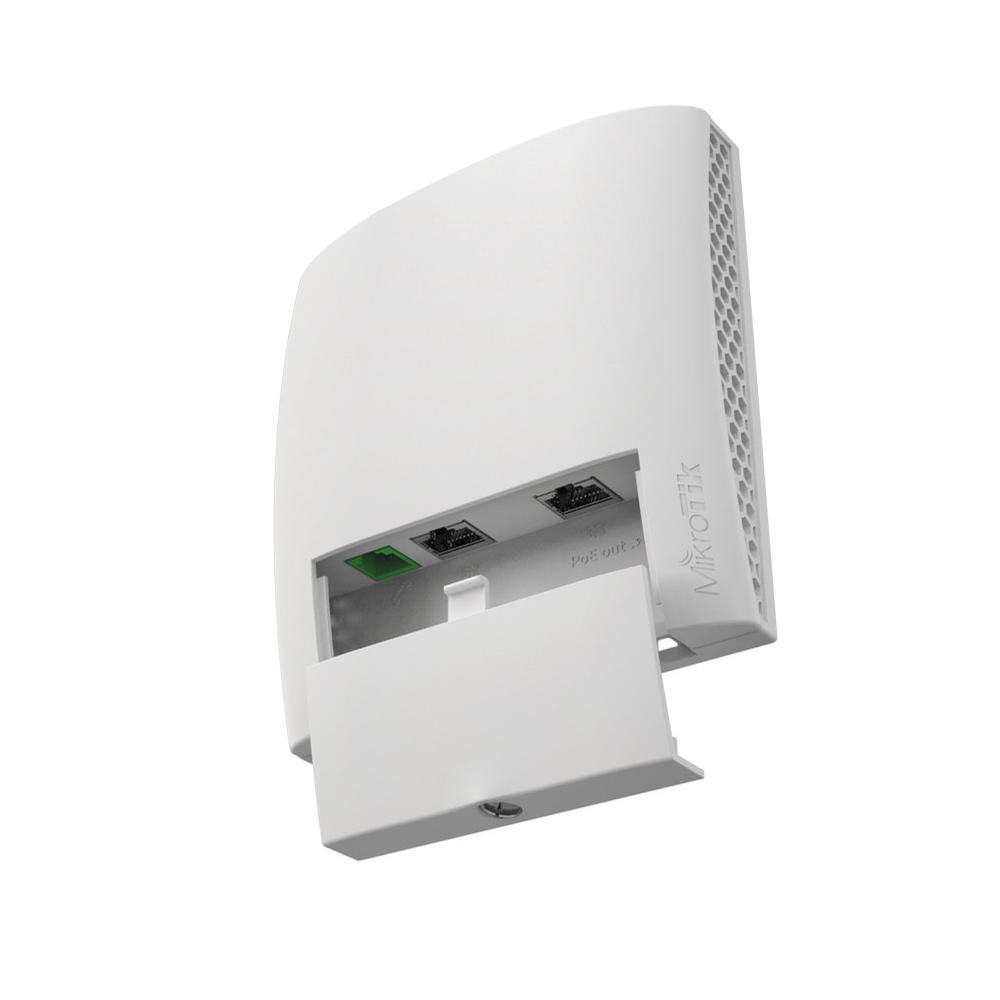

  • The wsAP ac lite has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment
  • The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door
  • The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage
  • The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management

    • Model#: RBwsAP-5Hac2nD-US

    Sku: IT2596



    MSRP: $59.99


    Out of stock

    The wsAP ac lite is a perfect access point (AP) US Version for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

    The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

    The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner.

    Specifications

    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    112 x 126 x 30 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C .. +60°C

    Powering

    • Max Power consumption    10W
    • PoE in    802.3af/at
    • PoE out    Passive PoE
    • PoE in input Voltage    18-57 V
    • Number of DC inputs    1 (PoE-IN)

    Wireless

    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    1.5
    • Wireless 2.4 GHz chip model    QCA9531
    • Wireless 5 GHz number of chains    1
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    3
    • Wireless 5 GHz chip model    QCA-9887

    Ethernet

    • 10/100 Ethernet ports    3

    Peripherals

    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    0.5
