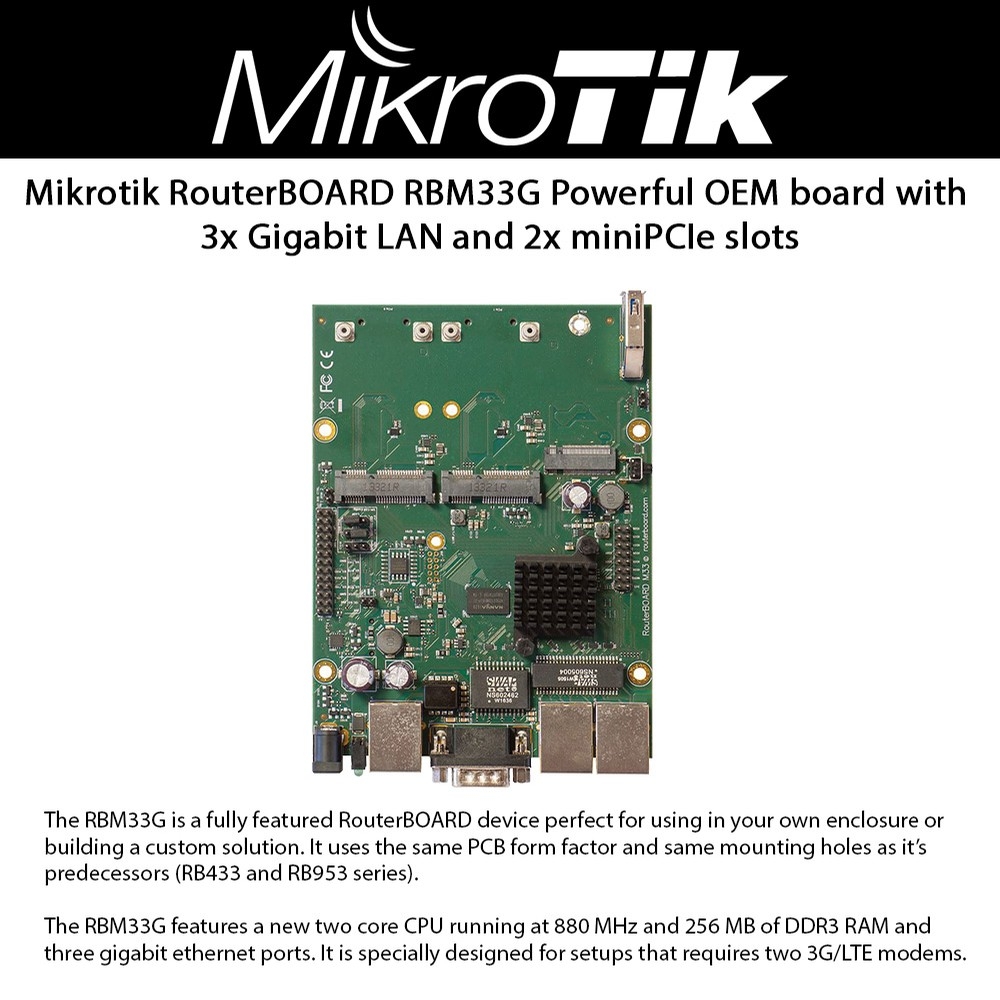

Mikrotik RouterBOARD RBM33G Powerful OEM board 3x Gigabit LAN and 2x miniPCIe slots
Product Highlights
Model#: RBM33G
Sku: IT2618
MSRP: $59.99
Out of stock
Your Price: $59.99
MODEL: RBM33G

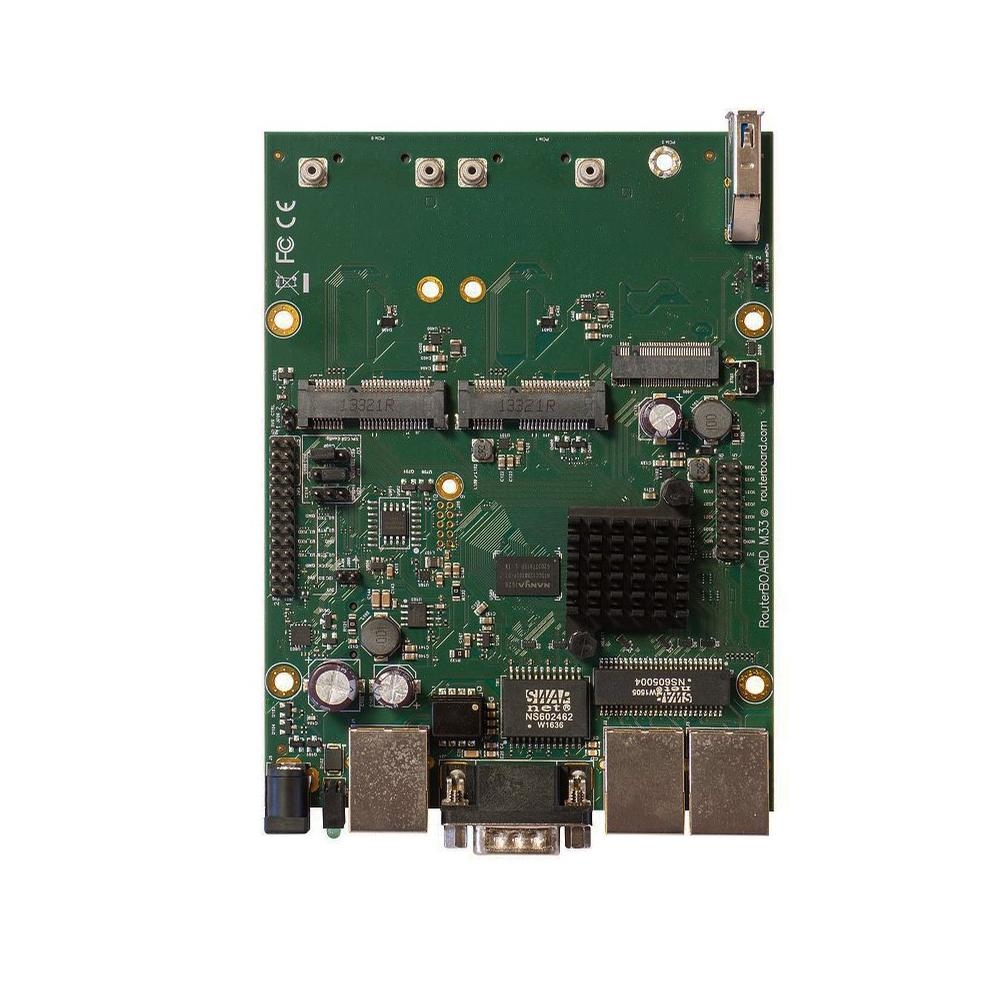

The M33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it's predecessors.
The M33G features a new MediaTek two core CPU running at 880MHz, 256MB of DDR3 RAM, and three gigabit ethernet ports. It features two miniPCIe 3G/LTE modems (two SIM slots provided) and one miniPCIe and one USB 3G/LTE modem leaving the other miniPCIe slot for a 802.11 wireless card. The device can be powered by PoE through its gigabit ethernet connector or through the DC power jack.
Specifications
- Product code RBM33G
- Architecture MMIPS
- CPU MT7621A
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- License level 4
- Size of RAM 256 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -40°C to 70°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 11-32 V
- Number of DC inputs 2 (PoE-IN, DC jack)
- DC jack input Voltage 11-32 V
- Max power consumption 24 W
- Max power consumption without attachments 19 W
Ethernet
- 10/100/1000 Ethernet ports 3
Peripherals
- Number of SIM slots 2 Modem (Mini SIM)
- M.2 slots 1
- MiniPCI-e slots 2
- Serial port RS232
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB 3.0 type A
- Max USB current (A) 1
Datasheet
