RB4011iGS+5HacQ2HnD-IN-US

Mikrotik

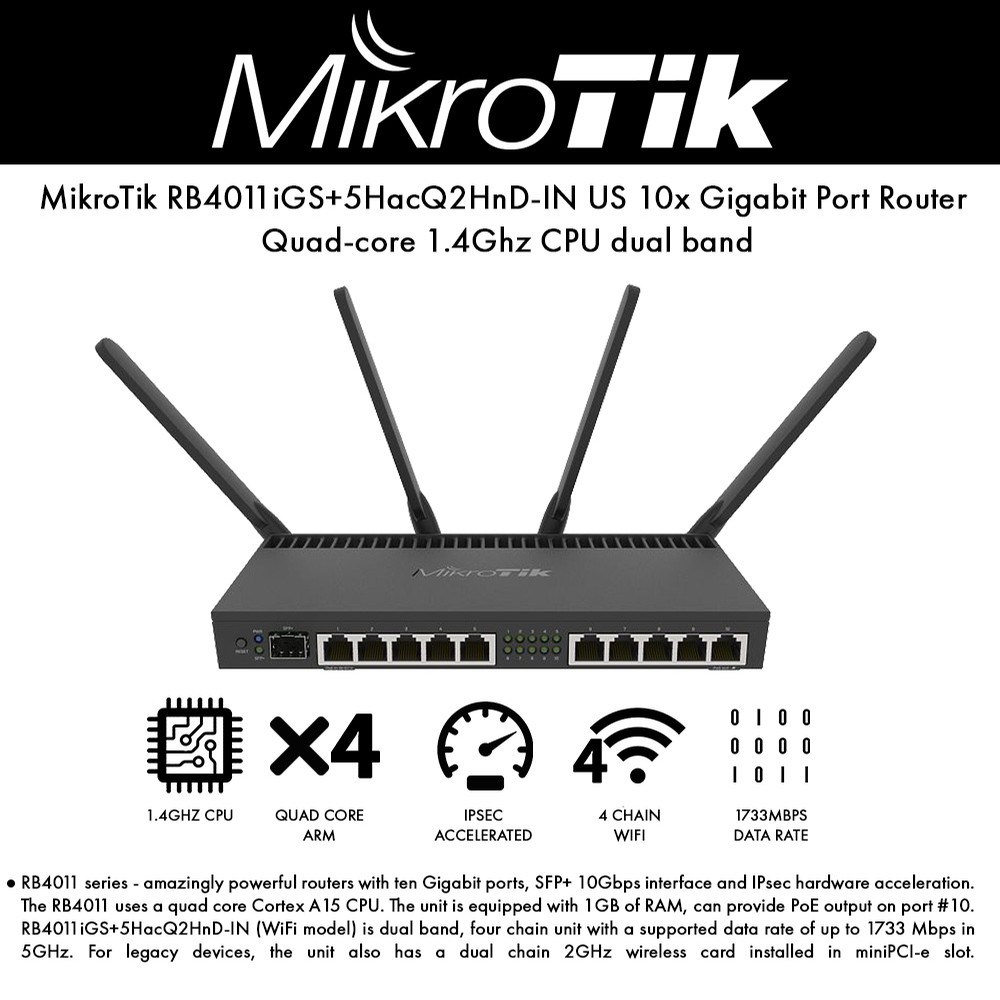

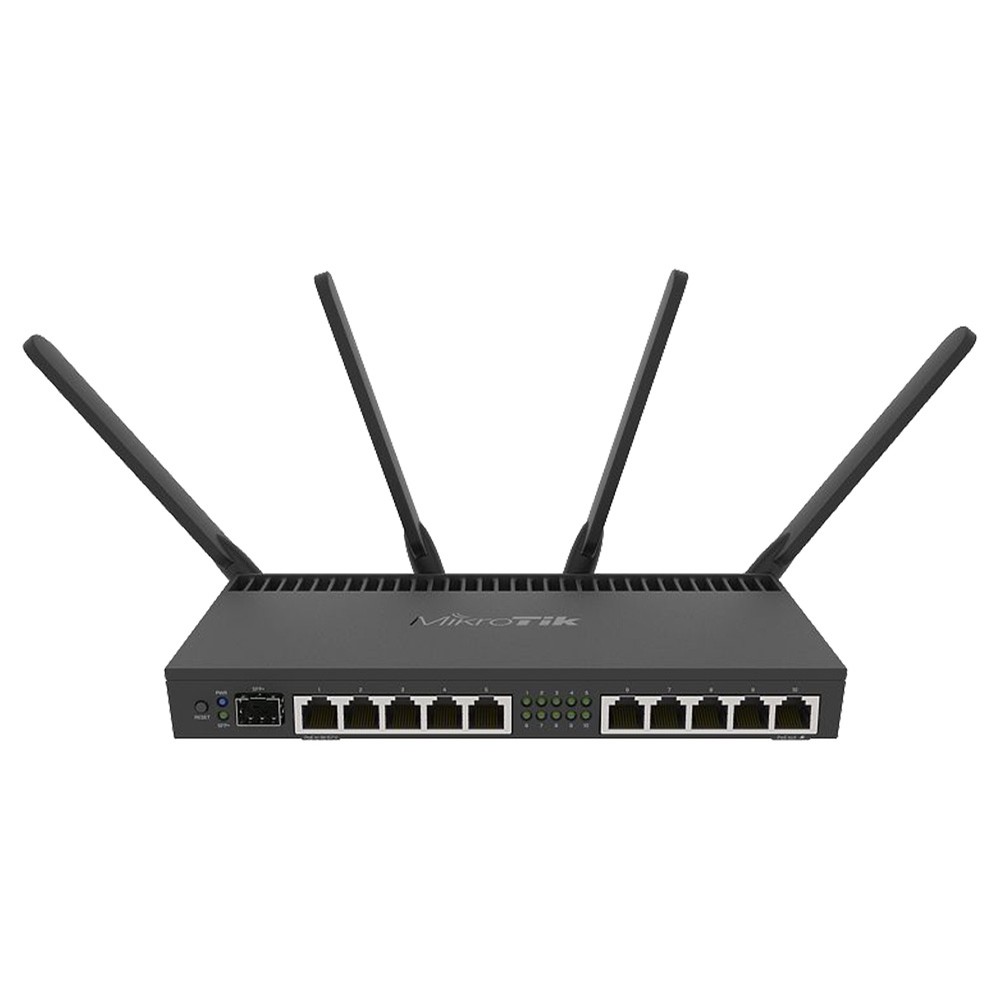

MikroTik RB4011iGS+5HacQ2HnD-IN 10x Gigabit Port Router Quad-core 1.4Ghz CPU dual band US Version


Product Highlights
  • RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz
  • The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit
  • The RB4011iGS+5HacQ2HnD-IN is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black
  • RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration
  • For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot

    • Model#: RB4011iGS+5HacQ2HnD-IN-US

    Sku: IT2624



    MSRP: $229.99


    Out of stock

    RB4011iGS+5HacQ2HnD-IN US Version

    RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration.

    The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

    RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

    Note: The RB4011 does not support Passive DAC modules, 1GB copper SFP modules and SFP GPON modules.

    Specifications

    • Product code    RB4011iGS+5HacQ2HnD-IN-US
    • Architecture    ARM 32bit
    • CPU    AL21400
    • CPU core count    4
    • CPU nominal frequency    1.4 GHz
    • Dimensions    228 x 120 x 30 mm
    • License level    5
    • Operating System    RouterOS
    • Size of RAM    1 GB
    • Storage size    512 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 45°C

    Powering

    • PoE in    Passive PoE
    • PoE out    Passive PoE up to 57V
    • PoE in input Voltage    18-57 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    12-57 V
    • Max out per port output (input > 30 V)    420 mA
    • Max out per port output (input < 30 V)    600 mA
    • Max total out (A)    600 mA
    • Max power consumption    44 W
    • Max power consumption without attachments    23 W

    Wireless

    • Wireless 5 GHz number of chains    4
    • Wireless 5 GHz Max data rate    1733 Mbit/s
    • Wireless 5 GHz standards    802.11ac MU-MIMO
    • AC speed    AC2000
    • Antenna gain dBi for 5 GHz    3
    • Wireless 5 GHz chip model    QCA9984
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    3
    • Wireless 2.4 GHz chip model    R11e-2HnD

    Ethernet

    • 10/100/1000 Ethernet ports    10

    Fiber

    • SFP+ ports    1

    Peripherals

    • MiniPCI-e slots    1
    • Serial port    RJ45

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
