RBDisc-5nD x2

Mikrotik

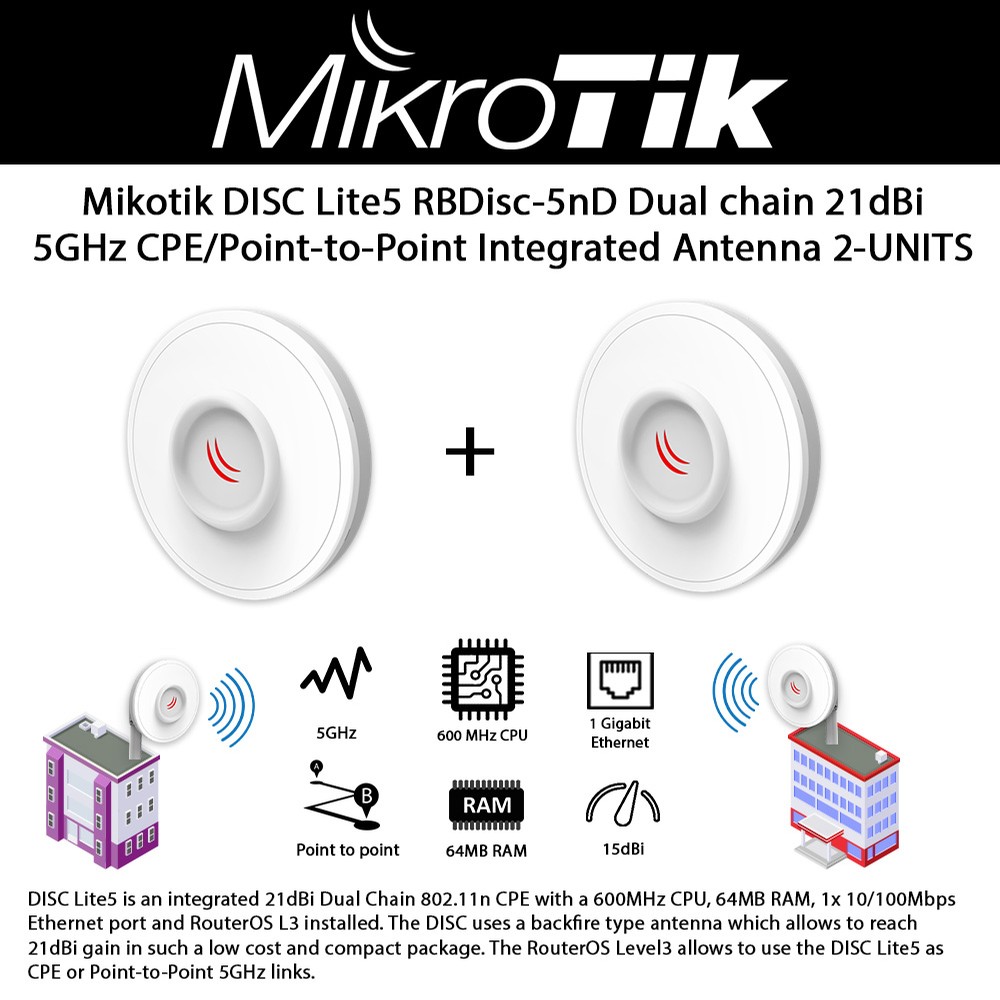

Mikrotik DISC Lite5 Dual chain 21dBi 5GHz CPE/Point-to-Point Integrated Antenna 2-UNITS


Product Highlights
  • DISC Lite5 RBDisc-5nD is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed.
  • The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.
  • The DISC Lite5 comes complete with a power supply, PoE injector and mounting kit.
  • The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point 5GHz links.
  • The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.

    • Model#: RBDisc-5nD x2

    Sku: IT2628



    MSRP: $119.99


    Out of stock

    DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.

    The device comes complete with a power supply, PoE injector and mounting kit for a ultra low cost. The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point 5GHz links.

    Specifications

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    ? 265mm, height: 80mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    10-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    6 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    21
    • Wireless 5 GHz chip model    AR9344

    Ethernet

    • 10/100 Ethernet ports    1
