CRS125-24G-1S-IN-BD1

Mikrotik

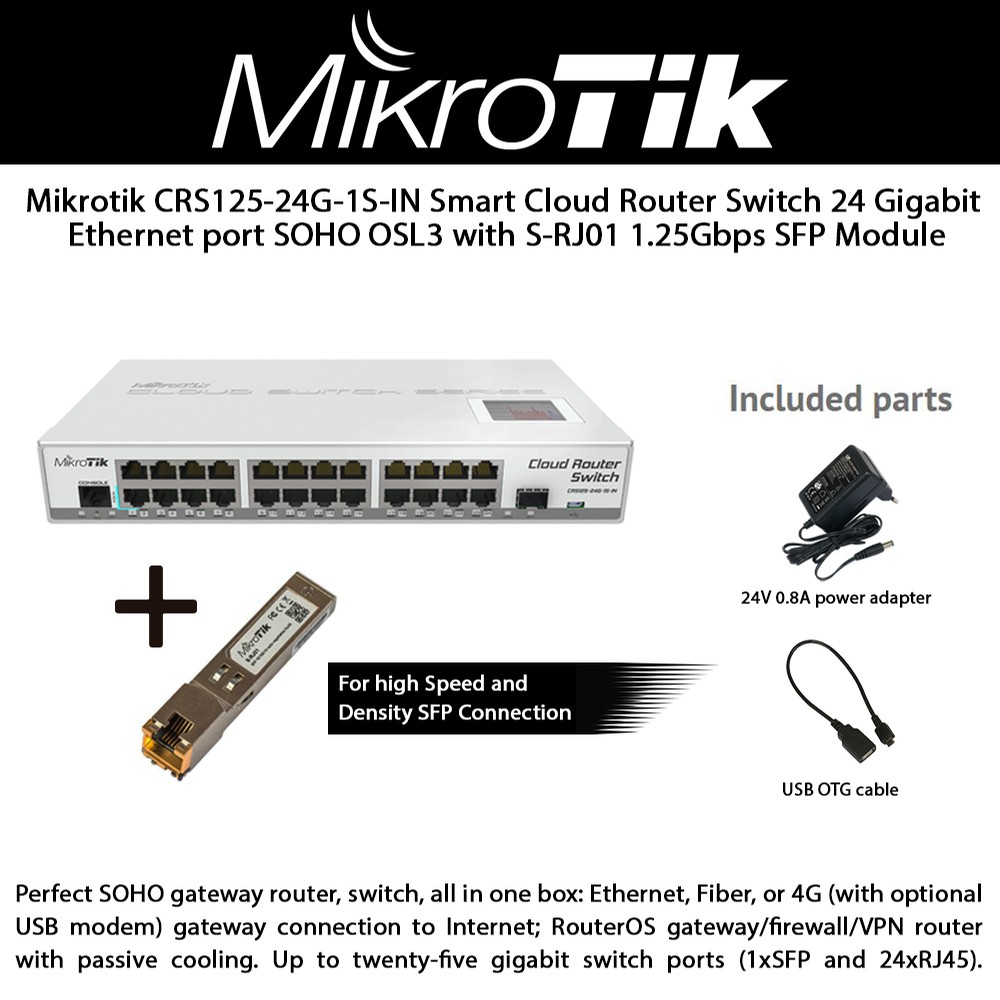

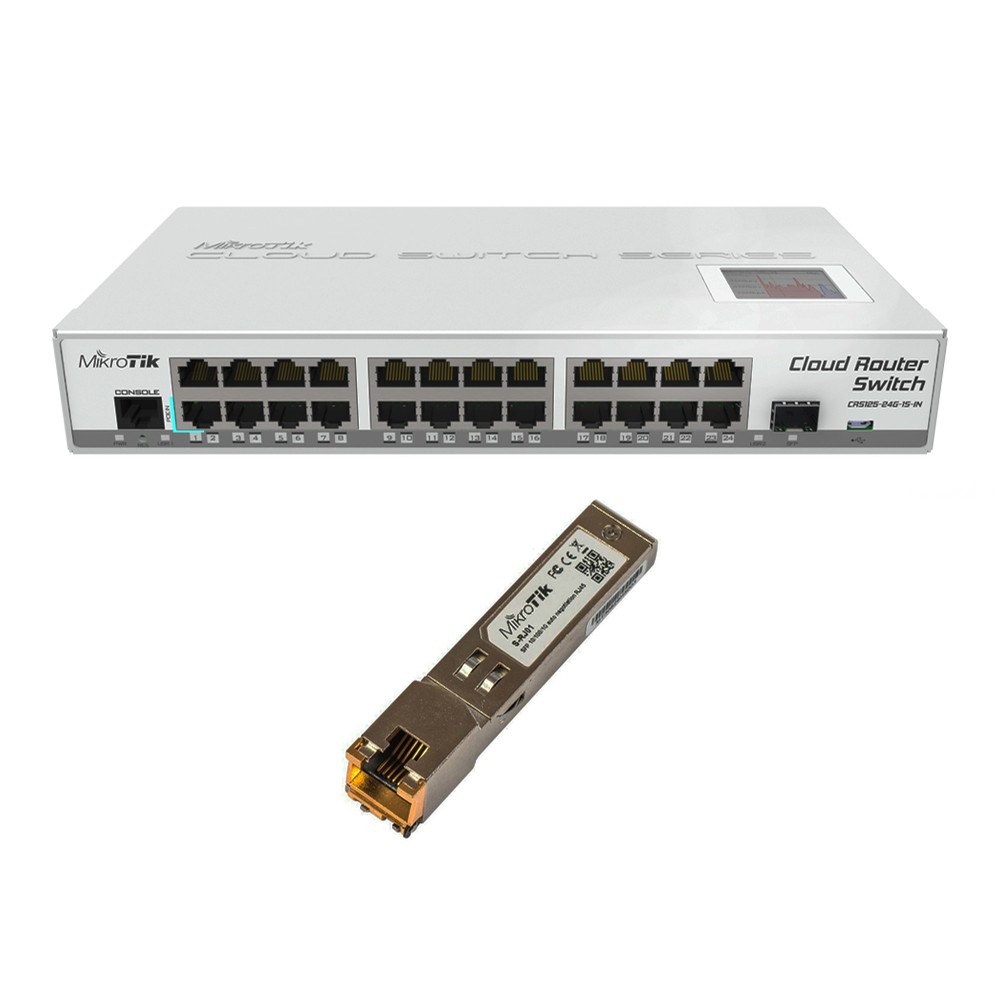

Mikrotik Cloud Router Switch CRS125-24G-1S-IN 24-Port OSL3 with S-RJ01 SFP Module 1.25Gbps


Product Highlights
  • Mikrotik Cloud Router Switch CRS125-24G-1S-IN 24 Port Gigabit and 1 SFP OSL3 with S-RJ01 Mikrotik SFP Module 1.25Gbps 600MHz CPU 128MB RAM
  • Cloud Router Switch combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS
  • Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
  • RouterOS gateway/firewall/VPN router with passive cooling
  • Mikrotik Copper Module S-RJ01 RJ45 SFP 10/100/1000M 1.25Gbps

    • Model#: CRS125-24G-1S-IN-BD1

    Sku: IT2633



    MSRP: $259.99


    Out of stock

    Model: CRS125-24G-1S-IN

    Mikrotik Cloud Router Switch CRS125-24G-1S-IN 24 Port Gigabit 1 SFP OSL3 with S-RJ01 Mikrotik SFP Module

    Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.

    All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. Choose ports for Wire speed switching, or for routing purposes.

    Perfect SOHO gateway router, switch, all in one box: Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet; RouterOS gateway/firewall/VPN router with passive cooling. Up to twenty-five gigabit switch ports (1xSFP and 24xRJ45).

    Desktop enclosure, power supply and USB OTG cable (for 4G dongle or USB drive) are included.

    +

    Model: S-RJ01

    Mikrotik SFP Module S-RJ01 1.25Gbps
    S-RJ01 is a RJ45 SFP 10/100/1000M copper module, compatible with most Gigabit SFP ports available on various networking devices.

    CRS125-24G-1S-IN

    • CPU Qualcomm Atheros AR9344 600 MHz
    • Memory 128MB
    • Ethernet 24x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
    • Expansion microUSB port
    • Storage 128MB Onboard NAND with multiple OS partition support
    • Serial port One RJ45 serial port
    • Extras Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD
    • Power options 8-28V, 24V 0.8A PSU included
    • Case dimensions 285x145x45mm
    • Temperature -35C to +65C tested
    • OS MikroTik RouterOS v6, Level 5 license
    • Included CRS switch, power adapter, and USB OTG cable (for 4G dongle or USB drive)

    S-RJ01

    • Up to 1.25 Gb/s bi-directional data links
    • 100m transmission over unshielded
    • Compliant with IEEE Std 802.3TM-2002
    • Compliant with SFP MSA
    • RoHSCompliance
    • Access to physical layer IC via 2-wire serial bus
    • RJ-45 connector
    • Hot Pluggable SFP footprint
    • +3.3V single power supply
    • Extended case temperature range (0°C to +85°C)
