PWR-Line AP BD1

Mikrotik

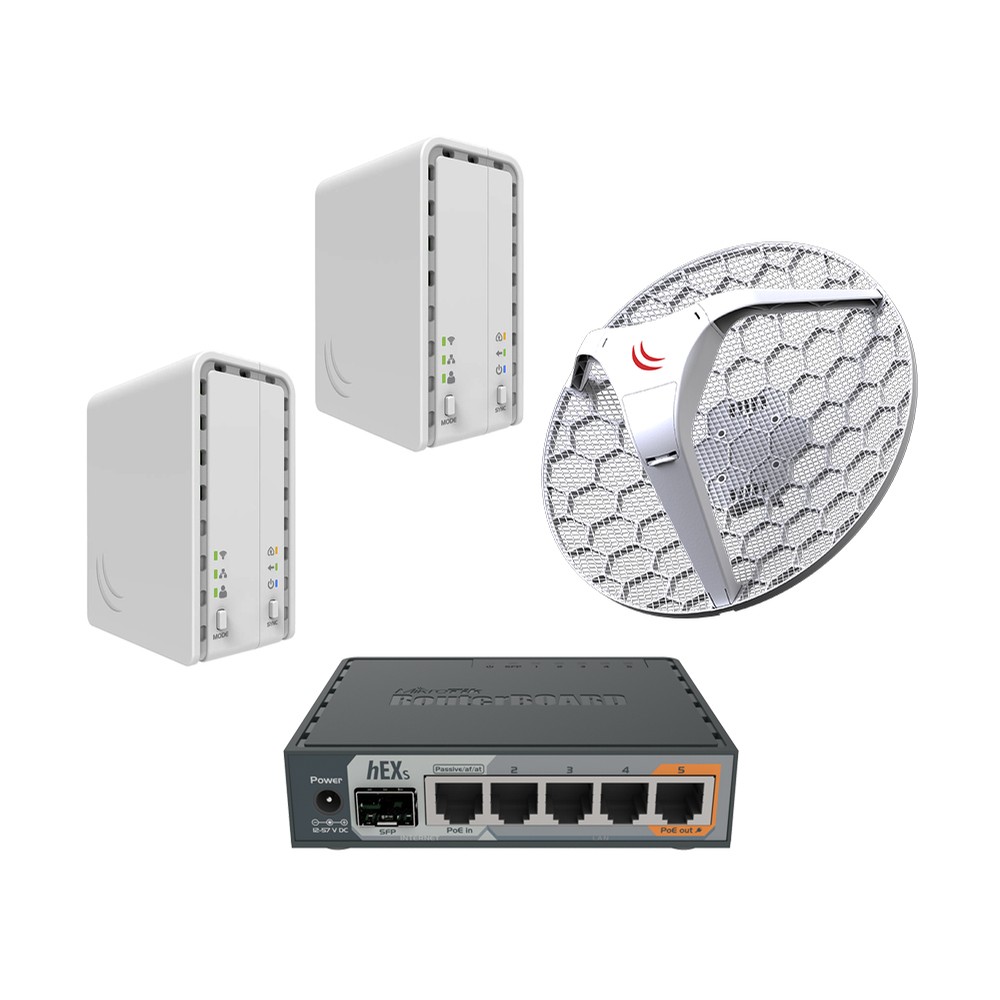

Mikrotik PWR-Line AP 2-UNITS Solution with hEX S 5 port Router and LHG 5 CPE/Point to Point Antenna



Product Highlights
  • The PWR-Line AP is a small Wi-Fi access point, made as an accessory to your existing network, for places, where your signal or your cable is unable to reach
  • hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required
  • The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. It is perfect for point to point links or for use as a CPE at longer distances
  • Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises.
  • They will link together through the power lines
  • Model#: PWR-Line AP BD1

    Sku: IT2634



    MSRP: $219.99


    Out of stock

    PWR-Line AP (PL6411-2nD)
    The PWR-Line AP is a small Wi-Fi access point, made as an accessory to your existing network, for places, where your signal or your cable is unable to reach. Unit comes with Type A power plug (commonly used in USA, Canada, Mexico & Thailand)

    Especially useful in homes with thick walls, where you can extend Wi-Fi coverage to those rooms, where signal is poor, without having to re-wire your house.

    Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises. They will link together through the power lines. You can install up to eight PWR-LINE devices to further build your network.

    hEX S (RB760iGS)
    hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

    It is a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

    IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

    LHG 5 (RBLHG-5nD)
    The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

    The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

    PWR-Line AP (PL6411-2nD)

    • 10/100 Ethernet ports    1
    • Antenna gain dBi for 2.4 GHz    1.5
    • CPU nominal frequency    650 MHz
    • Dimensions    50 x 68 x 33mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -20°C to 60°C
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz chip model    QCA9533
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n

    hEX S (RB760iGS)

    • CPU nominal frequency    880 MHz
    • CPU Threads count    4
    • Dimensions    113 x 89 x 28 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    256 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    802.3af/at
    • PoE out    Passive PoE up to 57V
    • 10/100/1000 Ethernet ports    5
    • SFP ports    1
    • Memory card type    microSD
    • Memory Cards    1
    • Number of USB ports    1
    • USB Power Reset    Yes

    LHG 5 (RBLHG-5nD)

    • CPU nominal frequency    600 MHz
    • Dimensions    Ø 391 x 222 mm; package 450 x 450 x 145 mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40 to 70° C
    • PoE in    Passive PoE
    • PoE in input Voltage    11-30 V
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz standards    802.11a/n
    • 10/100 Ethernet ports    1
