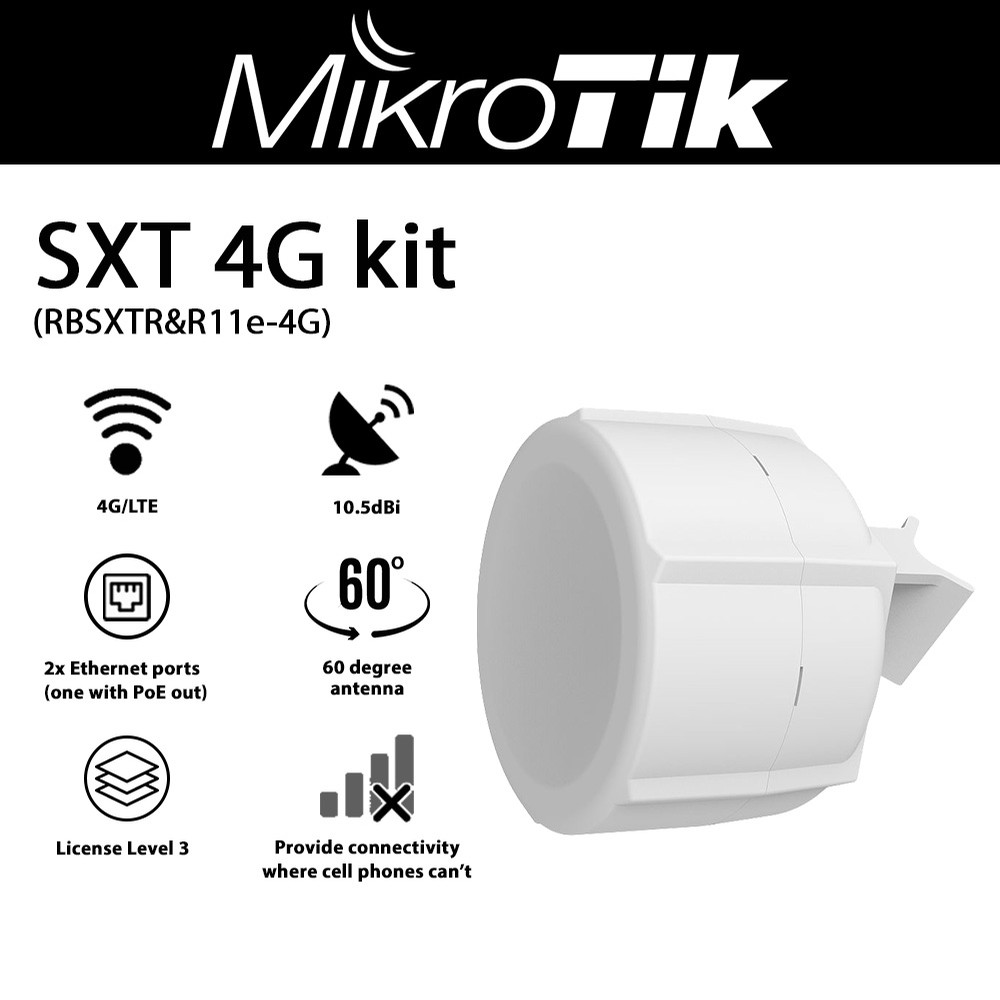

SXT 4G kit

Mikrotik


Mikrotik SXT 4G kit 60 Degree 10.5dBi Antenna with Build in 4G/LTE Modem and 2 Ethernet Ports


Product Highlights
  • The SXT 4G kit (RBSXTR&R11e-4G) is a device for remote locations that are within cellular network coverage
  • Due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t
  • It's equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device
  • It has a built in high quality 4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link
  • RBSXTR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz)

    • Model#: SXT 4G kit

    Sku: IT2653



    MSRP: $139.99


    Out of stock

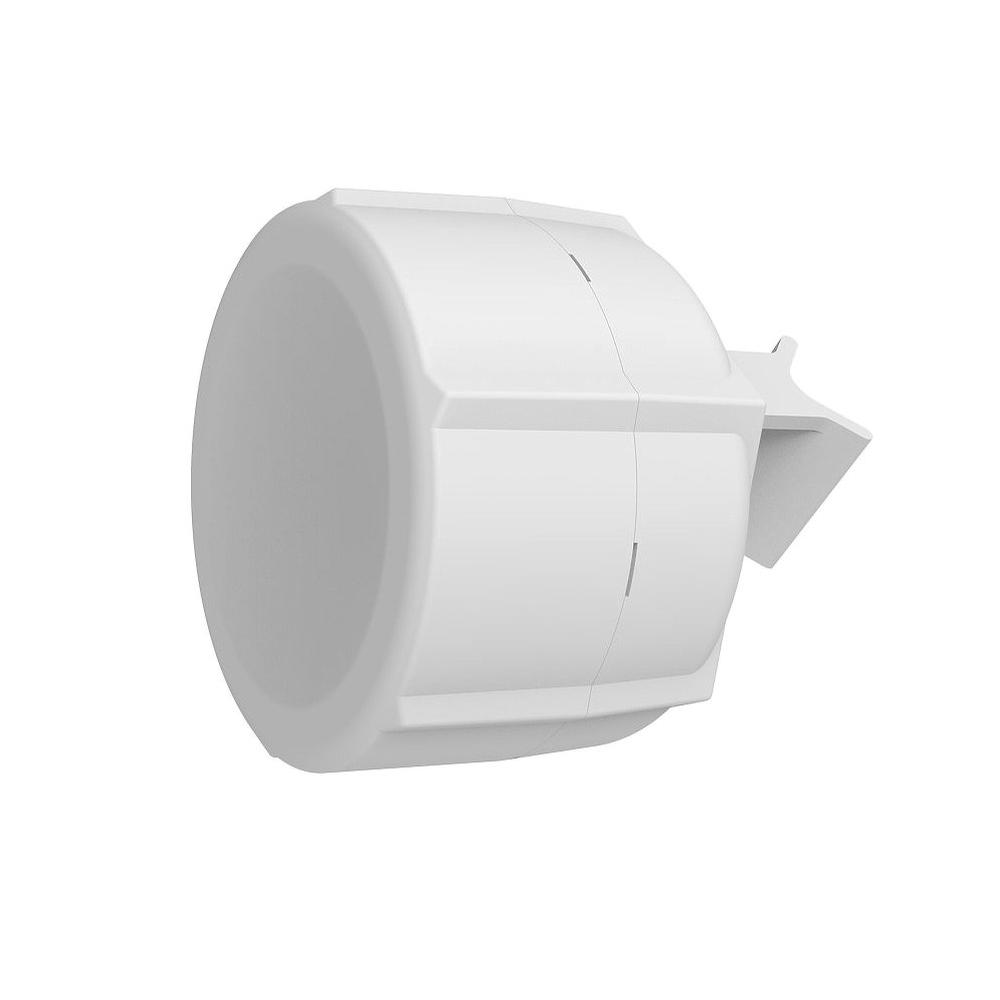

    The SXT 4G kit (product code RBSXTR&R11e-4G) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

    The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

    The device has a built in high quality 4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

    RBSXTR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

    • 10/100 Ethernet ports    2
    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    140 x 140 x 103 mm
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz)
    • LTE TDD bands    41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
    • License level    3
    • Max out per port output (input < 30 V)    600 mA
    • Max out per port output (input > 30 V)    400 mA
    • Max power consumption    19 W
    • Max power consumption without attachments    6 W
    • Max total out (A)    600 mA
    • MiniPCI-e slots    1
    • Mode button    Yes
    • Number of DC inputs    1 (PoE-IN)
    • Number of SIM slots    2 Modem (Micro SIM)
    • Operating System    RouterOS
    • PoE in    802.3af/at
    • PoE in input Voltage    12-57 V
    • PoE out    Passive PoE up to 57V
    • PoE-out ports    Ether2
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 60°C
