LHG 4G kit

Mikrotik

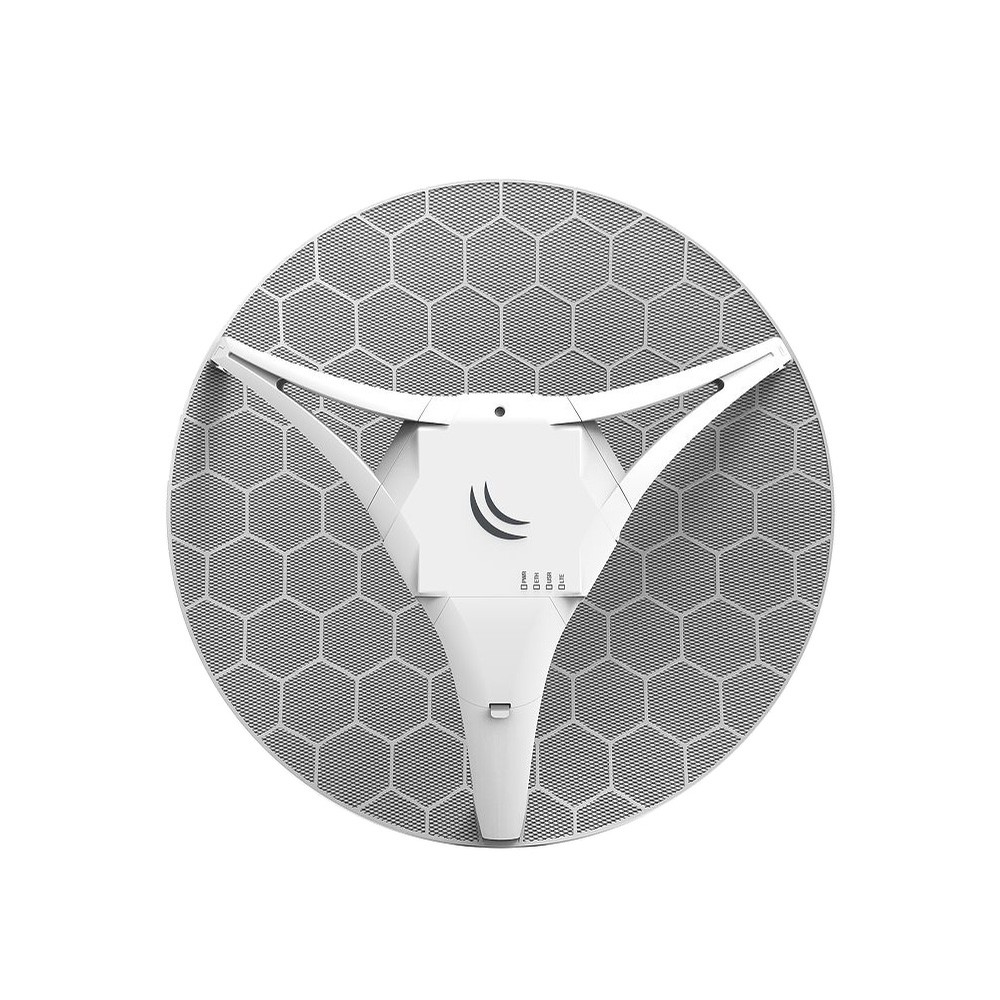

Mikrotik LHG 4G kit LHG 4G/LTE 21dBi Outdoor CPE and LTE Modem (RBLHGR&R11e-4G)


Product Highlights
  • LHG 4G kit (RBLHGR&R11e-4G) is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t
  • Due to it’s large sized high gain 21dBi antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available
  • It's is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink
  • RBLHGR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz)
  • Some specifications: 650 MHz CPU nominal frequency, 391 x 391 x 227 mm Dimensions, 802.3af/at PoE in, 64 MB RAM, 16 MB storage

    • Model#: LHG 4G kit

    Sku: IT2654



    MSRP: $169.99


    Out of stock

    Mikrotik LHG 4G kit LHG 4G/LTE 21dBi Outdoor CPE and LTE Modem (RBLHGR&R11e-4G)

    The LHG 4G kit (RBLHGR&R11e-4G) is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain 21dBi antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

    The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

    RBLHGR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

    • 10/100 Ethernet ports    1
    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    391 x 391 x 227 mm
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz)
    • LTE TDD bands    41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
    • License level    3
    • Max power consumption    5 W
    • MiniPCI-e slots    1
    • Mode button    Yes
    • Number of DC inputs    1 (PoE-IN)
    • Number of SIM slots    1 Modem (Mini SIM)
    • Operating System    RouterOS
    • PoE in    802.3af/at
    • PoE in input Voltage    12-57 V
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 60°C
