B5x2

Mimosa Network

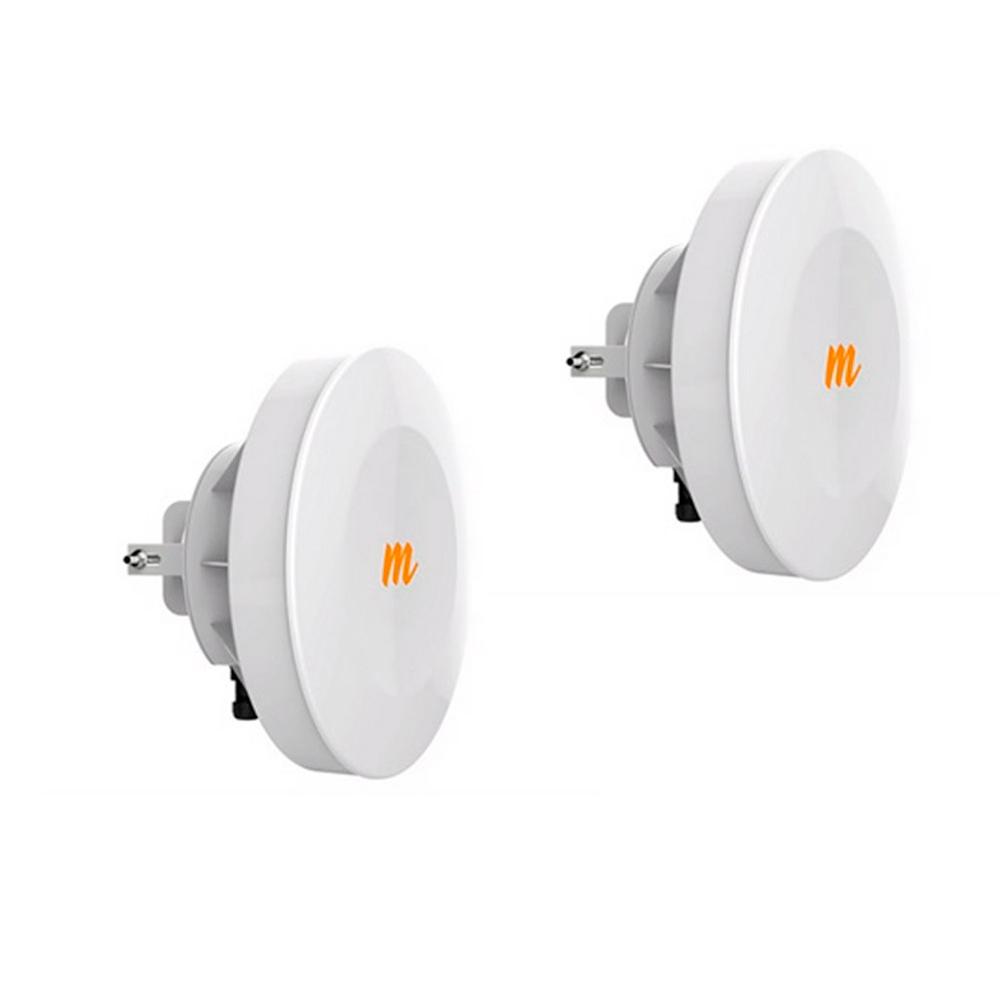

Mimosa B5 (2 Units) Outdoor Gigabit Backhaul Wireless 802.11ac 4x4:4 MIMO 1.7Gbps (100-00001)


Model#: B5x2

Sku: IT2660



MSRP: $1,329.99


Out of stock

Model: B5 (2 UNITS)

  • Part # 100-00001

The Mimosa B5 802.11ac wireless backhaul radio 4x4:4 MIMO 1.7Gbps 25dBi  is, hands down, the easiest to use and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications. It’s iIdeal for collocation applications, relay sites, and building-to-building settings.

  • GIGABIT BACKHAUL MADE EASY

The Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.



APPLICATIONS:

         Building to Building                                         Relay Sites                                          Tower and Collocation Sites

            Icon Building@2X                                            Icon Relay@2X                                                       Icon Tower@2X









Performance

  •  Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
  •  Low Latency: Configurable to 5ms+
  •  Wireless Protocols: TDMA, TDMA-FD, Auto-TDMA

Radio

  • MIMO & Modulation: 4x4:4 MIMO OFDM up to 256QAM
  •  Bandwidth: Single or Dual 20/40/80 MHz channels
  •  Frequency Range: 5150-5875 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
  • Max Output Power: 30 dBm (2-stream), 27 dBm (4-stream)
  •  Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz



Antenna

  • Gain: 25 dBi
  •  Beamwidth ( 3dB ): 8° (HPOL and VPOL)
  •  Elevation Adjust: ±20° mechanical adjust • Front-to-Back Ratio: >30 dB
  •  Cross-Polar Isolation: >20 dB
  •  Polarization: Dual-linear (horizontal & vertical)

Physical

  • Dimensions: Diameter - 442 mm (17.4”); Depth - 362 mm (14.3”) with bracket
  •  Weight: 4.9 kg (10.8 lbs) with bracket
  •  Enclosure Characteristics: Single enclosure with radome Outdoor UV stabilized plastic Painted steel bracket plate
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 39 kg @ 160 km/h (86 lbs @ 100 mph)
  •  Mounting: Pole mounting kit included for 30mm (1.18”) to 90mm (3.54”) OD pipes

Features

  • Gigabit Ethernet: 10/100/1000-BASE-T
  • Dual Link Operation: 2 independent dual-stream radios operating on non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
  • Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI; 2.4 GHz 802.11b/g/n radio for local management access
  • Smart Antenna Alignment: Hands-free dedicated 2.4 GHz WiFi management radio
  • Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic autooptimization of channel and bandwidth use
  • Security: 128-bit AES PSK with hardware acceleration • QoS: Supports 4 pre-configured QoS levels
  • GPS Location: GNSS-1 (GPS + GLONASS)
  • Collocation Synchronization: 1PPS GPS TX/ RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
