C5C

Mimosa Network

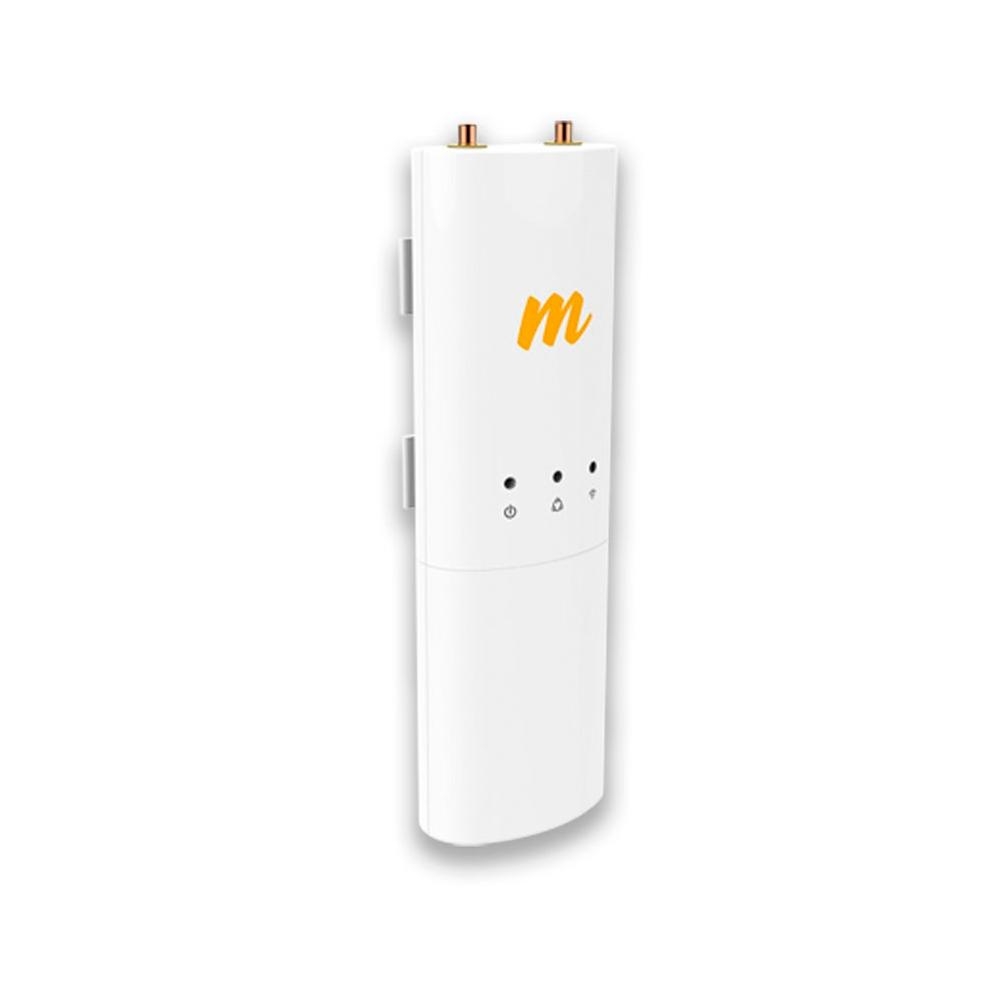

Mimosa C5C Connectorized Client Device 5GHz 500+ Mbps (866 Mbps PHY) MiMO 2x2:2 (POE is not included)



Product Highlights
  • The C5c has dual RP-SMA connectors for easy cabled antenna Connectivity. It can be mounted to any pole via hose Clamps or easily clipped onto antennas supporting Compatible clip-on mounting bracket systems.
  • The C5c provides extreme price/ performance for PTP backhaul links in a small form factor. Wide frequency range support allows avoidance of crowded 5 GHz spectrum bands. Where regulations allow, long distances are enabled with high system power and f
  • The C5c offers client-side support for Mimosa’s proprietary Spectrum Reuse Synchronization (SRS) technology. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request ups
  • C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 500+ Mbps
  • With MU-MIMO, multiple clients on the same access point are coordinated to simultaneously share spectrum
  • Model#: C5C

    Sku: IT2666



    MSRP: $179.99


    Out of stock

    Your Price: $142.00


    Model: C5C

    The Mimosa C5C is a flexible connectorized client radio solution for accommodating long range and custom antenna solutions. Incorporating unique Multi-User MIMO technology and support for Mimosa’s SRS technology, the C5c enables the fastest speeds and is the most scalable wireless access solution available today. The C5c isideal for professionally-installed rural fixed wireless and long range applications for point-to-point backhaul links.

    • Flexible Antenna Options

    Connect to virtually any dual polarization antenna to Custom engineer longer distance client links. The C5c Has dual RP-SMA connectors for easy cabled antenna Connectivity. It can be mounted to any pole via hose Clamps or easily clipped onto antennas supporting Compatible clip-on mounting bracket systems.



    • PTP Backhaul Links

    The C5c provides extreme price/ performance for PTP backhaul links in a small form factor. Wide frequency range support allows avoidance of crowded 5 GHz spectrum bands. Where regulations allow, long distances are enabled with high system power and flexible antenna options.

    • SRS Client

    The C5c offers client-side support for Mimosa’s proprietary Spectrum Reuse Synchronization (SRS) technology. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth.As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.



    Performance

    • Max Throughput: 500+ Mbps IP (866 Mbps PHY)
    • Wireless Protocols: WiFi Interop Mimosa SRS
    • Modes: PTMP Client PTP Backhaul



    Radio

    • MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
    • Bandwidth*: 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop
    • Frequency Range: PTMP: 4900 - 6200 MHz - PTP: 4900 - 6400 MHz, Restricted by country of operation ‘new’ US/FCC 5600-5650 MHz support FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
    • Max Output Power: 27 dBm
    • Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz



    Power

    • Max Power Consumption: 12.9 W
    • System Power Method: Passive PoE (24-56VDC)
    • PoE Power Supply: Passive PoE compliant, 48-56 V Power over Ethernet supply (included)



    Physical

    • Dimensions: Depth - 44.0 mm (1.73”), Width - 65 mm (2.56”), Height - 188.4 mm (7.42”)
    • Weight: 295 gr (10.4 ounces)
    • Mounting: Single pole strap
    • Connector Type: RP-SMA (x2)

    * 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)

    ** Enabled in future software release
