B5C-BD6

Mimosa Network

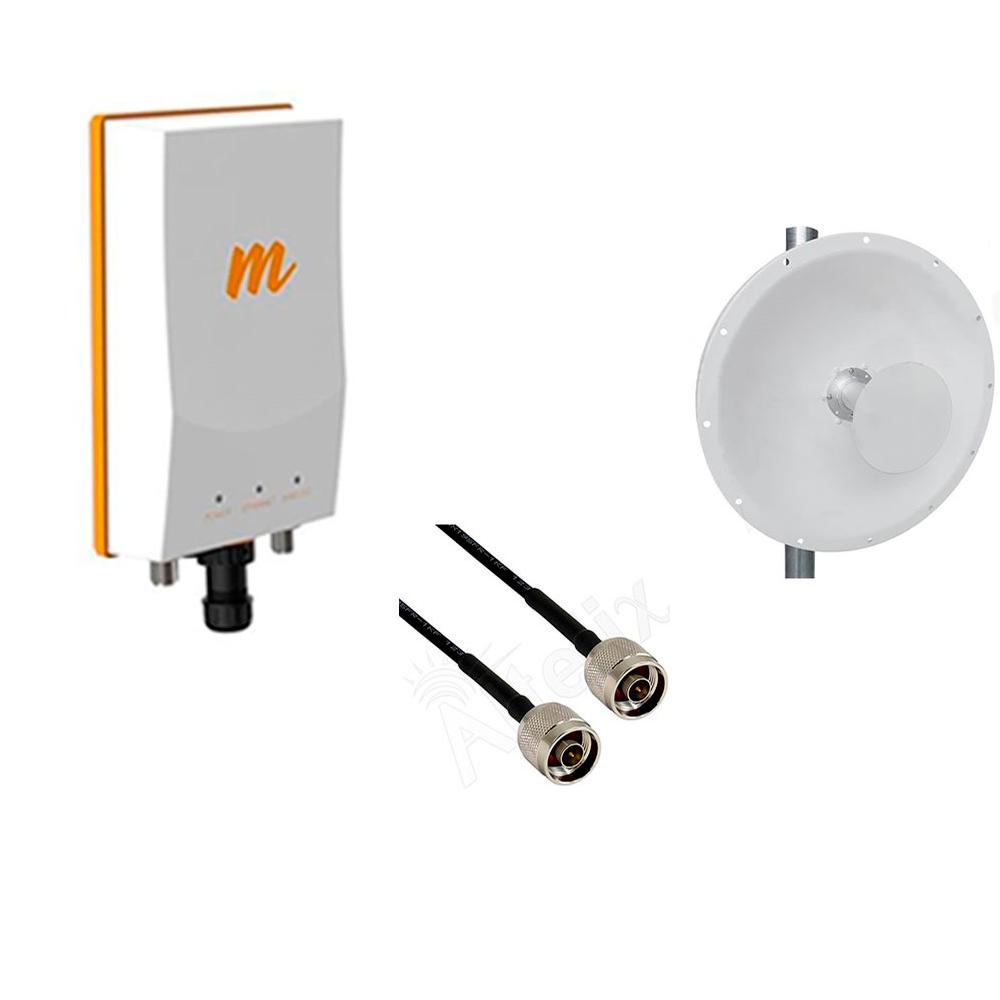

Mimosa B5C Connectorized GPS 11ac 4x4:4 MIMO IP67 pair with 5GHz 25dBi Dish Antenna 4950-5850MHz


Product Highlights
  • The Mimosa B5c is the industry’s fastest connectorized unlicensed and public safety connectivity solution, allowing virtually any antenna to be used for long distance Point to Point backhaul.
  • Ultra Rugged - Carrier-grade IP67 design allows the B5c to withstand the harshest of environmental conditions
  • Double Reliability - Tames unlicensed spectrum interference via custom engineered multi-channel and auto-everything technology. As good as two smart links in one radio
  • This is a Complete High Gain Antenna that features our Light Weight 25dBi Dual Polarized 2x2 Mimo
  • Includes a high-performance 195-series coaxial cable N-Male to N-Male

    • Model#: B5C-BD6

    Sku: IT2683

    Out of stock

    Mimosa B5c

    The Mimosa B5c is the industry’s fastest connectorized unlicensed and public safety connectivity solution, allowing virtually any antenna to be used for long distance Point to Point backhaul.

    The B5c is ideal for long range relay and tower links and custom engineered collocation. It is also suitable for licensed Public Safety operation on 4.9 GHz spectrum.

    Ultra Rugged
    Carrier-grade IP67 design allows the B5c to withstand the harshest of environmental conditions

    Double Reliability
    Tames unlicensed spectrum interference via custom engineered multi-channel and auto-everything technology. As good as two smart links in one radio

    Incredibly Fast. Incredibly Flexible.
    Recognized as the fastest unlicensed backhaul in the industry. Extensive bandwidth control options, low latency, reserved bandwidth and GPS sync mode mean peak performance.

    Easily Add New Links
    The B5c is spectrum friendly. Unique high precision GPS Sync technology reuses the same channel network wide. Keep adding more capacity to more sites and waste less spectrum.

    Monitor with Ease
    Assessing link health and identifying potential problems has never been easier. Links are instantly monitored by our Mimosa Cloud service with rich data collection and analysis.

    The Dish Antenna

     This is a Complete High Gain Antenna that features our Light Weight 25dBi Dual Polarized 2x2 Mimo Parabolic Dish Antenna. The versatile adjustable feed system allows the antenna to be configured for Dual Polarization (Horizontal and Vertical) or for X-Polarization (+45° and -45°). It is a perfect match for 802.11a MIMO access points and bridges.

    CA195FR-NMNM-002F

    Altelix AX195FR™ is a high-performance 195-series coaxial cable that features a flexible fire retardant jacket and low insertion loss. These high-performance cables offer a superior alternative to RG58 and feature similar quality construction and electrical performance to Times Microwave LMR ®-195-FR and Commscope CNT ®-195-FR.Altelix AX195FR™ is ideal for applications where the flexible fire-retardant jacket is preferable such as in-building and mobile use.

    Performance

    • Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
    • Low Latency: < 1 ms in Auto Mode
    • Wireless Protocols: TDMA, TDMA-FD

    Radio

    • MIMO & Modulation: 4x4:4 MIMO OFDM up to 256QAM
    • Bandwidth*: Single or Dual 20/40/80 MHz channels
    • Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
    • Max Output Power:
      • 30 dBm (2-stream)
      • 27 dBm (4-stream)
    • Sensitivity ( MCS 0 ):
      • -87 dBm @ 80 MHz
      • -90 dBm @ 40 MHz
      • -93 dBm @ 20 MHz

    Power

    • Max Power Consumption: 20W
    • System Power Method: 48 V DC 802.3 at compliant power injectors
    • System Lightning & ESD Protection: 6 kV
    • PoE Power Supply: Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection

    Physical

    • Dimensions:
      • Height - 267 mm (10.5”)
      • Width - 158 mm (6.2”)
      • Depth - 74 mm (3”)
    • Weight: 1.6 kg (3.5 lbs)
    • Enclosure Characteristics: Outdoor UV stabilized plastic Aluminum mounting panel
    • Wind Survivability: 200 km/h (125 mph)
    • Wind Loading: 9.89 kg @ 160 km/h (21.8 lbs @ 100 mph)
    • Mounting: Dual standard pole straps for 30 mm (1.18”) to 90 mm (3.54”) OD pipes
    • Connector Type: Female Type N (x2), intended for use with dual polarization antenna

    •  The Dish Antenna

    • Frequency Range: 4900-6400 MHz

    • Bandwidth: 1500 MHz

    • Gain: 25 dBi

    • Polarization: Vertical & Horizontal or X-Pol (+45° & -45°)

    • Vertical Beamwidth: 7.5 Degrees

    • Horizontal Beamwidth: 7.5 Degrees

    • F/B Ratio: ≥32dB

    • Isolation: ≥28dB

    • VSWR: <1.6:1

    • Impedance: 50 Ohm

    • Maximum Power: 100 Watts

    • Antenna Connectors: Integral N Female (x2)

    • Dimensions: ∅15.7 x 10.5 Inches (∅400 x 267 mm)

    • Mast Diameter: 1.2 - 2.2 Inches (30 - 55 mm)

    • Weight: 5.8 Lbs. (2.6 Kg)

    • Temperature Range: -40° - 185°F (-40° - 85°C)

    • Lightning Protection: DC Short

    • Wind Loading Data

      Wind Speed (MPH)                            Loading

      100                                                       105 Ibs

      125                                                       164 Ibs

      Packaging Specifications

    • Packaging Dimensions: 19.5 x 18 x 6 Inches (495.3 x 457.2x152.4 mm)

    • Packaging Weight: 7.43 lbs (3.4 kg)
