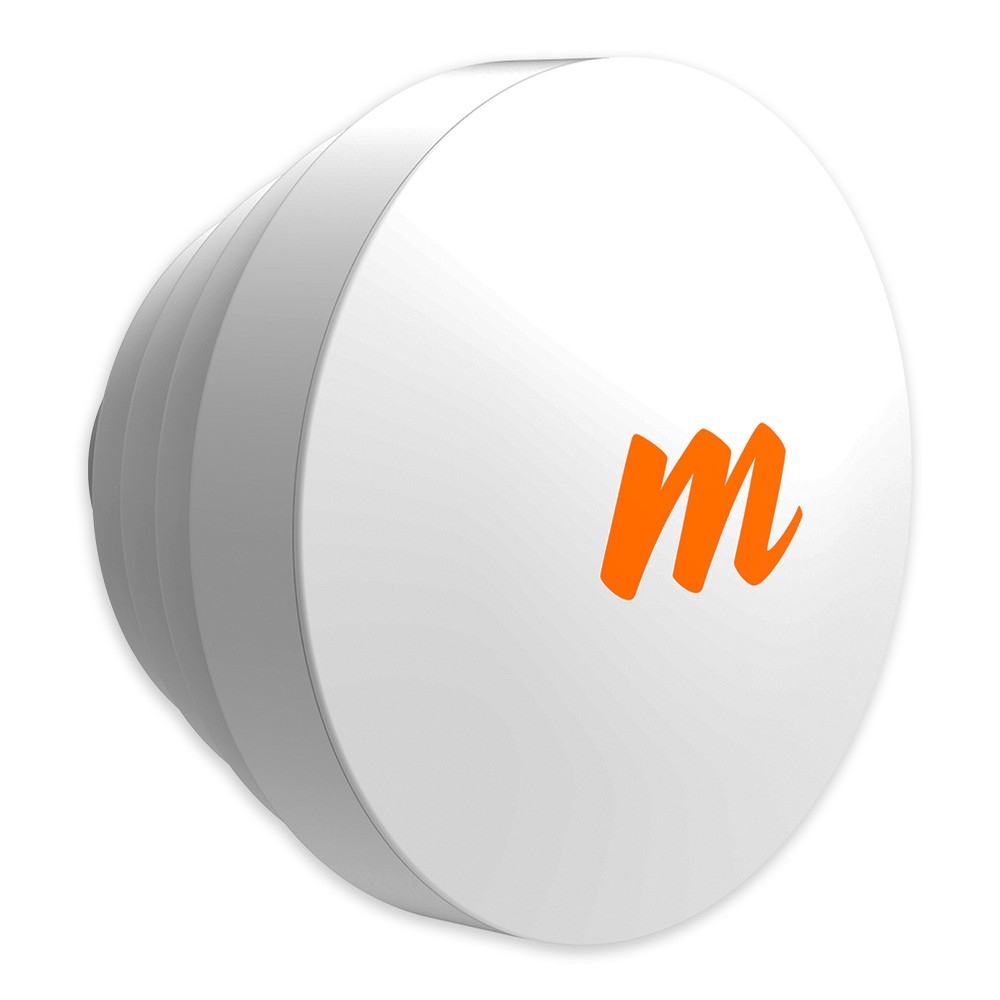

Mimosa N5-X16 twist-on, 4.9–6.4 GHz, 16 dBi, Dual-slant 45º, Horn Antenna


Model#: N5-X16

Sku: IT2696



MSRP: $39.99

In Stock

Your Price: $39.99






SKU: N5-X16

Mimosa N5-X16 twist-on, 4.9–6.4 GHz, 16 dBi, Dual-slant 45º, Horn Antenna

The Mimosa C5x is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra rugged solution provides extended frequency operation from 4.9–6.4GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased.

Integrated Radio with Modular Antenna Options

The C5x radio’s native 8 dBi gain can be increased to 12, 16, 20 or 25 dBi using Mimosa’s modular, N5-X, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility!

Incredible RF Performance

Available with either Cassegrain or horn antenna options, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Ultra Rugged

The C5x, with its die-cast aluminum metal enclosure, dual pole mounts, and industrial-grade twist-on antenna options, is custom-engineered to reduce noise, withstand the outdoor elements and stay mounted in harsh wind and extreme weather.

Extended Frequency 4.9–6.4 GHz

To escape the noise, the C5x lets you take advantage of licensed frequencies from 4.9 GHz up to 6.4 GHz, where allowed by local regulations, including the public safety band in the US. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.



Applications:

  • Broadband service providers
  • Public safety and first responders
  • Enterprise and campus building interconnecting
  • Multipoint distribution for WiFi, video security and Smart Cities

Specifications Mimosa N5-X16

Product N5-X16 (horn)
Gain 16 dBi
Polarization Dual-slant 45º
Beamwidth, Symmetric (3 dB) 22 dB
Front-to-Back Ratio (min) 50 dB
Front-to-Side Ratio (min) 43 dB
Weight of C5x + Antenna TBD
Dimensions Diameter: 160 mm (6.29”) Depth: 116 mm (4.57”)
Mount Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Wind Loading TBD



Max Throughput PTP: 700 Mbps IP (866 PHY) (requires PTP feature key)
PTMP: 500 Mbps IP (866 PHY) (requires PTMP speed feature key to go faster than 100BASE-T)
Wireless Protocols Mimosa SRS; WiFi Interop
Modes PTP Backhaul (requires feature key); PTMP Client
Radio
MIMO and Modulation 2x2:2 MIMO OFDM, up to 256 QAM
Bandwidth 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode
Frequency Range PTP/PTMP: 4900–6400 MHz (restricted by country of operation)
Max Output Power 27 dBm
Sensitivity (MCS0) -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz
Power
Max Power Consumption 9.2 W average; 12.9 W max
System Power Method Passive POE (24-56 VDC
PoE Power Supply Passive POE compliant, 24-56 V Power over Ethernet supply (not included)
Physical
Dimensions Height: 175 mm (6.89”) Width: 70 mm (2.75”) Depth: 61 mm (2.40”)
Weight 0.4 kg (0.89 lbs)
RF Connector Type Mimosa N5-X twist-on
Enclosure Characteristics Outdoor, die-cast aluminum, UV stabilized paint
Mounting Dual attached pole mount straps
Grounding Ground lug
Wind Survivability 200 km/h (125 mph)
Environmental
Outdoor Ingress Protection Rating IP55
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) max
Shock & Vibration ETS 300-019-2-4 class 4M5
Regulatory and Compliance
Approvals FCC Part 15.405 and Part 90Y CE/ETSI
EMI/Safety FCC Part 15 Class B EN 55022 Class B IEC61000 UL/IEC 60950-2 IEC/EN 60905-1
WEEE/ROHS Compliance Yes


Datasheet

PDF File Mimosa N5-X16 twist-on, 4.9–6.4 GHz, 16 dBi, Dual-slant 45º, Horn Antenna
