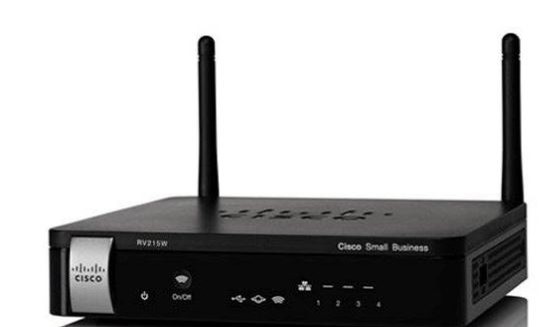

The Cisco RV215W Wireless-N VPN Router provides simple, affordable, highly secure, business-class connectivity to the Internet from small and home offices and remote locations.

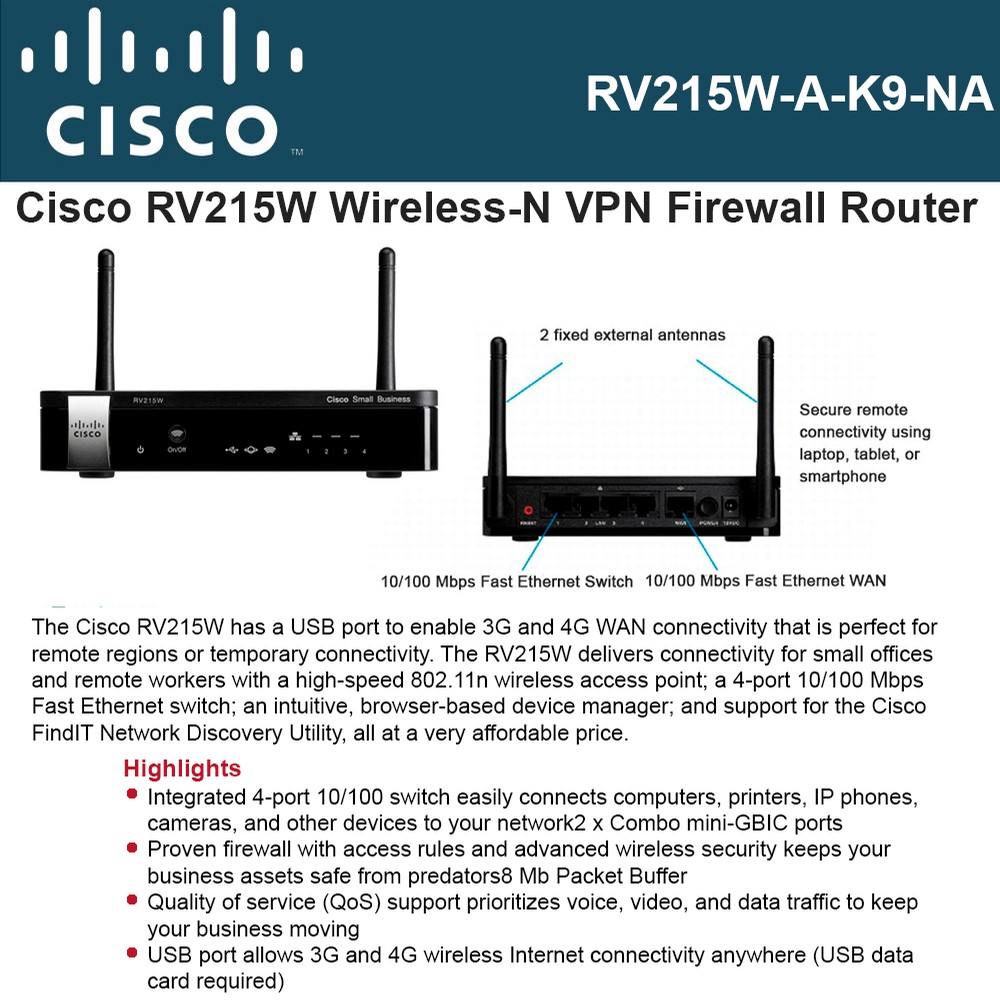

The Cisco RV215W has a USB port to enable 3G and 4G WAN connectivity that is perfect for remote regions or temporary connectivity. The RV215W delivers connectivity for small offices and remote workers with a high-speed 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its combination of business-class features, support for virtual networks that enable highly secure guest access, simple installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer employees to a new level, delivering support for the latest technologies. See Figure 1.
Product Overview
The Cisco RV215W Wireless-N VPN Router features:
Device Type: Wireless router - 4-port switch (integrated)
Enclosure Type: Desktop
Connectivity Technology: Wireless, wired
Data Link Protocol: Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band: 2.4 GHz
Selectable Channels Qty: 13
Performance: NAT throughput : 90 Mbps
VPN throughput : 5 Mbps
Capacity: Concurrent sessions : 5000
Network / Transport Protocol: PPTP, L2TP, IPSec, PPPoE, DHCP
Routing Protocol: RIP-1, RIP-2, static IP routing
Remote Management Protocol: SNMP 3, HTTP, HTTPS
Encryption Algorithm: Triple DES, WPA, WPA2, WEP
Features: Firewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, port mirroring, IPv6 support, Wireless Distribution System (WDS) support, URL filtering, firmware upgradable, Rapid Spanning Tree Protocol (RSTP) support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), DHCP server, DHCP relay, DHCP client, Class of Service (CoS)
Compliant Standards: IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11e, IEEE 802.11n, UPnP
Status Indicators: Power, WLAN, WAN, LAN, WPS
Line Coding Format: OFDM
Interfaces: LAN : 4 x 10Base-T/100Base-TX - RJ-45
WAN : 1 x 10Base-T/100Base-TX - RJ-45
USB : 1 x 4 pin USB Type A
Antenna: External integrated
Antenna Qty: 2
Directivity: Omni-directional
Gain Level: 1.8 dBi
Power Device: Power adapter - external
Width: 5.9 in
Depth: 5.9 in
Height: 1.2 in
Weight: 10.6 oz
Cables Included: 1 x network cable
Compliant Standards: FCC Class B certified, UL, C-Tick, cUL, IC
Localization: North America
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
