MODEL: TP-SW5G-NC

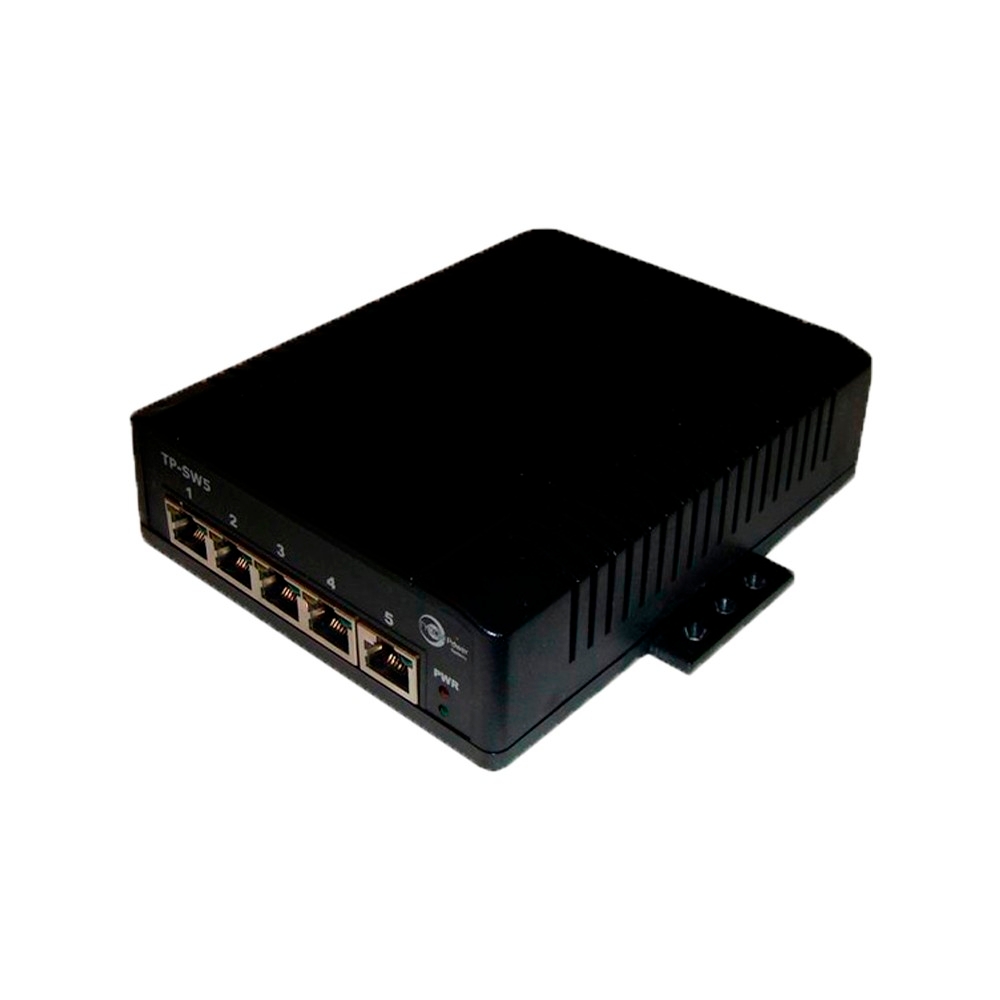

The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.

Universal Voltage 10/100/1000MB PoE Switch. Switch accepts universal voltage (12- 57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive PoE input on port 5. 1A per port

On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

Tycon Power sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting

Features
• High Power 10/100 and 1000Mb (“G”) PoE Switch
• Remotely Power Equipment thru CAT5 Cable up to 100m
• Up to 2A per Port
• Built-in Surge Protection
• Automatic MDI/MDI-X Crossover
• Automatic Speed and Duplex Sensing
• Compact Size
• High Temperature Operation
• CE and FCC Certification
• I.T.E. Power Supply, UL Listed
