TP-DCDC-2448GD-HP

Tycon Power Systems

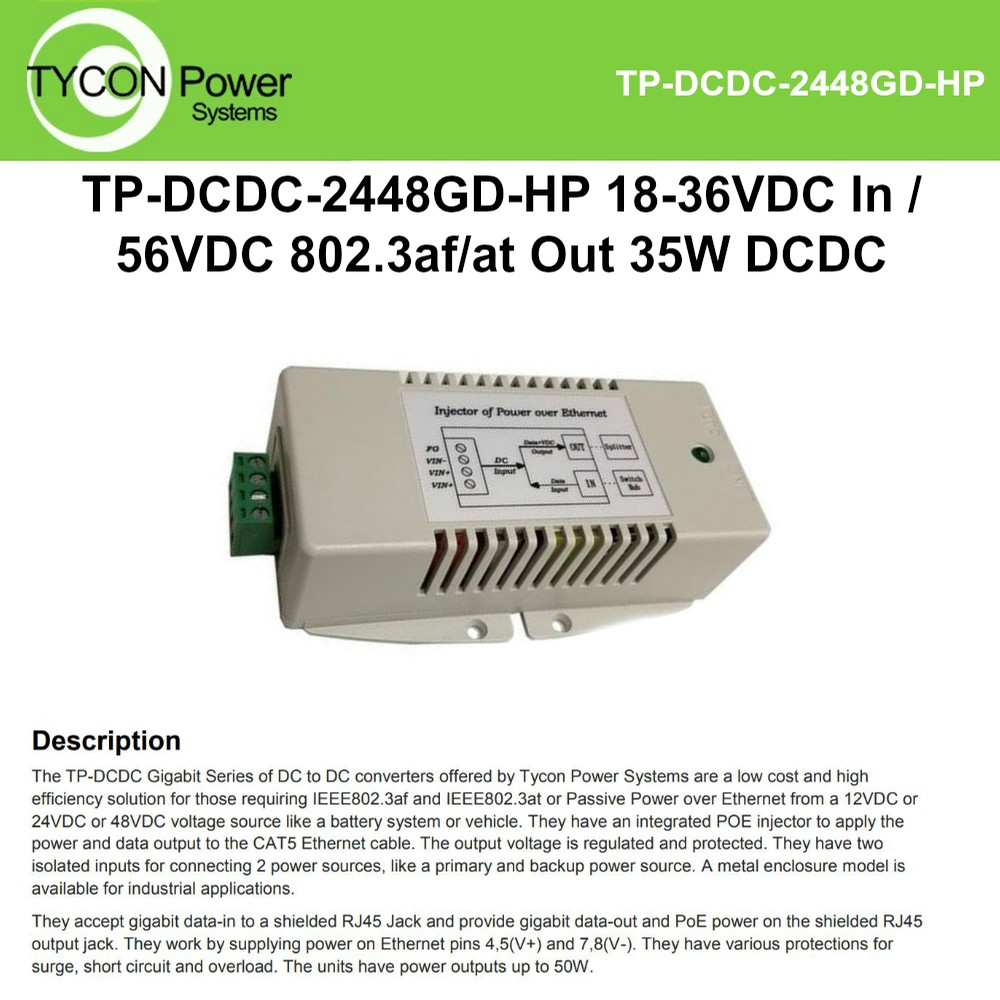

Tycon Power DC to DC converter 18-36VDC IN TP-DCDC-2448GD-HP with integrated PoE inserter output 35W


Product Highlights
  • 56V 35W Gigabit 802.3at PoE Inserter
  • 18-36VDC Wire Terminal Input
  • PoE Pinout: 4,5V+ ; 7,8V-
  • Integrated 10/100/1000MB PoE Inserter
  • Applications: 24V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems

    • Model#: TP-DCDC-2448GD-HP

    Sku: IT2848



    MSRP: $89.95


    Out of stock

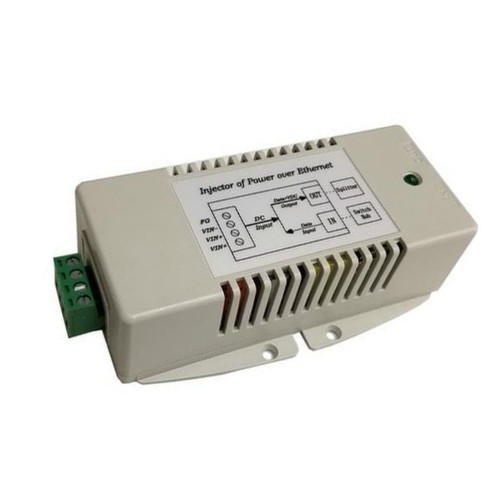

    The TP-DCDC-2448GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 18-36VDC battery system.

    They have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable.

    They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
    They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

    They have various protections for surge, short circuit and overload. The units have power output of 35W.

    • Input Voltage 18-36VDC; Output 56VDC 802.3af/at
    • Integrated POE Inserter
    • High Power 35W
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires
    • Operating Temp -30 to +60°C (-22 to +140°F)
    • Storage Temp -40 to +80°C (-40 to +176°F)
    • Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
    • Weight: 134g (4.7oz)
