TP-POE-HP-48Dx2

Tycon Power Systems

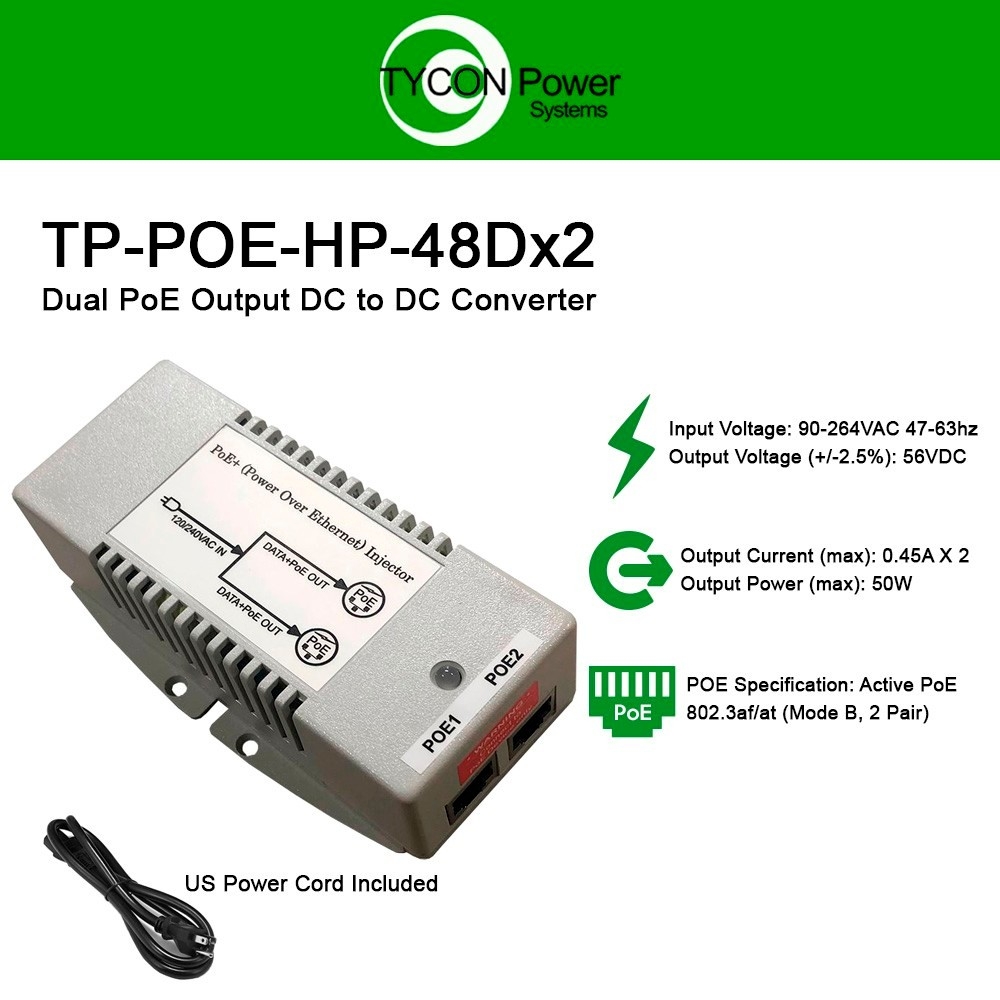

Tycon Power TP-POE-HP-48DX2 PoE injector with 120/240VAC IN dual 56VDC 802.3af/at OUT and 50W (1-Unit)


Product Highlights
  • The TP-POE-HP-48DX2 is a unique high power PoE injector with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector
  • They have a standard removable power cord input (North American Power Cord Included). They have various protections for short circuit, overload, and surges caused by ESD or lightning
  • The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected
  • The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues
  • Applications: 12VDC or 24VDC Remote Power Systems running on batteries; 110/220VAC Backup Power Systems; Power a Camera and Wireless using a single PoE Injector; Power a Wireless AP and Backhaul using a single PoE injector

    • Model#: TP-POE-HP-48Dx2

    Sku: IT2888



    MSRP: $189.95

    In Stock

    Your Price: $148.95






    MODEL: TP-POE-HP-48Dx2

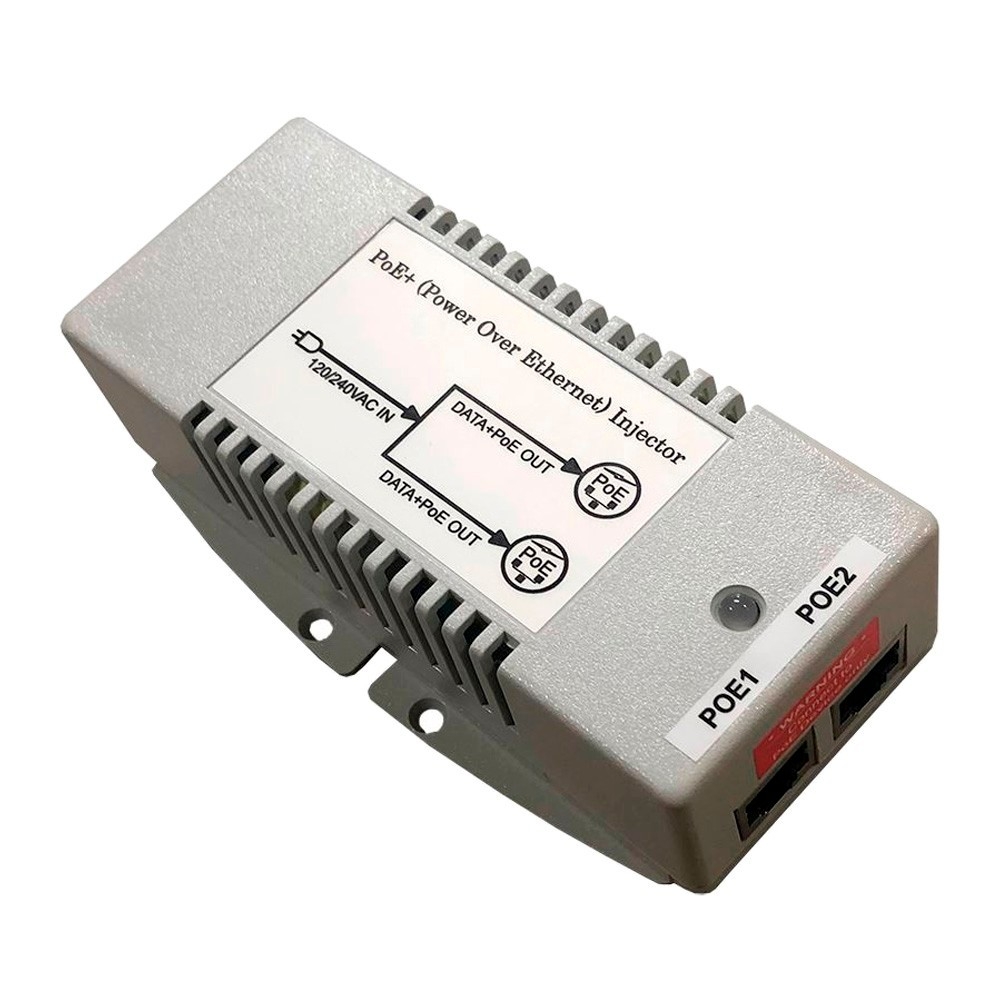

    The TP-POE-HP-48DX2 is a unique high power PoE injector with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the units is handled by the injector so no PoE switch is required.

    Power Output is 50W total or 25W per port.

    They have a standard removable power cord input (North American Power Cord Included). They have various protections for short circuit, overload, and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

    The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.

    • Input Voltage 90-264VAC 47-63hz
    • Input Connector IEC C13 (incl. Power Cord)
    • POE Specification Active PoE 802.3af/at (Mode B, 2 Pair)
    • Output Voltage (+/-2.5%) 56VDC
    • Ethernet Connectors RJ45 (Shielded) 10/100MB
    • Output Current (max) 0.45A X 2
    • Output Power (total) 50W
    • Self-Consumption Power 2W
    • Efficiency (min) 80%
    • Line Regulation, Ripple, Noise 1%
    • Load Regulation 5%
    • Surge Protection IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20µs)
    • Operating Temperature 25 to +50°C (-13 to 122°F)
    • Operating Humidity (RH) 5% - 90%
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 255g (4.7oz)
    • Manufacturer Warranty 3 Years
