TPSK12/24-160W

Tycon Power Systems

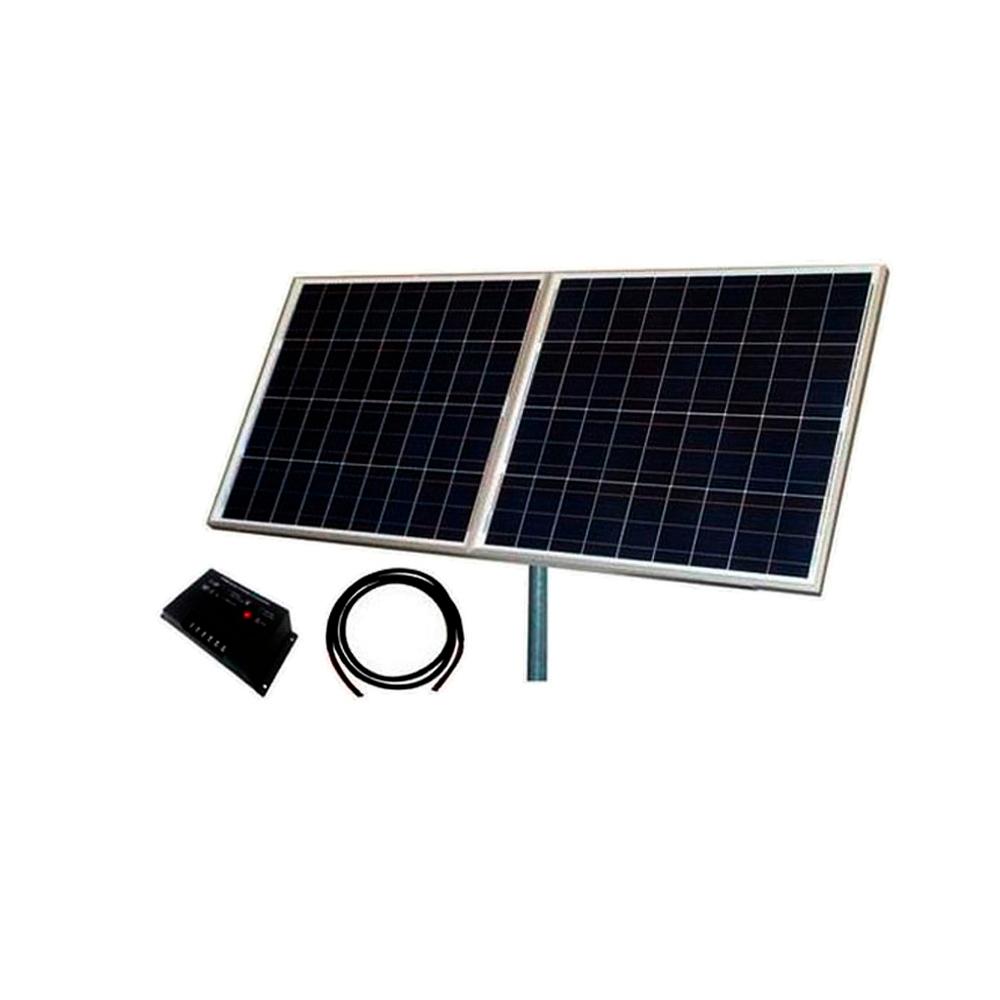

Tycon Power TPSK12/24-160W 160W 12V/24V solar panel kit with pole mount plus controller and cable



Product Highlights
  • 12/24V 160W Solar Kit with 2x 12V 80W Solar Panels, Controller, Mount, Cable
  • 12/24V Autodetect 20A PWM Solar Charge Controller with Status Display and 20A Load Control
  • 2-4 inches Pole Diameter Side of Pole/Wall Mount with 15-65deg Tilt Adjust
  • Stainless and Aluminum Construction for Long Life in Harsh Environments
  • Applications: Remote Power Stations; Wireless Base Stations; Lighting Applications; Surveillance Applications
  • Model#: TPSK12/24-160W

    Sku: IT2931



    MSRP: $694.99


    Out of stock

    Tycon Power Systems 12V/24V 160W solar kit

    The TPSK series of solar panel kits come complete with high efficiency multicrystalline solar panel, side of pole/wall mounts, PWM Charge Controller and outdoor rated 12AWG cable. They are ready for quick connection to Tycon Power Systems outdoor UPSPro™ Systems or any other application requiring solar power. The panels provide excellent low light performance and long life (25years). The rugged aluminum frame and high transparency, low iron, tempered glass withstands high wind, hail and snow loading. The mounts are heavy duty aluminum with stainless steel hardware. They are a simplified design that makes them easy to install, saving precious installer time. The mounts are designed for pole mounting but can also be wall mounted. They provide quick tilt adjustment for positioning the panel to proper sun angles for summer and winter sun.

    The 160W solar kit comes with two 80W solar panels that can be wired in 12V or 24V configuration.

    Applications

    • Remote Power Stations
    • Wireless Base Stations
    • Lighting Applications
    • Surveillance Applications
    • Solar Panel Voltage/Capacity 12V/24V 160W
    • Solar Panel Max Current 8.86A
    • Solar Panel Size 26” x 68”
    • Solar Panel Model TPS-12-80W x 2
    • Pole Diameter 2” to 4.5”
    • Pole Mount Model TPSM-80x4-UNI
    • Wind Speed Rating 90MPH
    • Charge Controller Model TP-SC24-20
    • Cable – 2 Cond – Outdoor 12AWG x 20’
    • Operating Temperature -40C to +85C
    • Shipping Weight 24kg (53lb)
