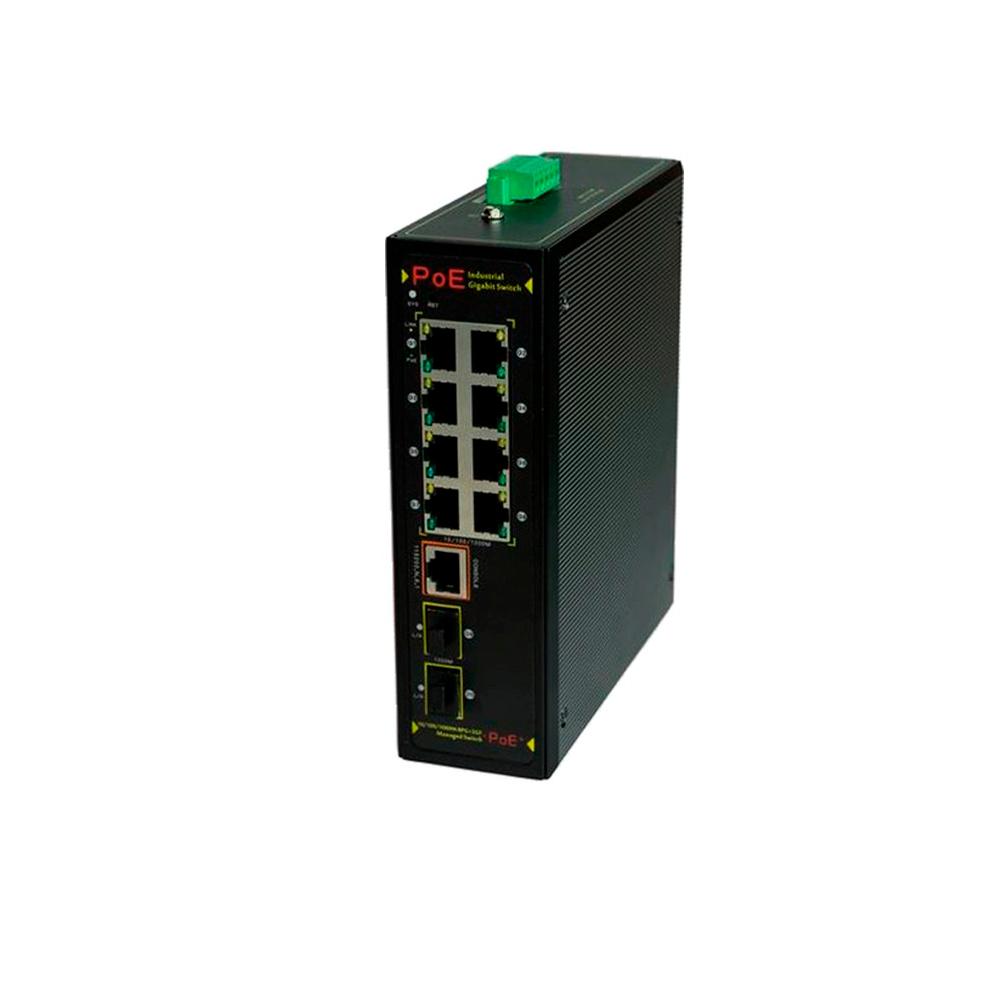

The TP-SW8G-2SFP Power over Ethernet (PoE) 10 port Gigabit switches offered by Tycon® are fully automatic high speed Layer 2+ Ethernet manageable switches. The 10 port model has 8 PoE + 2 SFP ports. The PoE ports are Mode A (pins 1,2,3,6) type and are manageable via the user interface. They can be set to PoE, PoE+ or OFF. Default is PoE+.

The switch features security protocols like SSH and SSL for secure access of the switch command interface. The interface can be accessed via the serial console port or any of the Ethernet ports. The command interface can be controlled via web browser, command line interface(CLI), TELNET, SSH or SNMP.

With L2+ features, the switches provide better manageability, security, QOS features and performance. VLAN, Port Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm Control, IP Source Guard, Access Control Lists, PoE+ management are just some of the features available with this Industrial PoE Switch.

This switch can be powered by 12VDC to 36VDC if no PoE output is required or powered from 48VDC to 57VDC if PoE is required.

It's compatible with Category 5 or higher Ethernet cables with network distances up to 100m. The optical range for fiber ports is up to 20km. The RJ45 connectors are shielded and grounded to the case. The units have surge protection on all ports and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.

Applications

• Outdoor Network Installations
• Cameras and Wireless Radios
• Factory networks
