TP3000WC

Tycon Power Systems

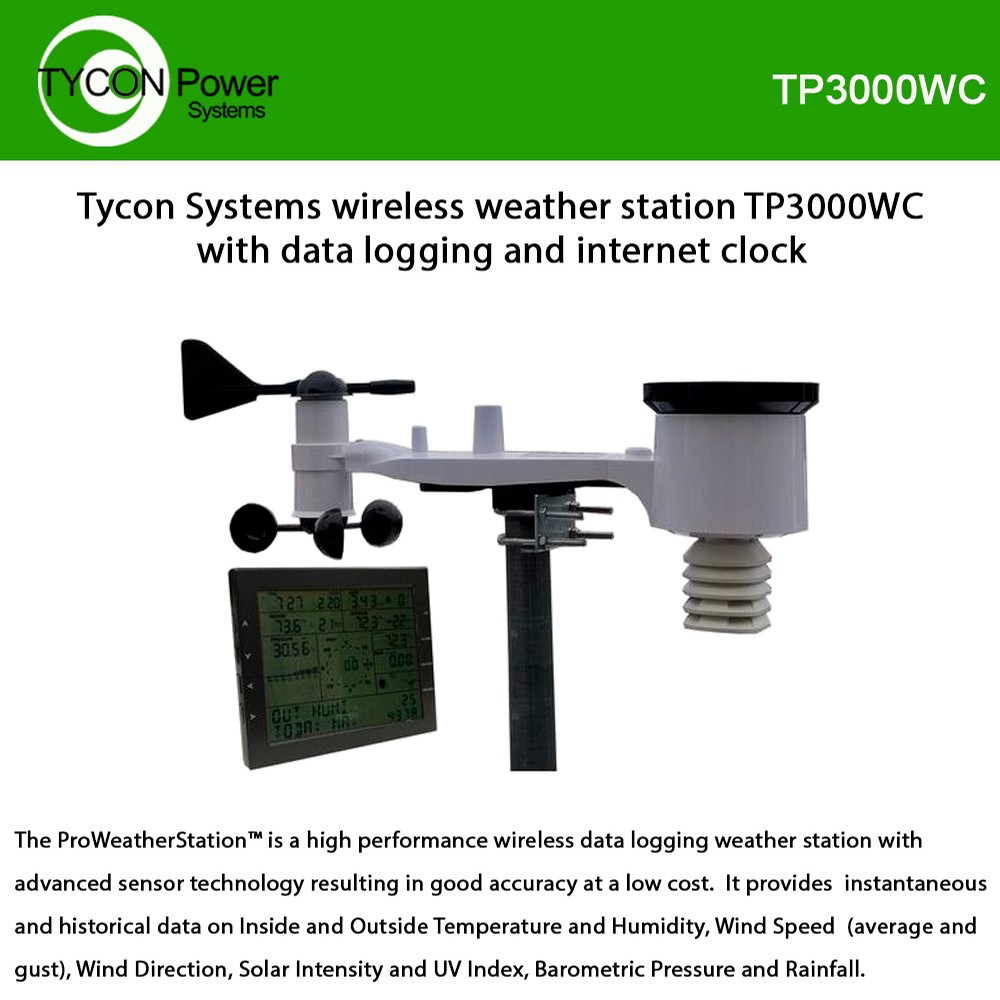

Tycon Power Systems Wireless Weather Station TP3000WC with Data Logging and Internet Clock



Product Highlights
  • Professional Solar and Wireless Weather Station with WiFi and Data Logging
  • Up to 330 Ft (100m) Wireless Range Between Transmitter and Base Station
  • Indoor and outdoor Temp and Humidity
  • Wind Speed and Direction, Rainfall, Solar Intensity
  • Applications: Weather Tracking and Forecasting; Solar Insolation Site Survey; Wind Turbine Site Survey; Remote Temp / Humidity Monitoring
  • Model#: TP3000WC

    Sku: IT2992



    MSRP: $117.99


    Out of stock

    The ProWeatherStation™ is a high performance wireless data logging weather station with advanced sensor technology resulting in good accuracy at a low cost. It provides instantaneous and historical data on Inside and Outside Temperature and Humidity, Wind Speed (average and gust), Wind Direction, Solar Intensity and UV Index, Barometric Pressure and Rainfall. The backlit base station logs 4080 data points with adjustable sample interval. There is a memory meter on the display that shows when the memory is getting full so the data can be downloaded and archived to a computer thru WiFi and the included WeatherSmart WiFi software. The base station also allows automatic upload of data to Weather Underground and Weather Cloud via WiFi with no PC necessary.

    The unit has an internet clock for improved accuracy. The Base Station runs on 3 AA Alkaline or Lithium batteries and can be mounted up to 100m (330 feet) away from the transmitter/sensor array. To use the WiFi feature, the Base Station must be powered with the included 5V power adapter. The transmitter/sensor array is solar powered and requires 2 AA batteries (included) for backup power.

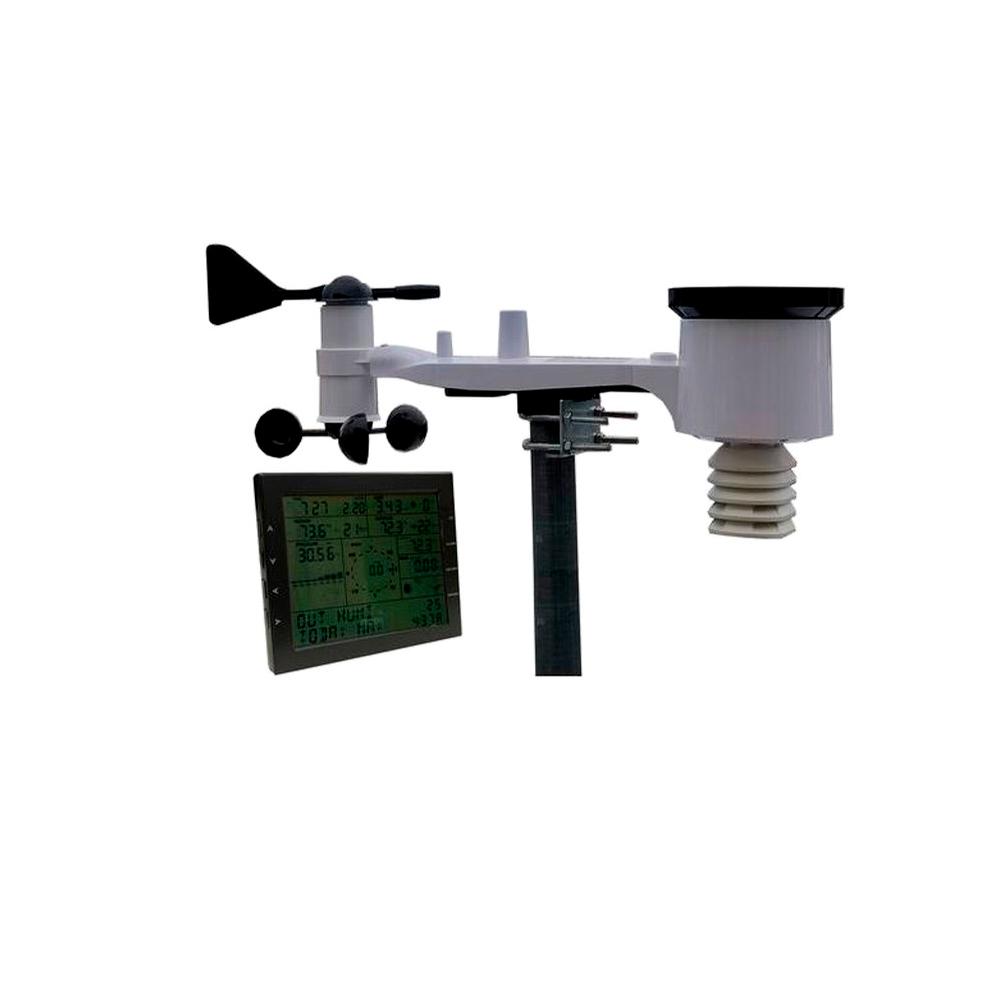

    The ProWeatherStation™ comes with an advanced solar powered sensor array (anemometer, wind direction meter, temp/humidity sensor, rain gauge, solar/light sensor), Ubolt brackets for mounting to a 1-1.6” pole, WiFi enabled wireless base station/display, 5V AC/DC adapter, and WeatherSmart WiFi Windows software. Note: 3 AA alkaline or Lithium batteries for the base station backup power are not included.

    Applications

    • Weather Tracking and Forecasting
    • Solar Insolation Site Survey – Measure how much sun power is available at a particular site
    • Wind Turbine Site Survey – Record wind speed at site over time to determine available true wind power
    • Remote Temperature and Humidity Monitoring

    Wireless Transmitter / Sensor Array

    • Operating Frequency 433 MHz
    • Update Interval 48 secs
    • Operating Distance Up to 100 meters (300 feet) between transmitter and base station
    • Wind Survivability 200 km/h (125 mph)
    • Construction UV resistant white thermoplastic
    • Power Source Solar Powered, AA Batteries (included) for backup
    • Mounting Top of Pole (1-1.6” dia) mount using 2 stainless u-bolts

    Base Station Specs

    • Setup Base Station or Computer (WiFi setup via smartphone app – WSTOOLS)
    • Display Backlit LCD, White Colored Frame
    • Memory Capacity 4080 data samples (memory meter on display)
    • Computer Interface WiFi
    • Included Software WeatherSmart WiFi Windows software
    • Batteries 3 type AA LR6 Alkaline (not included) gives 1 year battery life. To extend battery life, Base Station can also be powered via 5V AC adapter (included).
    • Dimensions (L x W x H) 177 x 152 x 50mm (7” x 6” x 2”)
    • Mounting Wall or desktop
