SLM2024PT-NA

Cisco

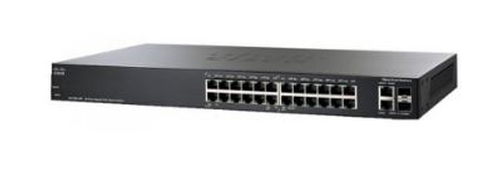

Cisco SG200-26P 26-Port Gigabit Switch 12-ports PoE 100W + 12 x 10/100/1000 + 2 x Gigabit SFP


Model#: SLM2024PT-NA

Sku: IT3240



MSRP: $499.00


Out of stock

  • The Cisco 200 Series is a series of affordable smart switches that combine powerful network performance and reliability with the essential network management features you need for a solid business network.

  • These expandable Fast Ethernet or Gigabit Ethernet switches provide basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface, Cisco Discovery Protocol, and Cisco Smartports, you can deploy and configure a rock-solid business network in minutes.

  • Device Type: Switch - 26 ports

  • Enclosure Type: Rack-mountable

  • Ports: 24 x 10/100/1000 + 2 x combo Gigabit SFP

  • Power Over Ethernet (PoE): Yes

  • Performance: Switching capacity : 38.69 Mpps

  • Forwarding performance (64-byte packet size) : 52 Gbps

  • MAC Address Table Size: 8000 entries

  • Jumbo Frame Support: Yes

  • Remote Management Protocol: RMON, HTTP, TFTP

  • Encryption Algorithm: MD5

  • Authentication Method: RADIUS

  • Features: Layer 2 switching, DHCP support, power over Ethernet (PoE), BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping

  • Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x

  • RAM: 128 MB

  • Flash Memory: 16 MB

  • Status Indicators: Link activity, port transmission speed, system, PoE

  • Interfaces: 12 x 10Base-T/100Base-TX/1000Base-T - RJ-45

  • 12 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE

  • 2 x SFP (mini-GBIC)

  • Power Device: Power supply - internal

  • Voltage Required: AC 120/230 V ( 50/60 Hz )

  • Width: 17.3 in

  • Depth: 10.1 in

  • Height: 1.7 in

  • Weight: 8.4 lbs

  • Mounting Kit: Included

  • MTBF: 218,842 hour(s)

  • Compliant Standards: CE, UL 60950, FCC Part 15 A, CSA 22.2

  • Localization: Chinese (simplified), English, German, French, Italian, Spanish, Japanese

  • Service & Support: Limited lifetime warranty

  • Service & Support Details: Limited warranty - lifetime

  • Technical support - web support - 1 year

  • Technical support - phone consulting - 1 year

  • Min Operating Temperature: 32 °F

  • Max Operating Temperature: 104 °F

  • Humidity Range Operating: 10 - 90% (non-condensing)

  • Min Storage Temperature: -4 °F

  • Max Storage Temperature: 158 °F

  • Humidity Range Storage: 10 - 90% (non-condensing)
