SG200-50FP-NA

Cisco

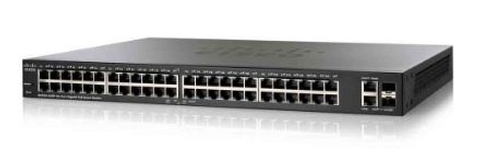

Cisco Smart SG200-50FP Switch 50 ports Managed Desktop, Rack-Mountable


Model#: SG200-50FP-NA

Sku: IT3342



MSRP: $869.99


Out of stock

Main Features:

Switch

Managed

48 x 10/100/1000 (PoE) + 2 x combo Gigabit // SFP

Desktop

Rack-mountable

PoE



Cisco small business 200 series smart switches combine powerful network performance with reliability to help you build a basic business network. Affordable and easy to use, these entry-level, web-managed switches deliver the essential network features you need. Enjoy speedy file transfers, keep vital business applications available, and help your employees respond faster to customers and each other.



Capacity:

  • Type: Virtual interfaces (VLANs)
  • Value: 16

Dimensions & Weight:

  • Depth: 13.8 in
  • Height: 1.7 in
  • Weight: 12.1 lbs
  • Width: 17.3 in

Environmental Parameters:

  • Humidity Range Operating: 10 - 90% (non-condensing)
  • Humidity Range Storage: 10 - 90% (non-condensing)
  • Max Operating Temperature: 113 °F
  • Max Storage Temperature: 158 °F
  • Min Operating Temperature: 32 °F
  • Min Storage Temperature: -4 °F

Flash Memory:

  • Installed Size: 16 MB

Header

  • Brand: Cisco
  • Compatibility: Mac , PC
  • Country Kits: North America
  • Manufacturer: Cisco Systems
  • Model: SG200-50FP
  • Packaged Quantity: 1
  • Product Line: Cisco Small Business Smart

Interface Provided:

  • Comments: PoE
  • Connector Type: RJ-45
  • PoE Power: 15.4 W
  • Qty: 48
  • Type: 1000Base-T
  • Qty: 2
  • Connector Type: SFP
  • Type: 1000Base-X

Miscellaneous:

  • Authentication Method: RADIUS
  • Compliant Standards: CSA 22.2 , FCC Part 15 A , UL 60950
  • Encryption Algorithm: MD5
  • Height (Rack Units): 1

Networking:

  • Compliant Standards: IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
  • Features: BOOTP support , Broadcast Storm Control , DHCP support , DiffServ support , IGMP snooping , IPv6 support , Jumbo Frames support , Layer 2 switching , MLD snooping , Multicast Storm Control , Port mirroring , Power over Ethernet (PoE) , Quality of Service (QoS) , SNTP support , Spanning Tree Protocol (STP) support , Syslog support , Trivial File Transfer Protocol (TFTP) support , Unicast Storm Control , VLAN support , Weighted Round Robin (WRR) queuing
  • Form Factor: Desktop , Rack-mountable
  • Jumbo Frame Support: Yes
  • MAC Address Table Size: 8000 entries
  • Manageable: Yes
  • PoE Budget: 375 W
  • Ports Qty: 50
  • Power Over Ethernet (PoE): PoE
  • Remote Management Protocol: HTTP , RMON , TFTP
  • Status Indicators: Link activity , PoE , Port transmission speed , System
  • Subcategory: Network hubs and switches
  • Subtype: Gigabit Ethernet
  • Type: Switch

Performance:

  • Type: Switching capacity
  • Value: 100 Gbps
  • Type: Forwarding performance (64-byte packet size)
  • Value: 74.41 Mpps

Ports:

  • Qty: 48
  • Type: 10/100/1000 (PoE)

Ports (2nd):

  • Qty: 2
  • Type: Combo Gigabit SFP

Power Device:

  • Frequency Required: 50/60 Hz
  • Nominal Voltage: AC 120/230 V
  • Type: Internal power supply

RAM:

  • Installed Size: 128 MB

Service:

  • Support Details Full Contract Period: Lifetime
  • Support Details Type: Limited warranty
  • Support Details Full Contract Period: 1 year
  • Support Details Service Included: Web support
  • Support Details Type: Technical support
  • Support Details Service Included: Phone consulting

Service & Support:

  • Type: Limited lifetime warranty
