NSM5 X 2

Ubiquiti

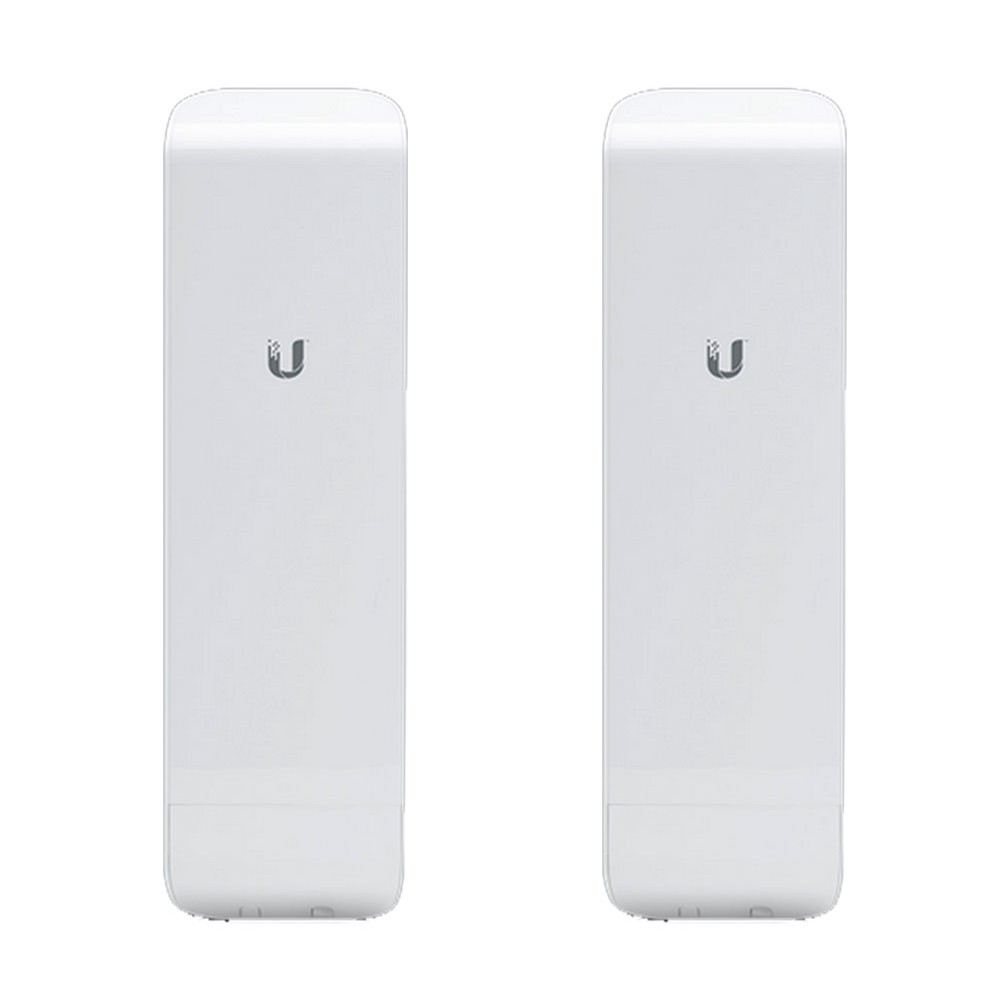

Ubiquiti Networks NSM5 NanoStation M5 5GHz Outdoor airMAX CPE 150+ Mbps 15+ km distance (2 pack)


Model#: NSM5 X 2

Sku: IT3484

Out of stock

Model: NSM5-US (2-Pack)

NanoStation M Indoor/Outdoor airMAX CPE

Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

NanoStation NSM5: 5GHz 802.11g/n hi-power (27dBm) 2x2 MIMO airMAX TDMA PoE station. This is the ultimate 5 Ghz wireless outdoor CPE with integrated 14dBi dual polarity anten5na.


  • Compact CPE Design

The NanoStation M features the CPE design that expanded the global Wireless ISP industry.

  • Versatile Application Use

The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

  • Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

  • Powerful airOS Features

Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration, and system management services.

  • Operation mode AP, Client, WDS
  • Frequence 5,4 - 5.825 GHz
  • DHCP yes
  • Transmission speed 300 Mbps
  • Standards 802.11a/n
  • Chipset Atheros
  • TX Power regulation yes
  • Max.output power 27 dBm
  • Sensitivity -96 dBm
  • Modulation OFDM
  • Encryption WEP 64/128/152, WPA, WPA2, 802.1X
  • LAN port 2x RJ45 10/100 Mbps
  • Default IP 192.168.1.20
  • Default name ubnt
  • Default password ubnt
  • Power supply 15 V, 0,8 A
  • Operational temperature -30 - 80 °C
  • Dimension 294 x 80 x 30 mm
  • Interface LAN, WiFI
  • Supported OS AirOS V
  • Polarization H/V
  • Radiating angle - H 43°/41°
  • Radiating angle - V 15°
  • Procesor MIPS 24KC, 400 MHz
  • RAM 32 MB
  • NAND 8 MB
