BulletM2-HP BND 02

Ubiquiti

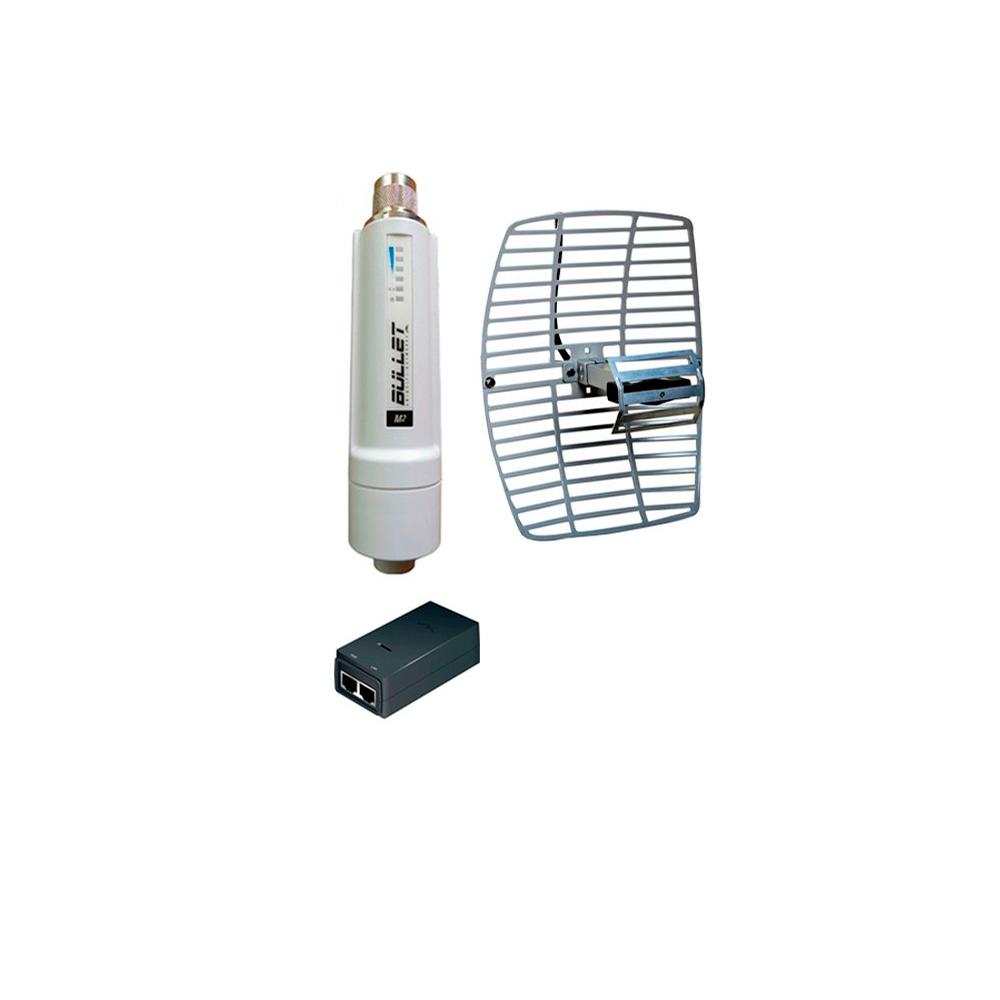

Ubiquiti BulletM2-HP airMAX outdoor Radio w/ 24dbi grid antenna BM2HP 600mW Bullet M2HP PoE included



Product Highlights
  • The ANT2325D24A Parabolic Grid Antenna offers high gain and quality construction. It is ideal for long range point-to-point or point-to-multipoint operation in the 2.4 GHz Wi-Fi Band.
  • The antenna's precise beam pattern and excellent front-to-back ratio help reduce unwanted interference.
  • This antenna's powder coated die-cast aluminum grid offers corrosion resistance and diminished wind loading.
  • The weather resistant feed assembly offers low VSWR and features a 12 inch antenna lead with multiple connector options available. It can be installed for either vertical or horizontal polarization.
  • This compact directional grid antenna consists of the 2-piece die-cast reflector, feed assembly, pole mounted 60 degree tilt & swivel bracket and assembly hardware.
  • Model#: BulletM2-HP BND 02

    Sku: IT3488



    MSRP: $119.99


    Out of stock

    Model: BulletM2-HP US

     The 2.4 GHz High Power Bullet Access Point from Ubiquiti Networks is designed for outdoor use and has an Atheros MIPS 74KC, 2.4 GHz processor. It features 16MB SDRAM, 4MB flash, a networking interface of 10/100 BASE-TX (Cat5, RJ-45), passive power over Ethernet and 10 to 24 VDC. The Access Point is equipped with an integrated N-type male jack RF connector (connects directly to antenna).Ubiquiti Bullet M2HP Plug and Go 100Mbps+ of REAL TCP/IP Throughput over outdoor multi-km links 2.4GHz Hi Power 802.11N Outdoor Radio System

    +

    Model: ANT2325D24A

    The ANT2325D24A Parabolic Grid Antenna offers high gain and quality construction. It is ideal for long range point-to-point or point-to-multipoint operation in the 2.4 GHz Wi-Fi Band. The antenna's precise beam pattern and excellent front-to-back ratio help reduce unwanted interference.

    This antenna's powder coated die-cast aluminum grid offers corrosion resistance and diminished wind loading. The weather resistant feed assembly offers low VSWR and features a 12 inch antenna lead with multiple connector options available. It can be installed for either vertical or horizontal polarization.

    This compact directional grid antenna consists of the 2-piece die-cast reflector, feed assembly, pole mounted 60 degree tilt & swivel bracket and assembly hardware.

    BulletM2-HP

    • 100Mbps+ of REAL TCP/IP Throughput over outdoor multi-km links
    • Just Plug and Go.
    • Processor Specs: Atheros SOC, MIPS 24 KC, 400MHz
    • Memory Information: 32MB SDRAM, 8MB Flash
    • Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
    • Approvals: FCC Part 15.247, IC RS210, CE
    • RoHS Compliance: YES
    • RF Connector: Integrated N-type Male Jack (connects directly to antenna)
    • Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)



    ANT2325D24A

    • Frequency Range 2400-2500 MHz
    • Bandwidth 100MHz
    • Gain 15 dBi
    • Polarization Vertical or Horizontal
    • Maximum Power 100 Watts
    • Dimensions 11.8x15.7 Inches (300x400 mm)
    • Mast Diameter    1.2 - 2.3 Inches (30-60 mm)
    • Weight    2.6Lbs. (1.2 Kg)
