R5AC-PTP+RD-5G30-LW

Ubiquiti

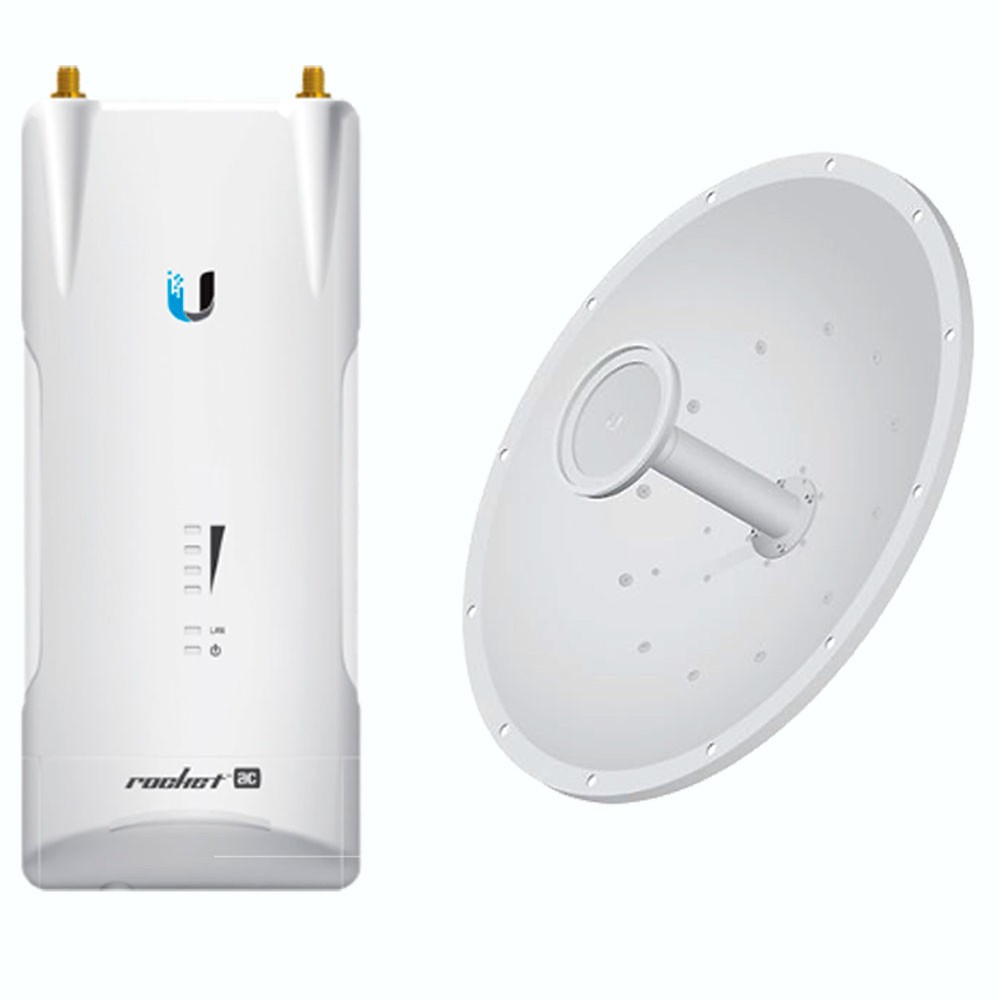

Ubiquiti R5AC-PTP US Rocket5ac PtP Mid-Band and RocketDish RD-5G30-LW Lightweight Bridge Dish 30dBi


Model#: R5AC-PTP+RD-5G30-LW

Sku: IT3494



MSRP: $328.00


Out of stock

Model: R5AC-PTP US

Ubiquiti Rocket5ac PtP Mid-Band 5GHz 450Mbps airMAX AC 27dBm AirPrism

The Ubiquiti Networks RocketDish, the R5AC-PTP Rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal

+

Model: RD-5G30-LW

Ubiquiti  RocketDish 30dBi 5GHz airMAX 2x2 PtP Bridge Dish Antenna

The RD-5G30-LW RocketDish AirMax 30 dBi, 5.1 to 5.9 GHz, Carrier Class 2x2 PtP Bridge Dish Antennas from Ubiquiti Networks helps create powerful 2x2 MIMO Point-to-Point (PtP) bridging and network backhaul applications when paired with a Rocket M BaseStation (available separately). RocketDish Antennas and Rocket M radios have been designed to seamlessly work together.

Model: R5AC-PTP US (1 Unit)

  • Outdoor UV Stabilized Plastic Enclosure
  • 720 MHz Atheros MIPS 74Kc Processor
  • 128MB DDR2 SDRAM / 16MB NOR Flash Memory
  • 1 x 10/100/1000 Mbps Network Interface
  • 2 x RP-SMA Waterproof RF Connections
  • Integrated Power, Ethernet, Signal LEDs
  • Intelligent QoS
  • High Capacity & Scalability
  • High-Speed, Carrier-Class Links
  • airMAX ac Technology

+

Model: RD-5G30-LW (1 Unit)

  • 5.1 to 5.9 GHz Frequency
  • 30 dBi Gain
  • 5.8° Beamwidth
  • 30 dB F/B Ratio
  • 1.6:1 Max. VSVR
  • Dual-Linear Polarization
  • 35 dB Min. Cross-pol Isolation
