UAP-AC-SHD-US-3PK

Ubiquiti

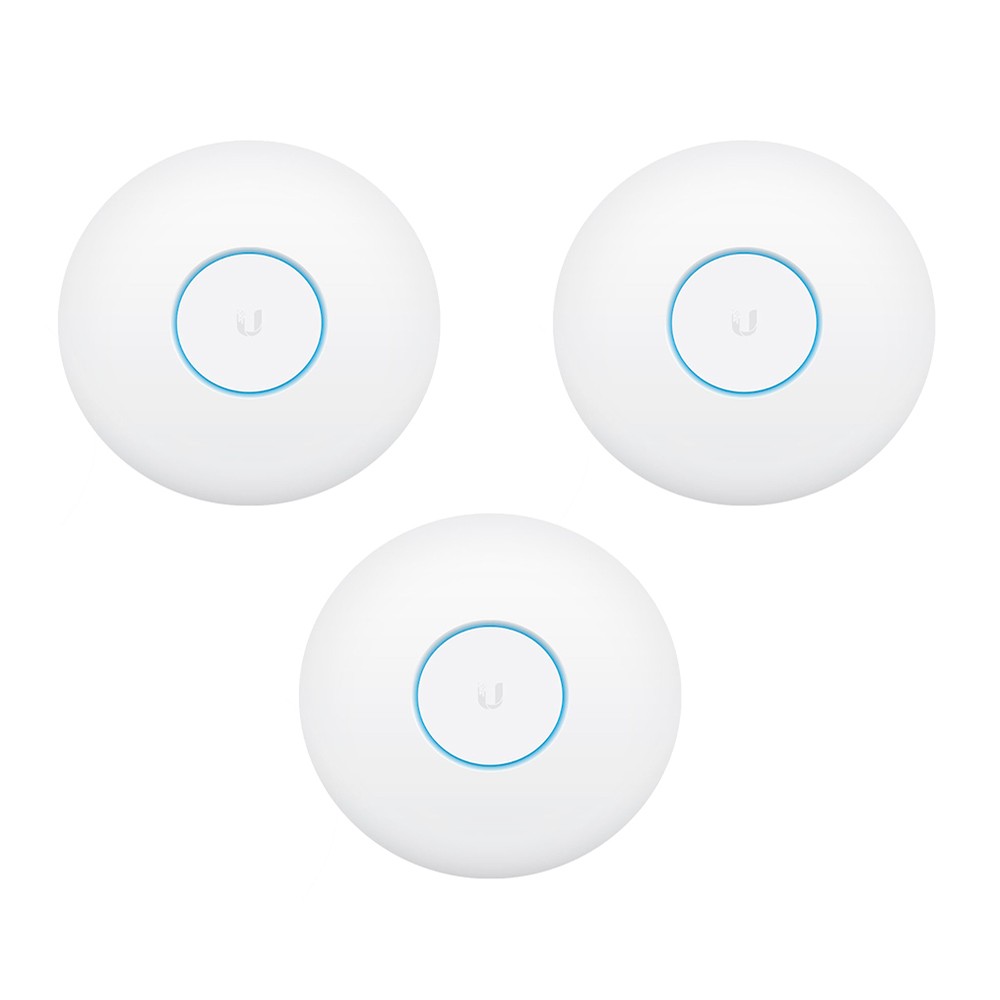

Ubiquiti UniFi AP SHD UAP-AC-SHD-US 802.11AC Wave 2 High-Density Dual Band Access Point (3-Pack)


Product Highlights
  • Ubiquiti UniFi AP SHD UAP-AC-SHD-US 802.11AC Wave 2 High-Density Access Point with Dedicated Security Radio (3-Pack)
  • 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.
  • Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency
  • Antenna system optimized for 802.11ac Wave 2 MU-MIMO beamforming
  • Data sent and received using multiple antennas to increase throughput and range

    • Model#: UAP-AC-SHD-US-3PK

    Sku: IT3514



    MSRP: $1,539.99


    Out of stock

    Model: UAP-AC-SHD-US  (3-Pack)

    Unifi SHD Access Point AC High Density Dedicated Security Radio

    Deploy UniFi AC HD AP in high-density environments requiring maximum wireless performance. The UniFi AC HD AP features simultaneous dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. The Wave 2 MU-MIMO technology allows the AP to communicate with multiple clients at the same time - significantly increasing multi-user throughput and overall user experience. The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. It combines the performance increases from MU-MIMO technology and the use of 4x4 spatial streams to deliver up to 125% greater performance than a typical Wave 1 AP.


    • Radio Hardware Acceleration

    Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency.

    • CPU Hardware Acceleration

     Dedicated hardware offload for QoS, guest control, and client management

    • Optimized for MU-MIMO

    Antenna system optimized for 802.11ac Wave 2 MU-MIMO beamforming



    Product Specifications
    • Dimensions: 220 x 220 x 49.1mm (8.66 x 8.66 x 1.89")
    • Weight: 700g (1.54lbs)
    • Weight w/ Mounting Kits: 830g (1.83lbs)
    • Networking Interface: (2) 10/100/1000 Ethernet Ports
    • Buttons: Reset
    • Power Method: Passive Power over Ethernet (48V), 802.3at PoE+ Supported
    • Supported Voltage Range: 44 to 57VDC
    • Power Supply: 48V, 0.5A PoE Gigabit Adapter
    • Power Save: Supported
    • Maximum Power Consumption: 17W
    • TX Power:
         2.4GHz: 6-25dBm
         5GHz: 6-25dBm
    • Antennas:
         2.4GHz: (2) Dual-Port, Dual-Polarity Antennas, 3dBi each
         5GHz: (2) Dual-Port, Dual-Polarity Antennas, 4dBi each
    • Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • BSSID: Up to Four per Radio
    • Mounting: Wall/Ceiling (Kits Included)
    • Operating Temperature: -10 to 70°C (14 to 158°F)
    • Operating Humidity: 5 to 95% non-condensing
    • Certifications: CE, FCC, IC

    Advanced Traffic Management
    • VLAN: 802.1Q
    • Advanced QoS: Per-User Rate Limiting
    • Guest Traffic Isolation: Supported
    • WMM: Voice, Video, Best Effort, and Background
    • Concurrent Clients: 500+

    Supported Data Rates (Mbps)
    • 802.11a: 6, 9, 12,18, 24, 36, 54 Mbps
    • 802.11n: 6,5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
    • 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    Product Includes:
    • (1) UniFi AP AC HD
    • (1) Mounting Bracket
    • (1) Ceiling Backing Plate
    • (4) Flat Head Screws
    • (4) Keep Nuts
    • (4) Screws
    • (4) Screw Anchors
    • (1) Gigabit PoE (48V, 0.5A) with Mount Bracket
    • (1) Power Cord
    • (1) Quick Start Guide
