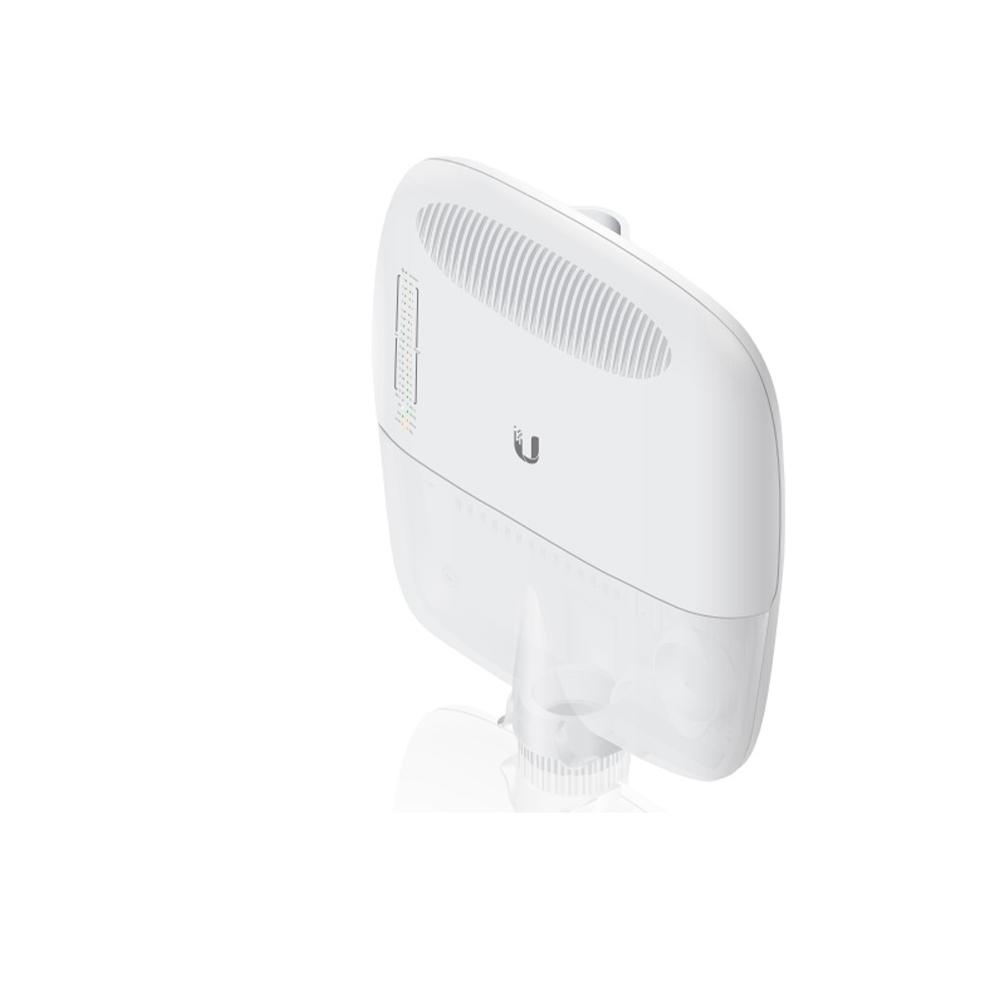

Ubiquiti Networks EP-S16 EdgePoint Switch 16 24/54V, af/at PoE
Product Highlights
Model#: EP-S16
Sku: IT3550
MSRP: $489.99
In Stock
Your Price: $489.99
Model: EP-S16
Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul
and versatile powering capabilities.
Power Options
- 54VDC, 6A Terminal Block
- Dual PoE Input
- (1) Console Port
Data Ports
- (16) RJ45 Ports
- (2) SFP+ Ports
- Sixteen RJ45 ports support PoE:
- PoE Input or Output
- (2) Ports with Two Options:
- 54V, 1.5A Passive PoE Input
or 54 or 24V, 1.4A Passive PoE Output*
- 54V, 1.5A Passive PoE Input
PoE Output
- (2) 54 or 24V, 1.4A Passive PoEOutput Ports*
- (12) PoE+ or 24V, 0.7A Passive PoE Output Ports*
- EP-S16 support 54/24V passive PoE to power all Ubiquiti products
- Intelligent WISP Control Point with FiberProtect
- EP-S16 Layer-2 switch with some layer-3 capabilities
- 16 X 10/100/1000 ports 2 SFP+ ports
- Power Input 2-54V / PoE Output 4-54/24V 12-802.3af/at or 24V
- 16 x 10/100/1000 RJ45 Ports
- 2 x 1/10 Gbps SFP+ Ports
- 54V or 24V /1.4A Passive PoE
- ARM Cortex-A9 400 MHz Processor
- 256MB of DDR3 RAM
- Die-cast Aluminum Alloy and Polycarbonate
- Fiber Backhaul Capability
- Speed, Link, Activity, and PoE LEDs
- Wall and Pole Mountable
