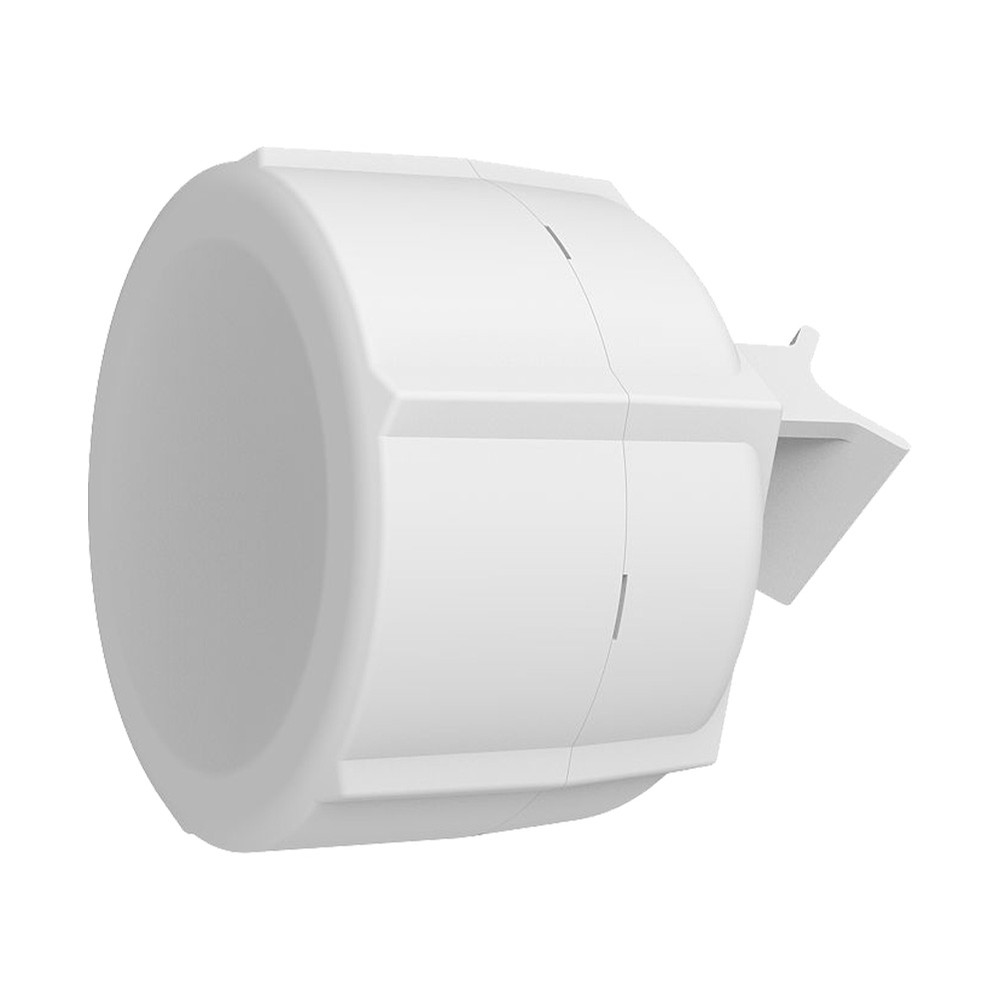

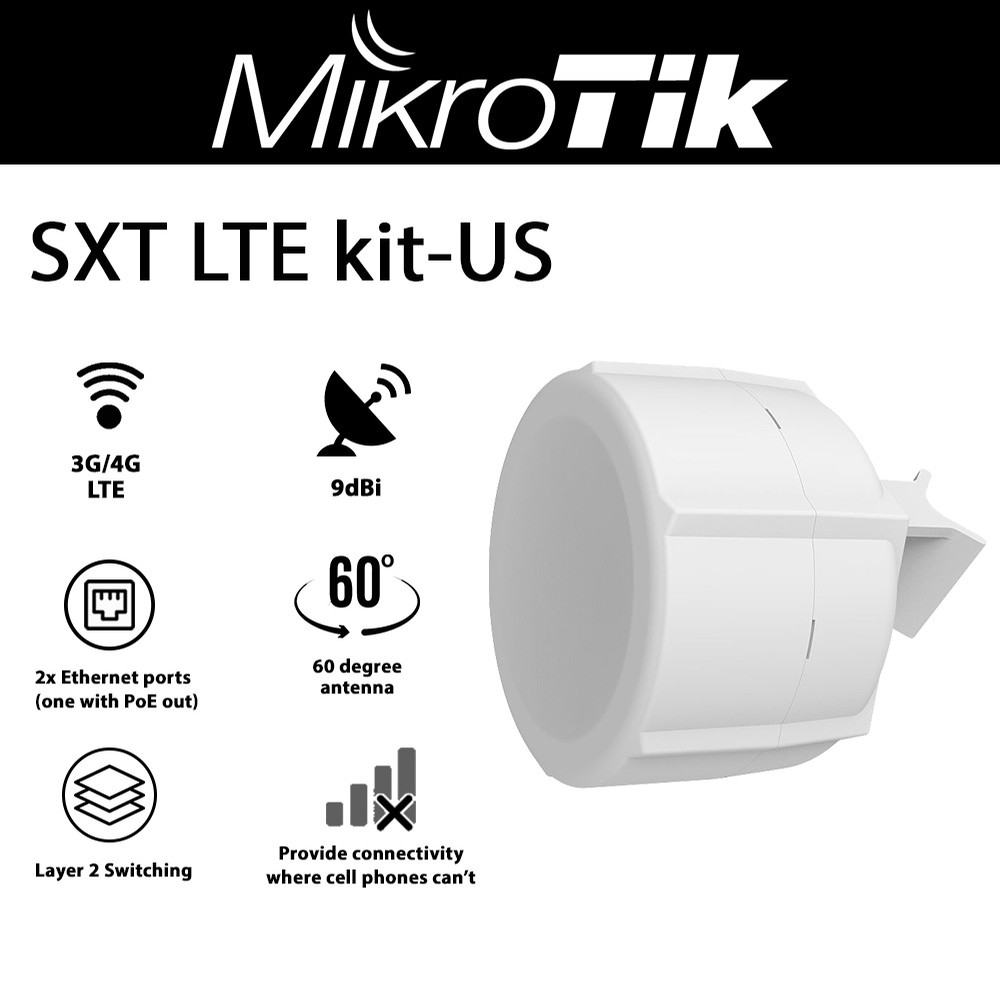

SXT LTE kit-US

Mikrotik


Mikrotik SXT LTE kit RBSXTR&R11 built in 3G/4G/LTE modem CPE 9dBi 60 degree antenna US Version


Product Highlights
  • The SXT LTE kit (product code RBSXTR&R11e-LTE-US) is a device for remote locations that are within cellular network coverage
  • However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t
  • The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device
  • The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant
  • The device has a built in high quality 3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link

    • Model#: SXT LTE kit-US

    Sku: IT3562



    MSRP: $129.99


    Out of stock

    The SXT LTE kit (product code RBSXTR&R11e-LTE) US Version is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

    The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

    The device has a built in high quality 3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

    RBSXTR&R11e-LTE-US includes LTE modem that supports LTE bands 2, 4, 5 and 12, mostly used by mobile operators in United States, Canada and Latin America.

    Product specifications

    • Product code    RBSXTR&R11e-LTE-US
    • 10/100 Ethernet ports    2
    • 3G Category    R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    140 x 140 x 103 mm
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz)
    • License level    3
    • Max out per port output (input < 30 V)    600 mA
    • Max out per port output (input > 30 V)    400 mA
    • Max power consumption    22 W
    • Max power consumption without attachments    5 W
    • Max total out (A)    600 mA
    • MiniPCI-e slots    1
    • Mode button    Yes
    • Number of DC inputs    1 (PoE-IN)
    • Number of SIM slots    2 Modem (Micro SIM)
    • Operating System    RouterOS
    • PoE in    802.3af/at
    • PoE in input Voltage    12-57 V
    • PoE out    Passive PoE up to 57V
    • PoE-out ports    Ether2
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 60°C
