LHG LTE kit-US

Mikrotik

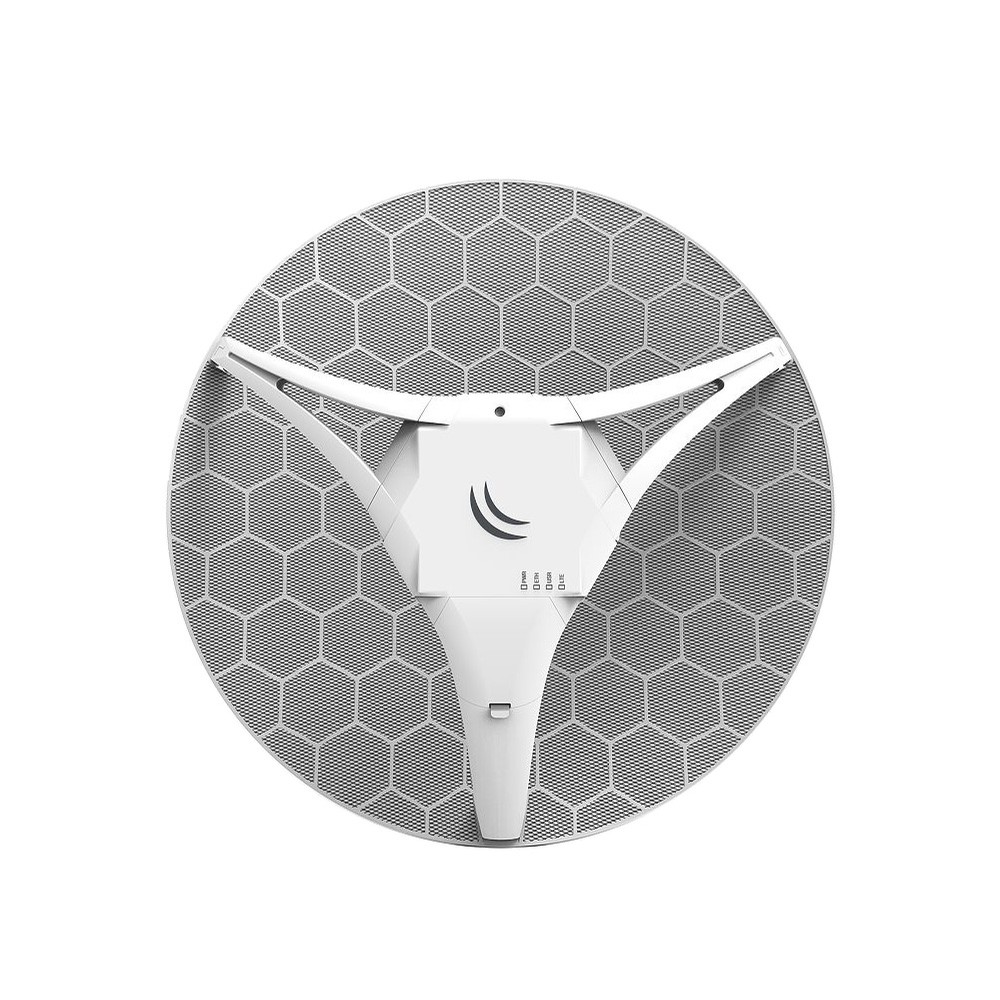

Mikrotik LHG LTE kit RBLHGR&R11e-LTE Outdoor CPE 17dBi 3G/4G/LTE US version


Product Highlights
  • The LHG LTE kit is a device for remote locations that are within cellular network coverage
  • Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t
  • Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available
  • The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink
  • RBLHGR&R11e-LTE-US includes LTE modem that supports LTE bands 2, 4, 5 and 12, mostly used by mobile operators in United States, Canada and Latin America

    • Model#: LHG LTE kit-US

    Sku: IT3573



    MSRP: $159.99


    Out of stock

    The LHG LTE kit-US (RBLHGR&R11e-LTE-US) is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

    The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

    RBLHGR&R11e-LTE-US includes LTE modem that supports LTE bands 2, 4, 5 and 12, mostly used by mobile operators in United States, Canada and Latin America.

    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    391 x 391 x 227 mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 60°C
    • PoE in    802.3af/at
    • PoE in input Voltage    12-57 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    6 W
    • 3G Category    R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz)
    • 10/100 Ethernet ports     1
    • Number of SIM slots    1 Modem (Mini SIM)
    • MiniPCI-e slots    1
    • Mode button    Yes
    • Included parts: 24V 0.38A power adapter, Metal rings (two), PoE injector, K-LHG kit
