LtAP LTE kit

Mikrotik


Mikrotik LtAP LTE kit heavy-duty built-in cellular modem 4G LTE access point GNSS GPS Satellite navigation



Product Highlights
  • Mikrotik LtAP LTE kit also known as RBLtAP-2HnD&R11e-LTE is a Heavy Duty 2.4GHz Access Point with extra miniPCI slot - three SIM slots, GNSS support and LTE Modem
  • The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity
  • Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed
  • LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices
  • RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40
  • Model#: LtAP LTE kit

    Sku: IT3588



    MSRP: $179.99


    Out of stock

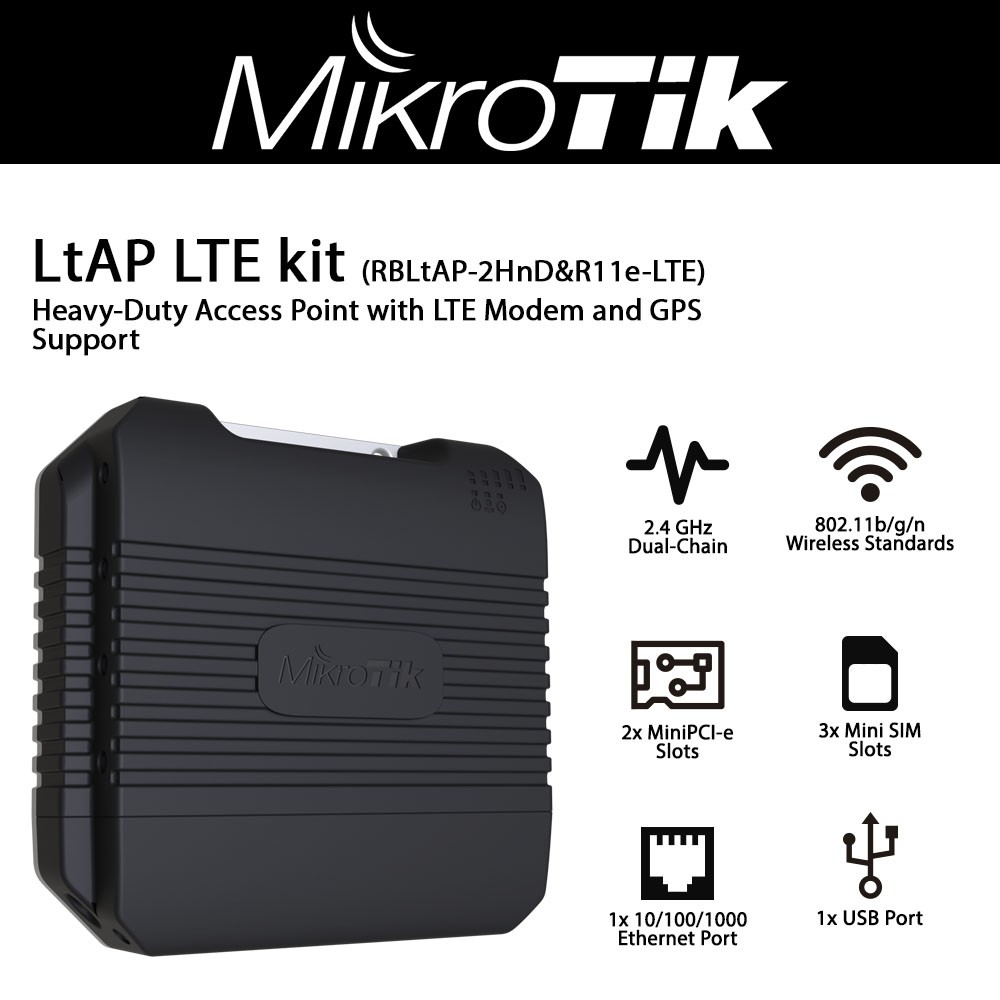

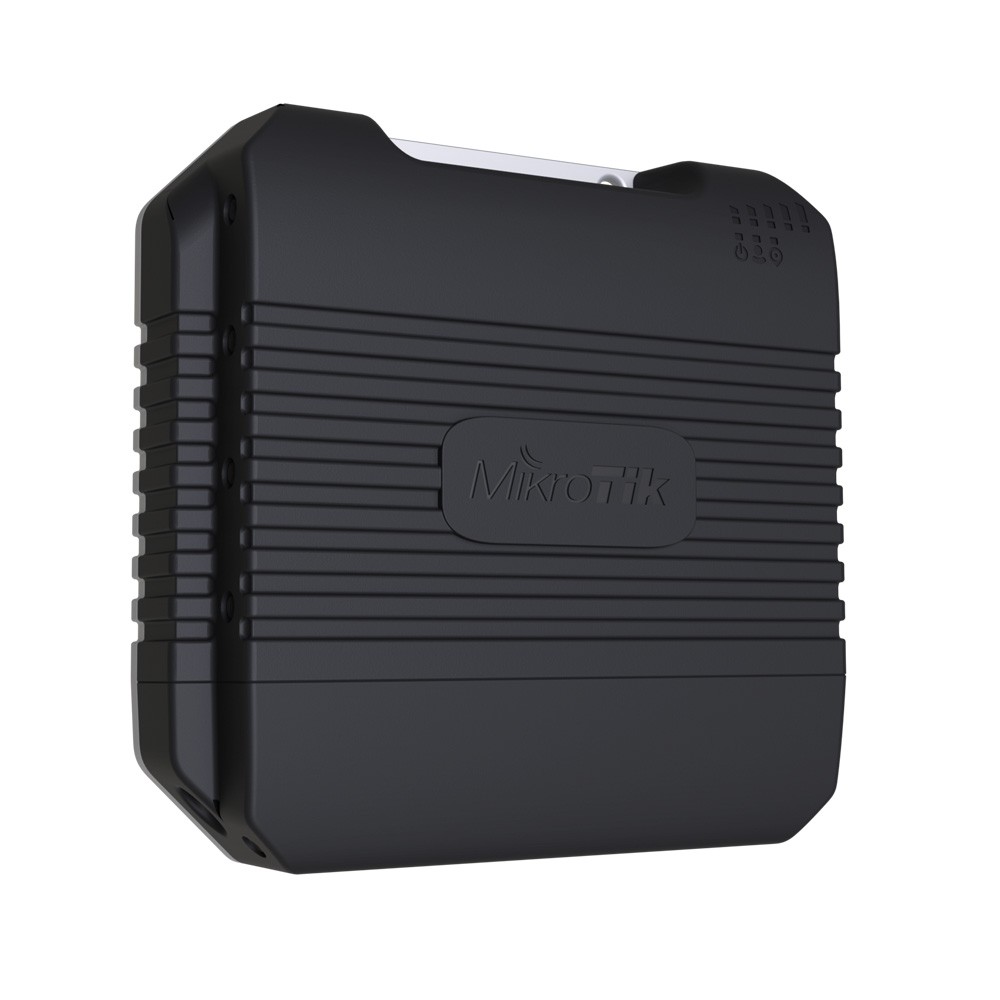

    Introducing LtAP LTE kit (RBLtAP-2HnD&R11e-LTE) – a heavy-duty 4G (LTE) access point with GPS support.

    The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.

    Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

    The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

    The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

    LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

    RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

    The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.

    • Architecture    MMIPS
    • CPU    MT7621A
    • CPU core count    2
    • CPU nominal frequency    880 MHz
    • CPU Threads count    4
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    12-30 V
    • Number of DC inputs    3 (DC jack, PoE-IN, Automotive)
    • DC jack input Voltage    12-30 V
    • Automotive input Voltage    12-30 V
    • Max power consumption    24 W
    • Max power consumption without attachments    12 W
    • 2G Category    Class12
    • 3G Category    R7 (21Mbps Downlinks, 5.76Mbps Uplink)
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    • LTE TDD bands    38 (2600MHz) / 40 (2300MHz)
    • 2G bands    2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    • 3G bands    1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    2.5
    • Wireless 2.4 GHz chip model    AR9382
    • Wireless 2.4 GHz generation    Wi-Fi 4
    • 10/100/1000 Ethernet ports    1
    • Number of SIM slots    3 Modem (Mini SIM)
    • MiniPCI-e slots    2
    • Serial port    RS232
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, FCC, IC, E-MARK, EAC, ROHS
