B-DB-AC-BD3

Ubiquiti

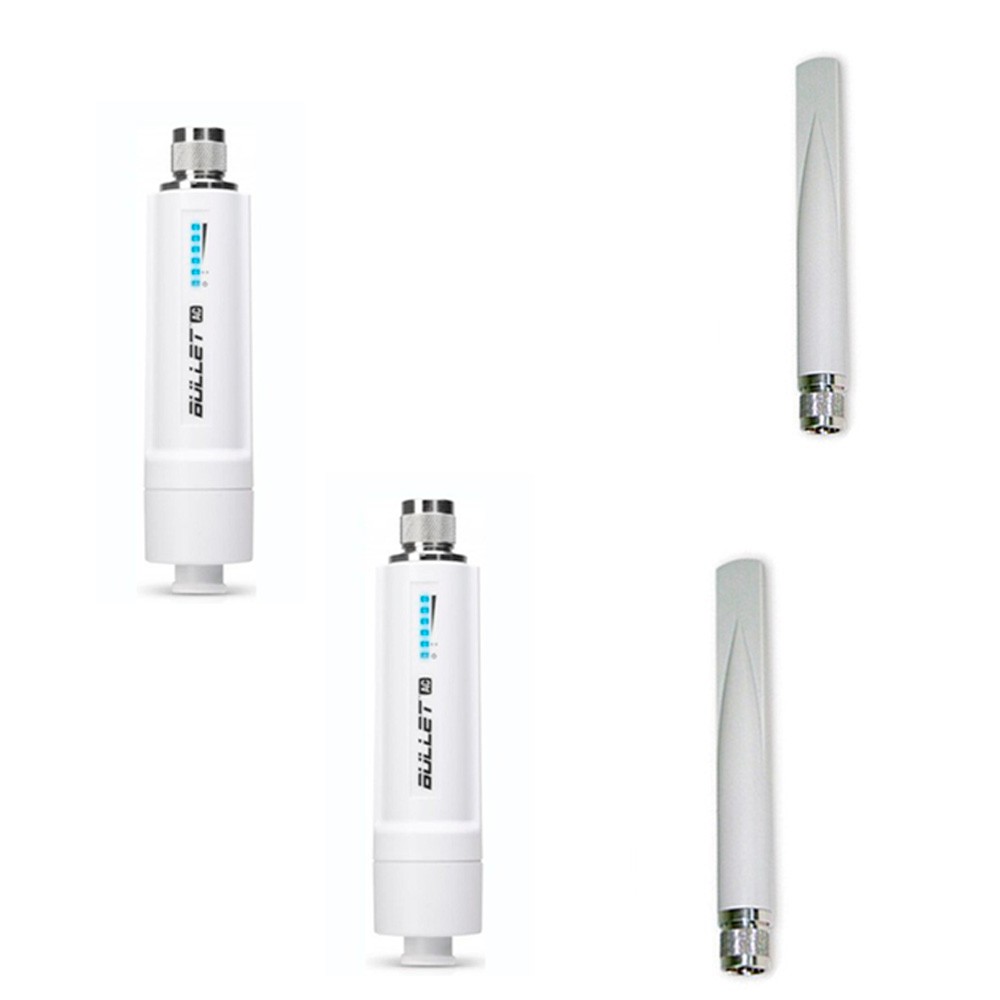

Ubiquiti Networks B-DB-AC Access Point Radio 11 ac Outdoor Wireless 2 UNITS with FREE Antenna Dual Band 2.4GHz 5.8Ghz 5dBi 2 UNITS


Product Highlights
  • Ubiquiti Bullet ac B-DB-AC Dual-Band 2.4/5GHz 802.11 AC Integrated Radio Outdoor Wireless Access Point
  • Bullet AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links
  • The Bullet design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity
  • The BulletAC delivers up to 300+ Mbps real TCP/IP throughput
  • The robust, weatherproof case withstands harsh outdoor conditions

    • Model#: B-DB-AC-BD3

    Sku: IT3594

    Out of stock

    Model: B-DB-AC-US

    Bullet AC Dual-Band airMAX ac Radio with Dedicated Wi-Fi Management

    The Bullet AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links.Bullet Dual-Band AC airMAX ac Bullet Radio with Dedicated WiFi Management 802.11ac, 2.4/5 GHz, Dual-band, 22dBm ouput power, PoE, N-type.



    • Fully Integrated Radio

    Launched in 2008, the Bullet design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.



    •  Carrier-Class Throughput

    The Bullet AC delivers up to 300+ Mbps real TCP/IP throughput.



    • Durability to Last Outdoors

    The robust, weatherproof case withstands harsh outdoor conditions.



    • Plug and Play Integration

    Connect the Bullet AC to any existing antenna with an N-type female connector to create an airMAX® basestation.







    Model: WAE-5AG-OEM-N-Female

    WAE-5AG-OEM-N-Female - WAE-5AG-OEM 2.4GHz & 5.8Ghz Dual 5dBi with N.Female

    • Frequency

    2412 - 2462

    U-NII-1: 5150 - 5250 U-NII-3: 5725 - 5850

    • Dimensions

    190 x 46 mm (7.48 x  1.81")

    • Weight

    196 g (6.91 oz)

    • Enclosure

    Powder-Coated Aluminum

    • Networking Interface

    Gigabit Ethernet Port

    • Antenna Connector

    N-Type Connector

    • Throughput

         2.4 GHz - 160+ Mbps
         5 GHz - 300+ Mbps

    • Max. Power Consumption

    8W

    • Output Power

    22 dBm

    • Power Supply

    AC to 24VDC, 0.5A Gigabit PoE Adapter

    • Power Method

    24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

    • ESD/EMP Protection

    ± 24 kV Contact / Air

    • Operating Temperature

    -40 to 70° C (-40 to 158° F)

    • Operating Humidity

    5 to 95% Condensing

    • Shock and Vibration

    ETSI300-019-1.4

    • Certifications

    CE, FCC, IC







    Model: WAE-5AG-OEM-N-Female

    WAE-5AG-OEM-N-Female - WAE-5AG-OEM 2.4GHz & 5.8Ghz Dual 5dBi with N.Female
