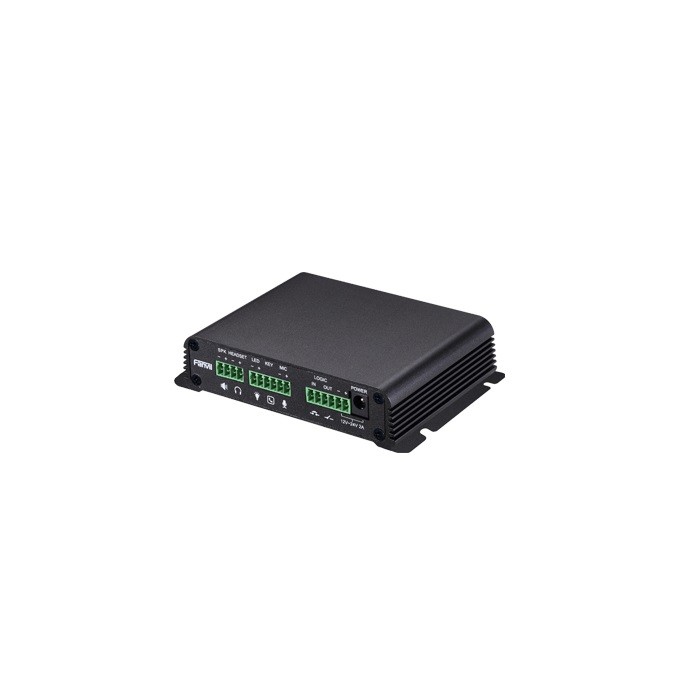

Fanvil PA2 SIP Video Intercom and Paging Gateway



Product Highlights
  • Interact with IPC camera, you can make a video phone call
  • NVR video recording, standard RJ45 interface
  • Emergency call button interface, active call
  • Small and exquisite, can be embedded in the internal installation
  • 10W-30W adaptive output power
  • Model#: PA2

    Sku: IT3668



    MSRP: $129.00


    Out of stock

    Model: PA2

    Fanvil PA2 SIP Video Intercom and Paging Gateway

    PA2 is a SIP video intercom & Paging device for industry application. The media stream transmission adopts standard IP/RTP/RTSP protocol. It inherits the advantages of the stability and the sound quality of FANVIL VOIP Phone. It is perfectly compatible with all the current SIP IPPBX /IMS platforms, such as Asterisk, Broadsoft, 3CX, Elastix, etc. It has various functions and interfaces, Such as Intercom, broadcast, video , security, recording, to adapt different application environment, you can very easy to DIY your video intercom & paging equipment. PA2 is the best choice for everyone.

    Highlights:

    • Small and exquisite, can be embedded in the internal installation
    • Emergency call button interface, active call
    • Interact with IPC camera, you can make a video phone call
    • NVR video recording, standard RJ45 interface
    • Recording output, 3.5mm standard audio interface
    • 10W-30W adaptive output power
    • System online management and upgrade

    Intercom:

    • Two SIP lines, supporting SIP 2.0 (RFC3261) and related RFC
    • Supports two lines RTSP
    • Voice broadcast IP address ? Button or remote volume adjustment
    • Switch signal input and output
    • Talkback recording output
    • Handsfree talking
    • Default auto answer ? Dynamic multicast function ? Supports DC or POE power supply
    • Support for Function key interface ? Support monophonic active speakers ? Network time synchronization ? Action URL / Active URI remote control

    Audio:

    • Narrowband speech coding: G.711a / u, G.723.1, G.726-32K, G.729AB
    • Broadband speech coding: G.722
    • Half Duplex Echo Cancellation (AEC)
    • DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info Networking/ Protocols
    • Supports PoE (802.3af)
    • Primary and secondary DNS servers are supported
    • Support VLAN
    • Supports SNTP client
    • Support VPN L2TP / PPTP / IPSec Supports SRTP
    • Support for HTTP / HTTPS web pages ? Support Qos: 802.1p / q, DSCP
    • Support MD5 authentication ? Supports Web Filter ? DHCP / static / PPPoE
    • STUN

    Physical Specifications:

    • 2 RJ45 interface: Yellow: WAN port 10 / 100M adaptive, support POE PoE: 802.3af (Class 3: 6.49 ~ 12.95W) Black: LAN port (Only connected to the original camera) Cable: Super five lines or better ? 1 blue indicator (SIP status and network status)
    • 2 volume plus or minus key
    • 1 restore factory settings key
    • 1 recording output interface: 3.5mm standard audio interface 15 Ohm impedance ? 1 ground screw ? 1 way passive speaker interface: Output power: 4Ω, POE / 10W, 12V /10W,18V / 20W, 24V / 30W; related to supply voltage. Wire diameter: 18 AWG or larger diameter Interface:Pluggable terminal block
    • 1 headset speaker: Output: 32 Ohm 1.2V interface:Pluggable terminal block
    • 1 DSS key interface (4 lines): Indicator: Output 5.0V 5mA Interface:pluggable terminal block
    • 1 way microphone input interface: Recommendation: Use an electret condenser microphone Sensitivity: -38dB, Impedance 2.2 K Ohm bias voltage 2.2V Interface:Pluggable terminal block
    • 1 short circuit input and output interface (built-in relay): Relay: MAX DC30V /1A, AC125V/0.5A, Interface:pluggable terminal block
    • 2 parallel power input interface: 12V-24V / 2A DC 1 road for the 5.5mm DC power seat 1 road way 2Pin pluggable terminal block
    • Standby power consumption: DC12V 1.32W / POE 1.78W
    • Housing material: aluminum alloy shell
    • Installation: Indoor installation ? Operating temperature: -30 ~ 70 ?
    • Storage temperature: -40 ~ 70 ?
    • Relative humidity: 10% - 95%
    • Equipment size: 113x83x28mm
    • Packing size: 138x108x77mm
    • Equipment weight: 250g
