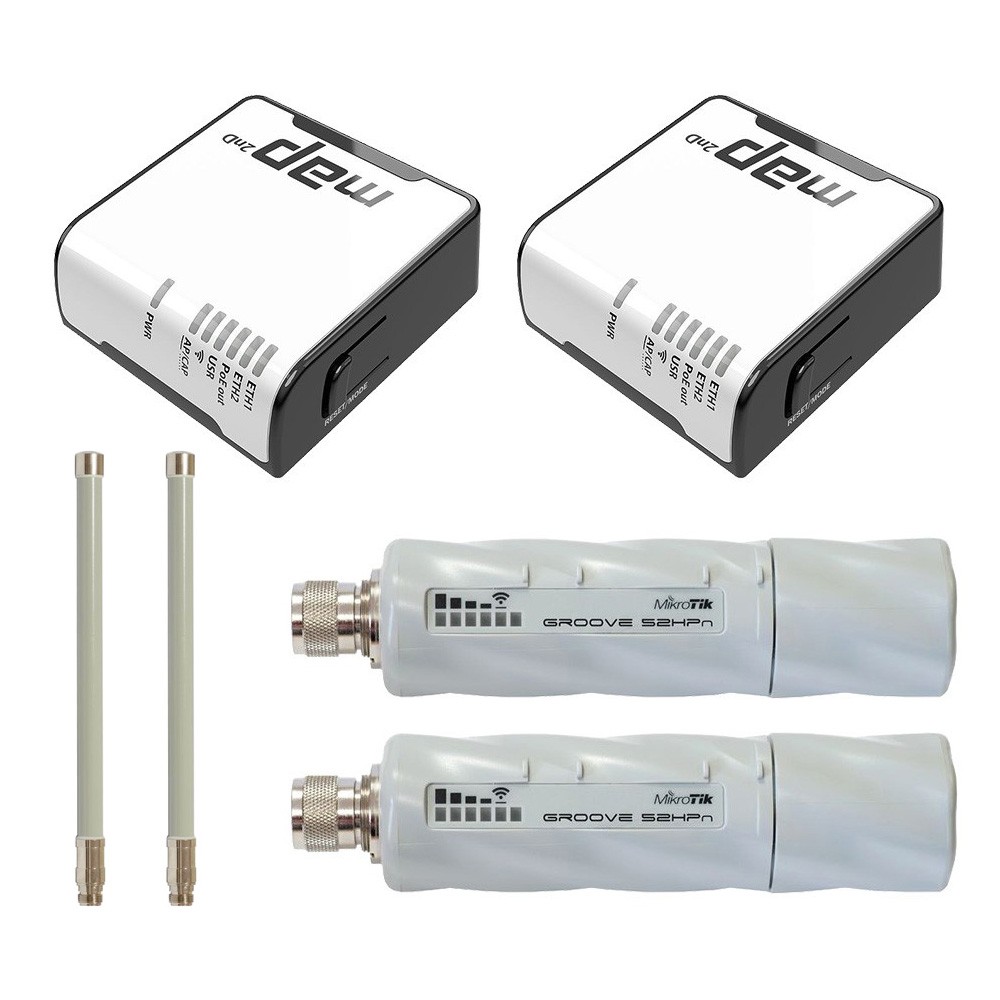

Mikrotik GrooveA 52 GrooveA-52HPn Outdoor PTP (2-Units) with RBmAP2nD Dual-Chain Access Point (2-Units)
Product Highlights
Model#: GrooveA-52HPn BD1
Sku: IT3682
MSRP: $279.99
Out of stock
GrooveA 52 (RBGrooveA-52HPn)
Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supports AP mode.
With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.
NEW- now comes packaged with a Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz)!
Box contains: Groove unit, mounting loops, PoE injector, power adapter, Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz).
mAP (RBmAP2nD)
The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
GrooveA 52 (RBGrooveA-52HPn)
Specifications
- Product code RBGrooveA-52HPn
- Architecture MIPSBE
- CPU AR9342
- CPU core count 1
- CPU nominal frequency 600 MHz
- Dimensions 177x44x44mm, 193g
- License level 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -40°C to 70°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 9-30 V
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 6 W
Wireless
- Antenna gain dBi for 2.4 GHz/5 GHz 6
- Wireless 2.4 GHz/5 GHz standards 802.11b/g/n, 802.11a/n
- Wi-Fi generation 4
- Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s
- Wireless 2.4 GHz/5 GHz number of chains 1
- Wireless 2.4 GHz/5 GHz chip model AR9342
Ethernet
- PCB temperature monitor Yes
- Voltage Monitor Yes
mAP (RBmAP2nD)
Specifications
- Product code RBmAP2nD
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions 68x68x19mm
- License level 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -20°C to 70°C
Powering
- MicroUSB input Voltage 5-5 V
- PoE in 802.3af/at
- PoE out Passive PoE
- PoE in input Voltage 12-57 V
- Number of DC inputs 3 (DC jack, MicroUSB, PoE-IN)
- DC jack input Voltage 8-57 V
- Max out per port output (input < 30 V) 0.5 A
- Max total out (A) 0.5 A
- Max power consumption 5 W
Wireless
- Antenna gain dBi for 2.4 GHz 1.2
- Wireless 2.4 GHz standards 802.11b/g/n
- Wi-Fi generation 4
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz chip model QCA9531
Ethernet
- 10/100 Ethernet ports 2
Peripherals
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type microUSB type AB
- Max USB current (A) 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
