NS-5ACL-US-BD2

Ubiquiti

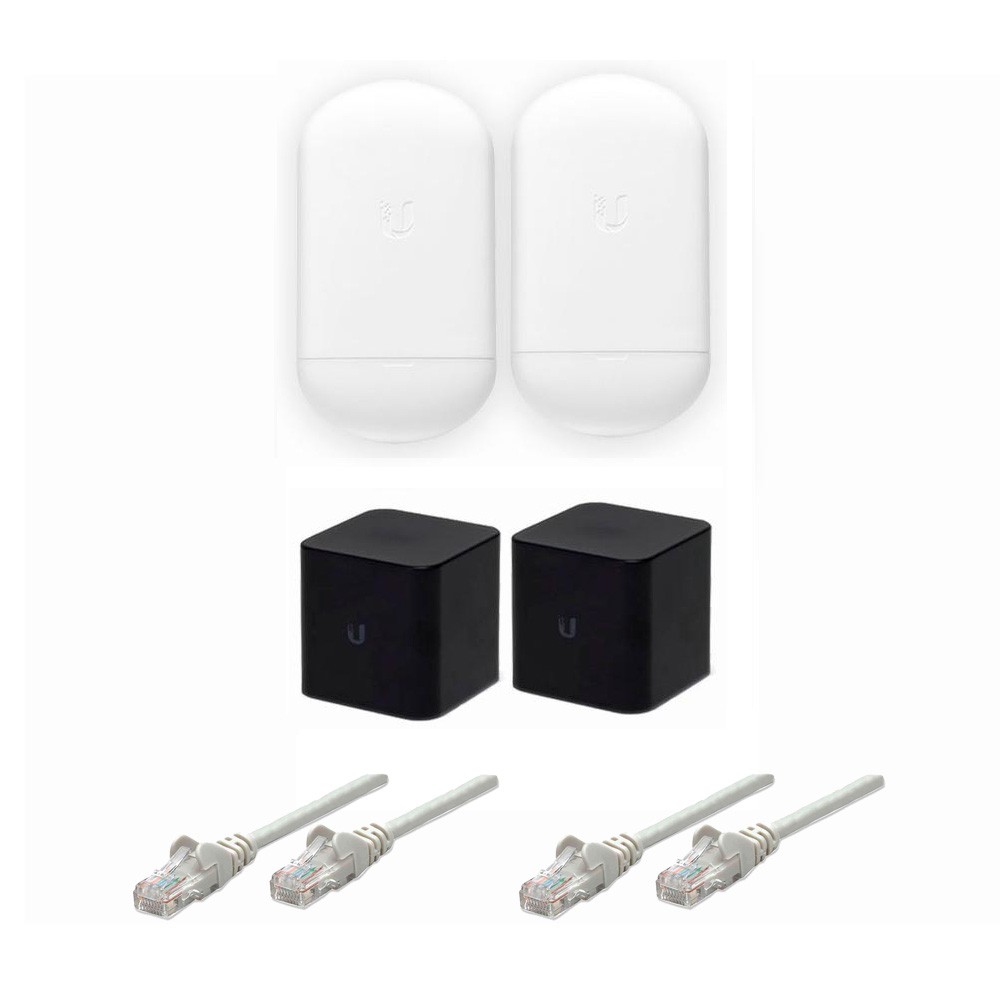

Ubiquiti airMAX NanoStation 5AC Loco X2 w/ airCube 11ac Access Point Dual-Band X2 w/ Cable Cat6 X2



Product Highlights
  • Ubiquiti Networks NanoStation AC loco NS-5ACL-US 5GHz 802.11ac airMAX CPE Radio 450Mbps Wireless Access Point (2 Pack)
  • The indoor/outdoor NanoStation AC loco are compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
  • The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
  • airCube ACB-AC-US PoE 24V PoE Passthrough Indoor/Outdoor (2 Pack)
  • Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.
  • Model#: NS-5ACL-US-BD2

    Sku: IT3693

    Out of stock

    Model: NS-5ACL-US (QNTY: 2)

                                      NanoStation AC loco

                                                      5 GHz airMAX ac CPE

    The indoor/outdoor NanoStation AC loco is compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

    The Ubiquiti NanoStation AC loco integrates airMAX Wireless Access Point (MIMO TDMA protocol) technology and dedicated Wi-Fi management to create a more efficient and compact CPE. The low cost, high performance, and small form factor of the NanoStation AC loco makes it extremely versatile and economical to deploy.

    • Sleek Industrial Design

    The NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.



    • Management Wi-Fi Radio

    The NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



    • Now with airOS 8

    airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.



    +

    Model: ACB-AC-US (QNTY: 2)

                                              airCube

                                          airMAX Home Wi-Fi Access Point

    Introduction

    Ubiquiti Networks introduces the airCube, a cost-effective wireless access point for use in your customer deployments. The airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance

    • 2.4 GHz radio band Speeds of up to 300 Mbps
    • 5 GHz radio band Speeds of up to 866.7 Mbps



    Super Antenna

    Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

    • 24V PoE Passthrough

    The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.

    Model: 336758

    Enjoy clear and secure data transmissions with the Intellinet Solutions Cat6 Patch Cable. This network cable enables a convenient and reliable connection from one network device, such as a switch, modem or router, to another or to the infrastructure at large through a patch panel, keystone jack or wall outlet. Designed to meet the appropriate TIA/EIA standards and suitable for use in 10/100/1000BASE-T networks, the Intellinet Solutions Cat6 Patch Cable also offers a rugged PVC sheath and molded strain relief to help reduce cable damage and assure full data transfer rates, error-free transmissions and maximum conductivity.

    • Gold-plated contacts for best connection
    • PVC cable jacket for flexibility and durability
    • Snag-free boots protect RJ45 connectors

    Model: NS-5ACL-US

    • Real Time Reporting
    • Spectral Analysis
    • Advanced RF Analytics
    • Up to 450+ Mbps Real TCP/IP Throughput
    • Dedicated Wi-Fi Radio for Management

    Click Here to view more:





    +

    Model: ACB-AC

    • (4) Gigabit Ethernet Ports
    • 24V PoE Passthrough for airMAX CPE
    • c, 2x2 MIMO Technology
    • Up to 1167 Mbps Wi-Fi Data Throughput
    • Up to 300 Mbps in the 2.4 GHz Radio Band
    • Up to 866.7 Mbps in the 5 GHz Radio Band
    • Powered by 24V Passive PoE or Included Power Adapter


    Product Specifications

    • Weight: 280g
    • Supported Power Voltage: 22-26V
    • Max Power Consumption: 8.5W
    • PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
    • Management Interface: Wi-Fi / Ethernet
    • Max. TX Power: 22 dBm
    • Enclosure Characteristics: Black Plastic
    • Operating Temperature: -10 to 50° C (-14 to 122° F)
    • Operating Humidity: 5 to 95% Non-condensing



    Model: 336758

    • UTP
    • EIA/TIA approved
    • 4 pair
    • RJ45 connectors
