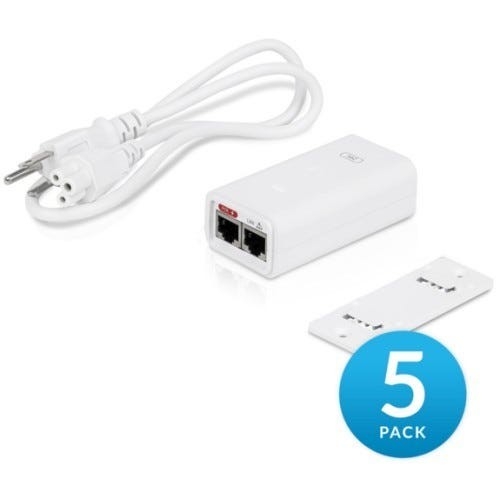

Ubiquiti POE-24-12W-5P - PoE Injector Gigabit, 24VDC, 24W - 5-Pack
Model#: POE-24-12W-5P
Sku: IT3727
MSRP: $49.99
In Stock
Your Price: $49.99
Model: POE-24-12W
5-Pack
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products.
- Provides Earth Grounding and Surge Protection
- Helps Protect Against ESD Events
- Powers Ubiquiti® PoE Devices
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Specifications POE-24-24W-5P
| Dimensions | 88 x 57 x 33 mm(3.47 x 2.24 x 1.30") |
| Weight | 135 g (4.76 oz) |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | No |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | ----------- |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Datasheet
