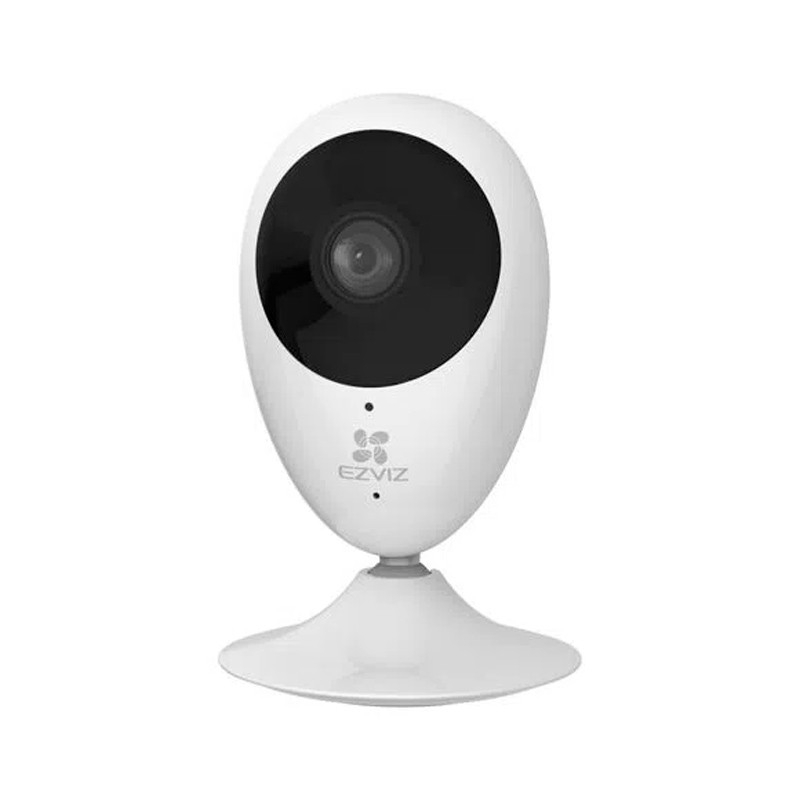

Smart Home Camera
Simple yet Extremely Powerful
A Full HD 1080p Wi-Fi camera with a magnetic base, designed for simple and quick installation.
Full HD 1080p video with a wide-angle lens.
When it’s dark, the C2C automatically switches to night vision mode for around-the-clock Full HD video coverage, ensureing a night vision up to10 meters.
The C2C watches for movement. It will send instant notifications to your smartphone when it detects motions.
This camera also comes with three audio alert modes for motion detection – silent, short beep, and siren. Want to hear your visitors while you are in another room? Set the camera on siren mode so you will hear the alert loud and clear.
With one tap of the EZVIZ App on your mobile device, you can enable the sleep mode. Pause real-time viewing and recording whenever you need the privacy.
The camera comes with a built-in microphone and speaker, enabling two-way audio via the camera and your phone or tablet.
The C2C Camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous video compression standard (H.264).
The C2C comes with a magnetic base and mounting kit for easy placement on walls or ceilings. Once set up, you can manually adjust it to cover just about any angle you need.
Specifications | |
---|---|
Model | CS-C2C-A0-1E2WF (1080P, H.265) |
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 2.8 mm, view angle: 108° (Diagonal), 91° (Horizontal), 50° (Vertical) |
Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0 Lux with IR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
Night Vision | 10 m |
Video & Audio | |
Max. Resolution | 1920 × 1080 |
Frame Rate | Max:25 fps; Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
H.265 Type | Main Profile |
Video Bit Rate | HD; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-adaptive |
Max. Bitrate | 1 Mbps |
Function | |
Smart Alarm | Motion detection |
Two-way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Network | |
Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Storage | |
Local Storage | MicroSD card (max. 256 GB) |
Cloud Storage | EZVIZ Cloud Storage |
General | |
Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less ( non-condensing) |
Power Supply | DC 5V / 1A |
Power Consumption | Max. 4.0 W |
Product Dimensions | 110 × 58 × 38 mm (4.33 x 2.28 x 1.50 inch) |
Packaging Dimensions | 149 × 91.5 × 87.5 mm (5.87 x 3.60 x 3.44 inch) |
Net Weight | 100 g (3.53 oz) |
Weight (With Package) | 292 g (10.30 oz) |
In the box: | |
In the box: | - C2C Camera - USB Cable - 3-Meter Power Adapter - Foam Sticker - Metal Plate - Base - Drill Template - Screw Kit - Regulatory Information - Quick Start Guide |
Certifications: | |
Certifications: | FCC/UL/CE/RoHS/WEEE/REACH |
