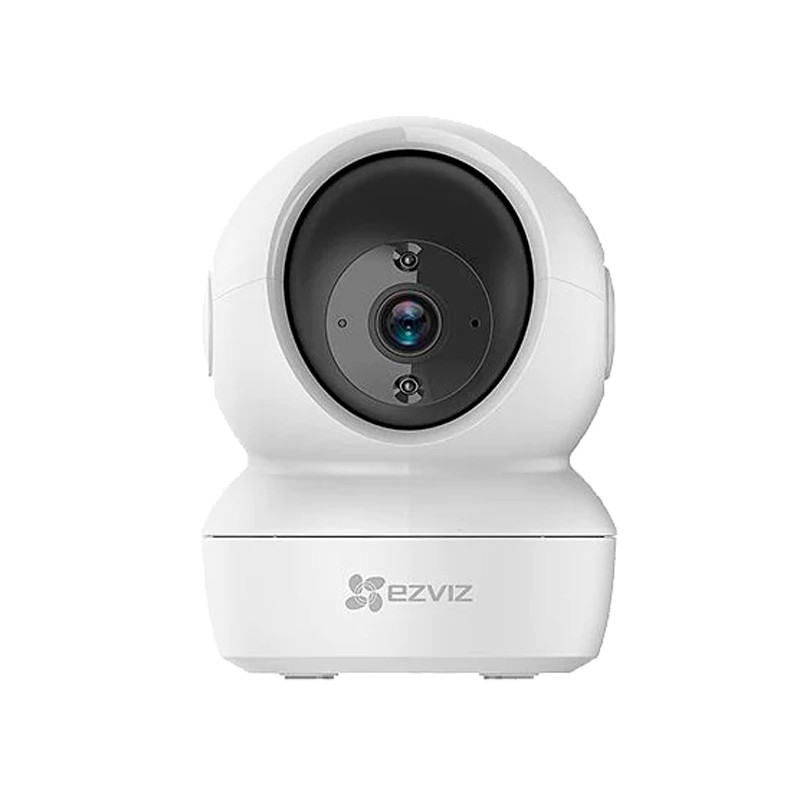

Ezviz C6N 3MP Smart Home Camera



Product Highlights
  • 2K Resolution - 3MP
  • Smart Night Vision(up to 10m / 33ft.)
  • Motorized Pan and Tilt for 360° Visual Coverage
  • Sleep Mode for Privacy Protection
  • Motion Detection
  • Model#: EZC6N2C3L4

    Sku: IT3782



    MSRP: $42.90

    In Stock

    Your Price: $42.90






    MODEL: EZC6N2C3L4

    See everything clearly in 3MP resolution.

    This camera can record video in 3MP resolution, which offers more details than 2MP cameras.

    Zero blind spots.

    Keep tabs on every corner with just one C6N. Its expansive 360-degree field-of-view ensures full coverage,so you don’t miss a thing.

    Smart tracking.

    When it detects a moving object, the C6N is smart enough to automatically track its motion while alerting you with an image in real-time.

    Communication, anytime.

    Talk to your loved ones and deter unwelcome strangers – all by using the C6N’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

    See further in the dark.

    Enjoy round-the-clock protection with the C6N camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

    We protect your data and privacy.

    Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data. To get an extra layer of privacy protection, you can always enable the camera’s sleep mode on the EZVIZ App.

    Save money on video storage and bandwidth.

    The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous H.264 video compression standard.

    Specifications

    Specifications
    Model CS-C6N-C0-2C3WF
    Camera
    Image sensor F2.0@1/2.7" Progressive Scan CMOS
    Shutter Speed Self-adaptive shutter
    Lens 4mm, view angle: 104°(Diagonal), 85° (Horizontal), 55°(Vertical)
    Lens Mount M12
    Day & Night IR-cut filter with auto-switching
    DNR 3D DNR
    WDR Digital WDR
    Compression
    Video Compression H.265 / H.264
    Video Bit Rate Quad HD, Full HD, HD, Standard. Adaptive bit rate.
    Max. Resolution 2304 × 1296
    Frame Rate Max. 20 fps; Self-Adaptive during network transmission
    Network
    Smart Alarm Motion detection
    Wi-Fi Pairing AP pairing
    Protocol EZVIZ cloud proprietary protocol
    Interface Protocol EZVIZ cloud proprietary protocol
    Interface
    Storage Micro SD card slot (Max. 256G)
    Power Micro USB
    Wired Network RJ45 × 1 (10M/100M self-adaptive Ethernet port)
    Wi-Fi
    Standard IEEE802.11b, 802.11g, 802.11n
    Frequency Range 2.4 GHz ~ 2.4835 GHz
    Channel Bandwidth Supports 20MHz
    Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
    Output Power(EIRP) 19 dBm
    Antenna Gain 1.9 dBi
    General
    Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
    Power Supply DC 5V/1A
    Power Consumption Max. 5W
    IR Range Max. 10 m (32.81 ft)
    Dimensions 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)
    Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch)
    Bare Weight 252g (8.89 oz)
    In the box:
    In the box: - C6N Camera
    - Base
    - Screw Kit
    - Power Cable 3m (9.8 ft.)
    - Drill Template
    - Power Adapter
    - Quick Start Guide
    - Regulatory Information
    Certifications:
    Certifications: FCC / UL / CE / WEEE / REACH / ROHS

    Datasheet

    PDF File Ezviz C6N 3MP Smart Home Camera
