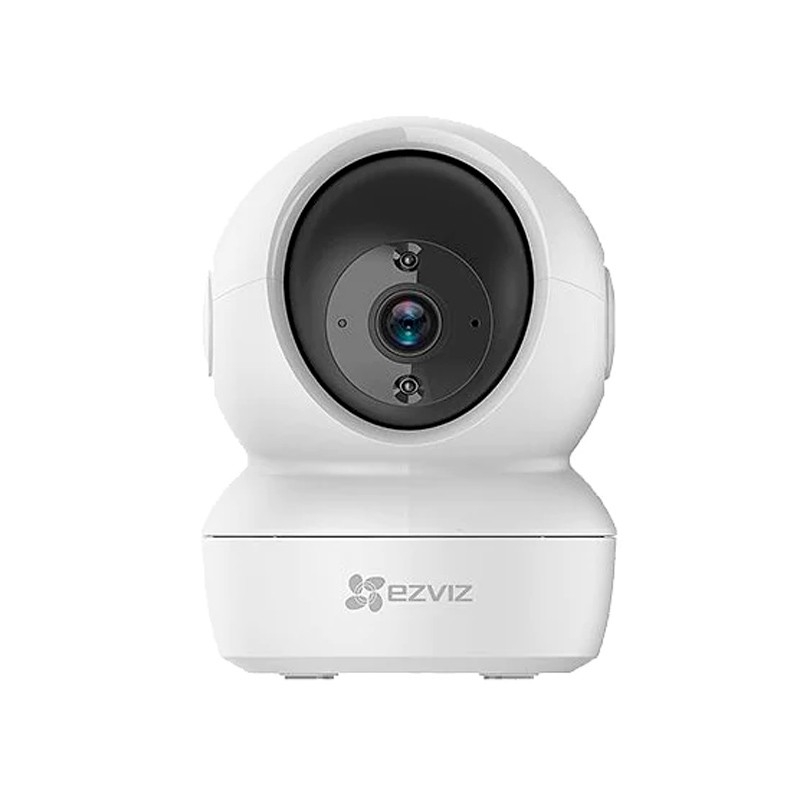

MODEL: EZC6N8B4L4
Protect and care with stunning vision, at all times
Whole-room coverage is a breeze. The C6N 4MP helps you keep eyes-open-wide on your indoor space. And when your cat starts playing hide-and-seek, you can rotate the camera to find where it is. It also renders evenly exposed, clear black-and-white night vision, thanks to its built-in infrared LEDs, so you can enjoy peace of mind while you sleep.
Get the notifications that matter
A lot of activities go on inside your home. Don’t want to get alerted repeatedly when your curtains flutter in the wind? The C6N 4MP is smart enough to identify human activities in particular. You can choose to get alerted only when somebody is detected on camera.
Smart tracking keeps you well-informed
Upon motion detection, the C6N 4MP automatically locks on the subject and rotates to track the activity. When your dog chases its toy across the room, the camera will capture that movement, so virtually nothing is out of sight.
See and talk, from anywhere
When you’re at work or on a trip, it’s still easy to get in touch with your family. Just use your phone to talk and respond to your loved ones, as if you were by their side.
A visual diary made of precious moments
The C6N 4MP ensures that you capture unforgettable moments and store the memories safely
Enhanced viewing pleasure with smaller video files
Compared to the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded videos. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology reduces data storage by up to 50%
Specifications | |
---|---|
Model | CS-C6N-D0-8B4WF |
Camera | |
Image sensor | F2.2@1/3" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm, view angle: 88°(Diagonal), 75° (Horizontal), 41°(Vertical) |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
Compression | |
Video Compression | H.265 / H.264 |
Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
image | |
Max. Resolution | 2560 × 1440 |
Frame Rate | Max. 20 fps; Self-Adaptive during network transmission |
Network | |
Smart Alarm | Motion detection |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Interface | |
Storage | Micro SD card slot (Max. 256G) |
Power | Micro USB |
Wired Network | RJ45 × 1 (10M/100M self-adaptive Ethernet port) |
Wi-Fi | |
Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
Output Power(EIRP) | 19 dBm |
Antenna Gain | 1.9 dBi |
General | |
Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
Power Supply | DC 5V/2A |
Power Consumption | Max. 5W |
IR Range | Max. 10 m (32.81 ft) |
Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch) |
Packaging Dimensions | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch) |
Bare Weight | 252g (8.89 oz) |
In the box: | |
In the box: | - C6N Camera |
- Base | |
- Screw Kit | |
- Power Cable 3m (9.8 ft.) | |
- Drill Template | |
- Power Adapter | |
- Quick Start Guide | |
- Regulatory Information | |
Certifications: | |
Certifications: | FCC / UL / CE / WEEE / REACH / ROHS |
