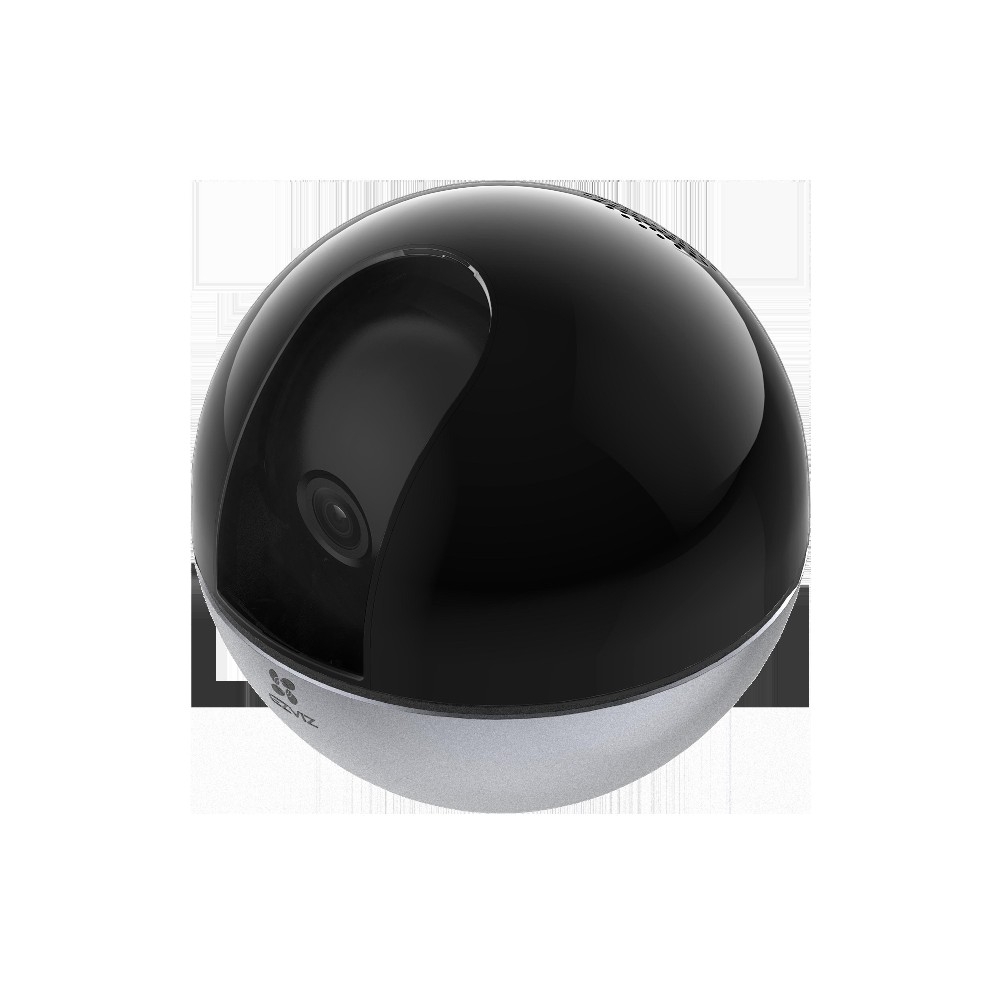

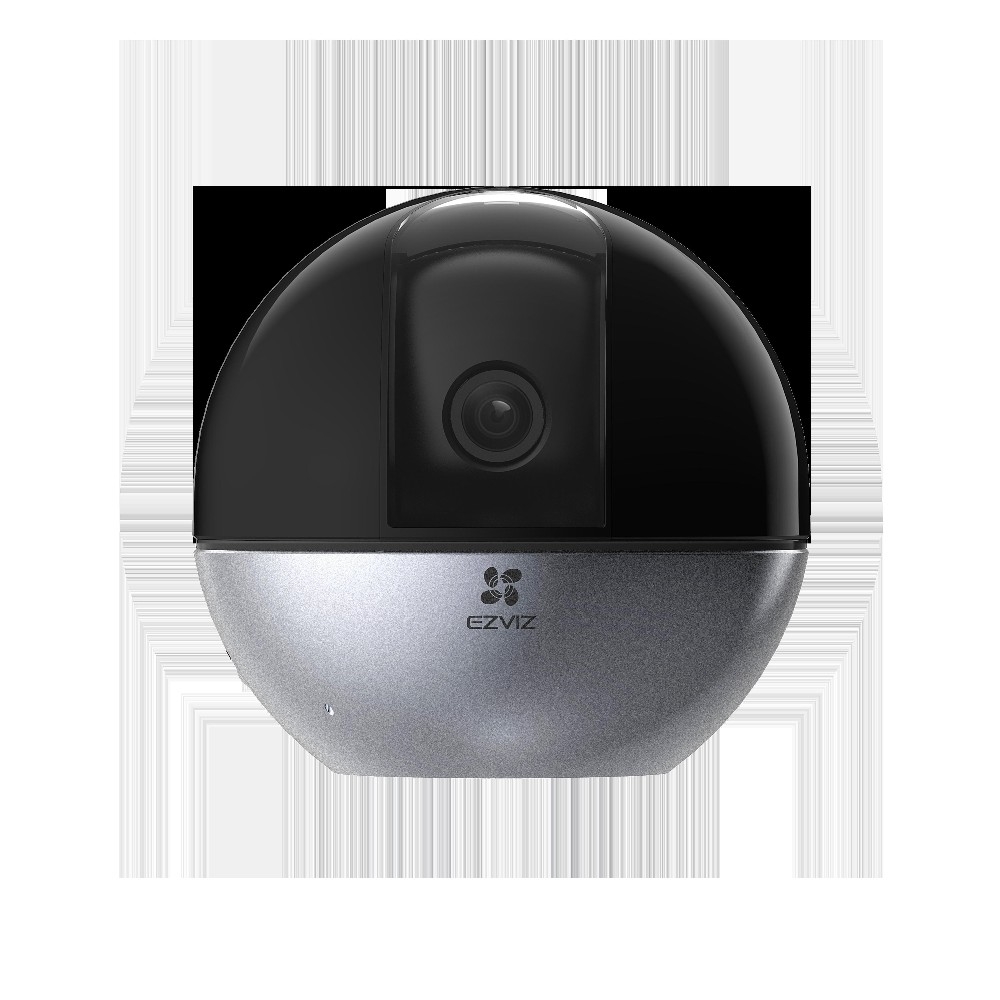

EZVIZ C6W Pan & Tilt Wi-Fi Camera - Model CS-C6W-A0-3H4WF US version
Product Highlights
Model#: EZC6W3H4
Sku: IT3784
MSRP: $76.99
In Stock
Your Price: $71.50
MODEL: EZC6W3H4
EZVIZ products have been designed for your entertainment, comunication and security. When you install the EZVIZ APP on your smartphone or tablet, EZVIZ devices will be connected to the cloud via their QR code and will immediately be online. With EZVIZ you can talk to your loved ones, watch your child’s progress when you are away, keep an eye on your home, interact with your four-legged friends and prevent household accidents
Main Features
4MP Streaming
Ai-Human Detection
Two-way Talk
Privacy Shutter
Motorized Pan and Tilt 360° Visual Coverage
Auto Zoom Tracking
True Wide Dynamic Range
Night Vision (Up to 33ft/10m)
| Model Parameters | |
|---|---|
| Model | CS-C6W-A0-3H4WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F2.0, view angle: 83° (Horizontal), 57° (Vertical), 104° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 75° |
| Minimum Illumination | 0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | True-WDR |
| BLC | Supports |
| Night Vision | 10m |
| Video & Audio | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max: 25fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4Mbps |
| Storage | |
| Local Storage | MicroSD card slot (Max. 256G) |
| Cloud Storage | EZVIZ Cloud Storage |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.412 GHz ~ 2.472 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| General | |
| Operating Conditions | -10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 2A |
| Power Consumption | MAX. 8W |
| Dimensions | 95.8 x 95.8 x 90.6 mm (3.77 x 3.77 x 3.57 inch) |
| Packaging Dimensions | 126 x 126 x 160 mm (4.96 x 4.96 x 6.30 inch) |
| Net Weight | 252 g (8.89 oz) |
| Weight | 513 g (1.13 oz) |
| Function | |
| Smart Alarm | AI Person Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| In the box: | |
| In the box: | C6W Camera ; 3-Meter Power Cable ; Power Adapter ; Drill Template ; Base ; Screw Kit ; Regulatory Information ; Quick Start Guide |
| Certifications: | |
| Certifications: | CE / WEEE / REACH / RoHS / FCC / UL |
Datasheet
