MODEL: EZC8C1F2L4
See everything in clear detail.
This camera captures 1080p high-definition video and images, recording every moment with sharp clarity.
A better day begins with better vision.

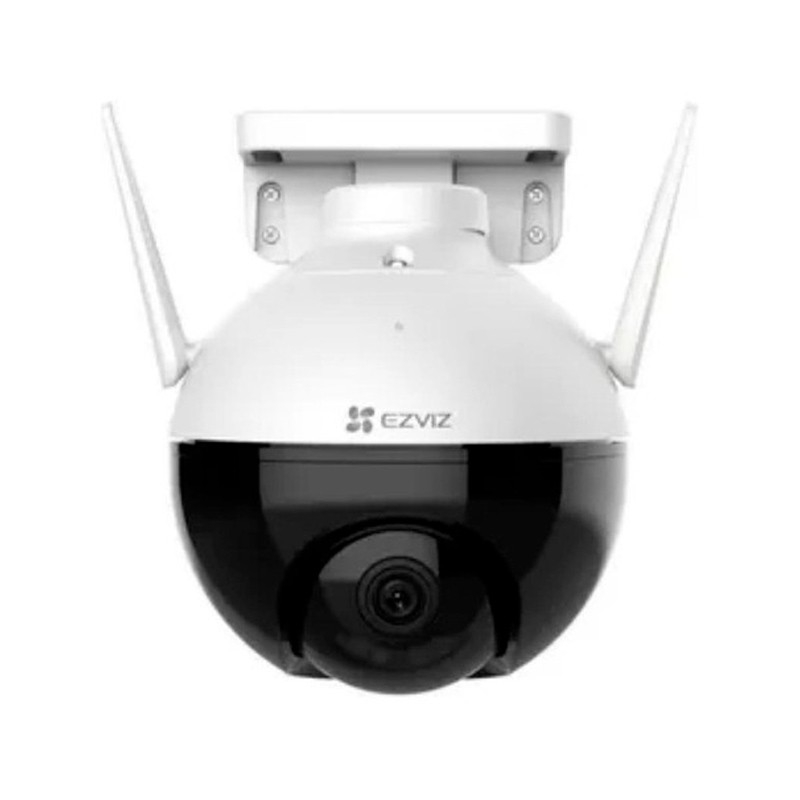

Your surroundings are covered with this outdoor pan/tilt camera. With a 352° horizontal rotation and 95° vertical rotation,the C8C gives you an easy overview of all that’s around you.And the EZVIZ App puts it all right on your smartphone or mobile device.
AI-powered person detection.
Smarter than ever! As an upgrade from simple motion detection, the embedded AI algorithm intelligently detects the motion of human shapes in real time. When people enter your customized detection area, you will be alerted immediately.
Three night vision modes are available to meet any need.
01 Full-color night vision.
Your night vision is now lit up and vividly restored to full-color thanks to two built-in spotlights and professional optical lenses.
02 Black-and-white night vision.
If you don't need extra lighting, just switch the camera to the black & white night vision via the EZVIZ App and still see 30 meters (100 ft.) away.
03 Smart night vision.
In this mode, the C8C will automatically switch from black-and-white monitoring to color monitoring, turning on the spotlights when it detects human movement. The alert video will be recorded in full-color, so you get all the details needed. Now that’s pretty smart!
Strobe light for enhanced protection.
Coming with two spotlights for active protection, the camera allows you to manually flash the light via the app or set it to flash upon detection of people passing by.
Elegant and durable design.
Say goodbye to bulkiness. This camera adopts a novel round and compact design with a simple black and white housing. It’s stylish enough to embellish your life but simple enough to look good anywhere.
What’s more, its weather proof design keeps it operating without being interrupted by any kind of weather – wind, rain, or snow.
Hear what’s happening.
The built-in noise-canceling microphone picks up clear audioand lets you hear and see what’s happening in your backyard wherever you are.
We protect your data and privacy.
Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
Two storage options.
With two storage options, you can choose where to save your recordings. The camera can even save to two locations at the same time for added backup in case the camera is damaged, or your network crashes.
Specifications
Specifications | |
---|---|
Model | CS-C8C (1080P) |
Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle:55° (Horizontal), 66° (Diagonal) |
PT Angle | Pan: 352°, Tilt: 95° |
Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
BLC | Supports |
Black & White Night | 30 m / 100 ft. |
Video & Audio | |
Max. Resolution | 1920 × 1080 |
Frame Rate | Max:30 fps; Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
Video Bit Rate | Full HD; Hi-Def; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 2 Mbps |
Network | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Wired Network | RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
Storage | |
Local Storage | MicroSD card slot (Max. 256G) |
Cloud Storage | EZVIZ Cloud Storage |
Function | |
Smart Alarm | AI Person Detection |
Customized Alert Area | Supports |
Audio | Supports mic |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
General | |
Operating Conditions | -30°C ~ 60°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
IP Grade | IP65 |
Power Supply | DC 12V / 1A |
Power Consumption | MAX. 6W |
Dimensions | 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) |
Packaging Dimensions | 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) |
Weight | 885 g (31.22 oz) |
Net Weight | 510 g (17.99 oz) |
In the box: | |
In the box: | C8C Camera 1.5-Meter Power Adapter Screw Kit Waterproof Kit Drill Template Regulatory Information Quick Start Guide |
Certifications: | |
Certifications: | UL / FCC / CE / WEEE / REACH/ ROHS |
