EZC3W3H4L28

EzViz

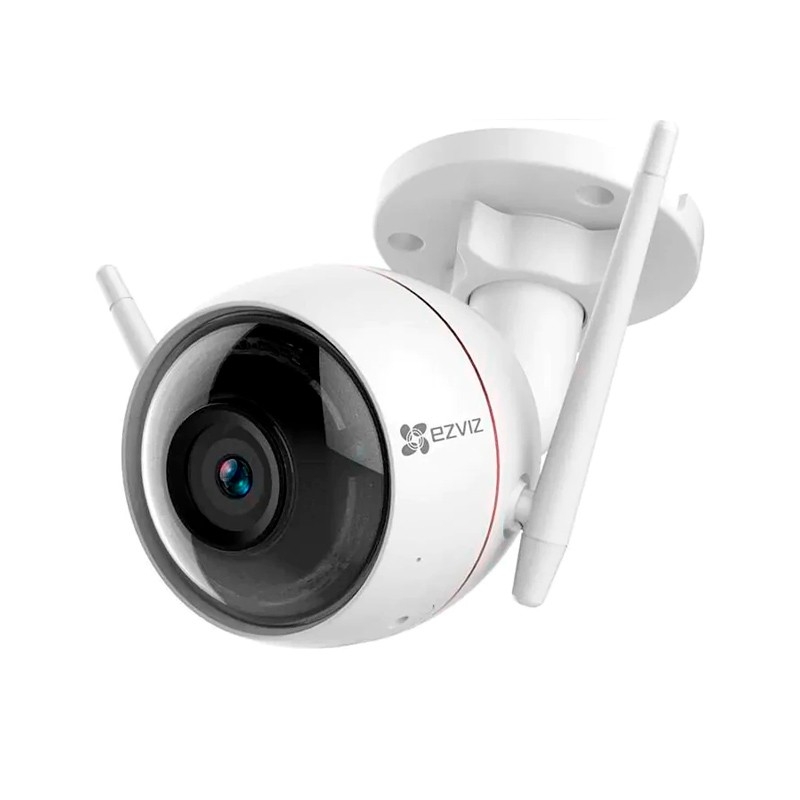

Ezviz C3W PRO 4MP - Smart Home Camera



Product Highlights
  • 4MP Streaming
  • Color Night Vision
  • H.265 Video Compression
  • AI-Powered Person Detection
  • Customizable Voice Alerts
  • Model#: EZC3W3H4L28

    Sku: IT3786



    MSRP: $115.70

    In Stock

    Your Price: $115.70






    MODEL: EZC3W3H4L28

    Superior details with higher resolution.

    Cover a larger area and see more details! This 4MP outdoor camera allows you to view videos and images in a higher resolution than 1080p, excellent for the yard or hallways.

    Full-color night vision like you've never seen before.

    Your night vision is now lit up and vividly restored to full-color thanks to two built-in spotlights and professional optical lenses. So advanced that you can quickly identify details of interest – like the color of the car passing by!

    It also lights your way home.

    The two spotlights are thoughtful. They not only make color imaging at night a reality but also offer outdoor lighting that you can turn on and off and even adjust their brightness as needed.

    Or, enable color vision when necessary.

    If you don't need extra lighting, just switch the camera to the black & white night vision via the EZVIZ App and still see 30 meters (98 ft.) far. A third night vision mode is unbelievably smart – it automatically turns on the spotlights upon detection of suspicious motion, so both notifications and remote look-ins will be in full-color.

    AI-powered person detection.

    As an upgrade from simple motion detection, the embedded AI algorithm intelligently detects the motion of human shapes in real-time. When people enter your customized detection area, you will be alerted immediately.

    DIY alerts.

    Along with default alert sounds, the camera also allows you to record three 10-second audio messages to either greet or deter visitors. Try something like, “Hello! Welcome!” Or perhaps, “Get away from my house!” It’s time to be creative!

    Guards at the gate.

    Designed to bring peace of mind, the C3W Color Night Vision camera comes with our proud Active Defense function. Upon detection of intruders, the camera will set off a loud siren and flash* two spotlights to scare them off.

    *The spotlights will not flash in the darkness when color night vision mode is enabled.

    Talk, as if you were there.

    Not every outdoor security camera supports two-way communication. The C3W Pro camera took this function to a new height with a high-fidelity speaker and a microphone that features an ultra-long pickup range, so you can hear loud and clear. Or talk as if you were there..

    Enhanced connection.

    Boasting wall-penetration and anti-interference capabilities, the dual-antenna C3W Pro camera handles long-range transmission easily. Enjoy the confidence to install the camera at the front gate or in your yard while maintaining a steady and reliable connection.

    Save money on storage and bandwidth.

    The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous H.264 video compression standard.

    Resists water and dust.

    With a whole metallic enclosure and an IP67 rating, the camera can withstand rainy, sunny, stormy, and even snowy days, giving you year-round peace of mind.

    Simple installation.

    The C3W Pro camera features a 360° swivel and base so that you can install it on your ceiling or wall securely. In just a few minutes, you have a sophisticated security system.

    We protect your data and privacy.

    Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.

    Specifications

    Model Parameters
    Model CS-C3W-A0-3H4WFRL
    Camera
    Image Sensor 1/2.7”Progressive Scan CMOS
    Minimum Illumination 0.01 lux @(F1.6, AGC ON), 0 lux with IR
    Shutter Speed Self-adaptive shutter
    Lens 2.8 mm @F1.6, view angle: 100° horizontal, 121° diagonal 4 mm @F1.6, view angle: 82° horizontal, 97° diagonal
    Lens Mount M12
    DNR 3D DNR
    WDR Digital WDR
    Compression
    Video Compression H.265 / H.264
    Video Bit Rate Quad HD; Full HD; HD; Standard. Adaptive bit rate.
    General
    Working Temperature -30 °C to 60 °C (22 °F to 140 °F)
    Working Humidity 95% or less (non-condensing)
    Power Supply DC 12 V / 1 A
    Power Consumption Max. 6 W
    IP Grade IP67
    Night Vision Distance (Black/White Night Vision Mode) Max. 30 m (98.43 ft.)
    Dimensions 72 mm × 72 mm × 150 mm (2.83” × 2.83” × 5.91”)
    Packaging Dimensions 252 mm × 110 mm × 92 mm (9.92” × 4.33” × 3.62”)
    Net Weight 395 g(0.87 lbs)
    Network
    User Defined Alarm Tones Supports
    Wi-Fi Pairing AP Pairing
    Protocol EZVIZ Cloud Proprietary Protocol
    Interface Protocol EZVIZ Cloud Proprietary Protocol
    General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
    Max. Bitrate 2M
    Wi-Fi
    Standard IEEE802.11b, 802.11g, 802.11n
    Frequency Range 2.4 GHz ~ 2.4835 GHz
    Channel Bandwidth Supports 20 MHz
    Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps
    Max. Resolution 2560 × 1440
    Frame Rate Max: 30 fps; Self-adaptive during network transmission
    Interface
    Storage MicroSD card slot (Max. 256 GB)
    Wired Network RJ45 × 1(10 M / 100 M Adaptive Ethernet Port)
    In the box
    In the box C3W Pro (4MP) Color Night Vision Camera ; Power Adapter (1.5 m) ; Mounting Template ; Screw Kit ; Waterproof Kit ; Quick Start Guide
    Certifications:
    Certifications: UL / FCC / CE / WEEE / REACH / RoHS

    Datasheet

    PDF File Ezviz C3W PRO 4MP - Smart Home Camera
