MODEL: EZC68C4WF

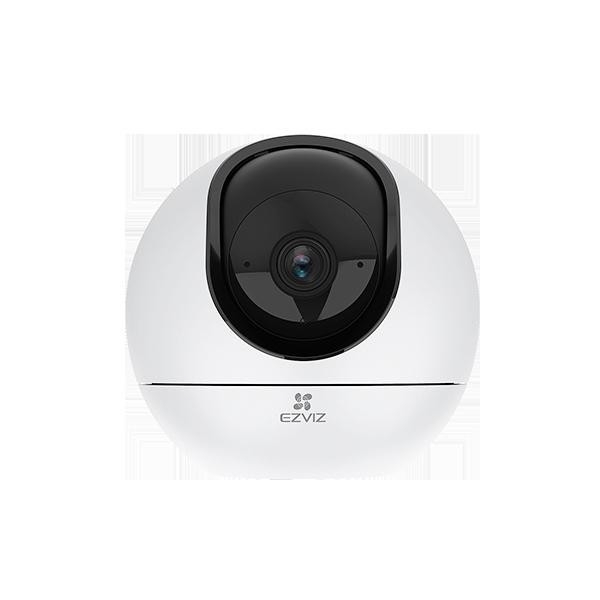

The C6 camera excels at seeing everything clearly and vividly. It renders every detail in sharp 2K+ resolution, effectively reduces image overexposures, and provides color imaging in extremely low-light conditions.
The camera can automatically zoom in up to 4 times to follow a moving object so you see details and get the whole picture at the same time. You can always enable the AI option to detect and track specifically human movements.
Away at work but do not want to miss an “aww” moment? You can receive mobile notifications whenever your pet is detected by the camera. Even when they are jumping and running, the C6 captures them clearly.
The camera alerts you if the noise level suddenly changes – whether your baby cries or a siren breaks out. Your family members can also simply wave at the camera to initiate a video call to your phone.
Communications are the basis of companionship, so we made the audio quality better than you’d expect.
Set up the camera network, either wired or wirelessly. You can connect the camera to either 2.4 or 5 GHz2 band to ensure a strong Wi-Fi signal.
Secure your unforgettable moments on a local microSD card of up to 256 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage and extra peace of mind.
Data security is the cornerstone of every product we design. Enjoy your private time anytime just by using the privacy shutter to cover the camera lens completely. Most importantly, you are the only one who can access and de-crypt your data.
Specifications | |
---|---|
Model | CS-C6-A0-8C4WF |
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4 mm @ F1.6, viewing angle: 79° (Horizontal), 42° (Vertical), 92°(Diagonal) |
PT Angle | Pan: 353° , Tilt: 133° |
Minimum Illumination | 0.1 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
3D DNR | WDR 80dB |
BLC | Supports |
Night Vision | 10 m |
Video & Audio | |
Max. Resolution | 2560 × 1440 |
Frame Rate | Max.25fps; Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 4Mbps |
Interface | |
Audio Input | Built-in high-sensitivity microphone |
Audio Output | Built-in high-power speaker |
Reset button | Yes |
Network | |
Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
Frequency Range | 2.4G:2400~2483.5MHz; 5G: 5170~5250MHz,5735 - 5835MHz |
Channel Bandwidth | Support 40MHz |
Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11n HT20 MCS7, 11n HT40 MCS7, 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
Storage | |
Local Storage | MicroSD card slot (Max. 256 GB) |
Cloud Storage | EZVIZ Cloud Storage |
Functions | |
Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection |
Customized Alert Area | Supports |
Two-Way Talk | Supports (Dual-Mic) |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
General | |
Operation Conditions | -30°C to 60°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |
Power Supply | DC 5V/2A |
Power Consumption | Max. 8W |
Product Dimensions | 100 × 100 × 96.5 mm(3.93 × 3.93 × 3.80 inch) |
Packaging Dimensions | 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch) |
Weight (With Package) | 641 g (22.61 oz) |
Net Weight | 325 g (11.46 oz) |
In the box | |
In the box | - EZVIZ C6 2K+ Camera |
- Base | |
- Power Cable | |
- Power Adapter | |
- Drill Template | |
- Screw Kit | |
- Quick Start Guide | |
- Regulatory Information | |
Certifications | |
Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
